2020 Ethiopia Gps Speed Limiter Highway 80 Speed Limit gSM/GPRS system

2020 Ethiopia Gps Speed Limiter Highway 80 Speed Limit GSM/GPRS System

1.

2020 Ethiopia Gps Speed Limiter Highway 80 Speed Limit GSM/GPRS System

2.

Application Field:

Fixed Speed Control
Customized fixed maximum top speed limit that increases the safety and fuel economy of your fleet.

Reverse Speed Control
Limits a vehicle's top speed in reverse. Limiting reverse top speed increases safety during a statistically high-risk category of operation.

Acceleration Control
Controls the rate at which the vehicle is able to accelerate. Inhibiting aggressive driving behaviors, increasing safety, and greatly improving fuel economy.

Upgradeable to ISA
Upgrade your VMS from fixed top speed limiting to variable top speed limiting at any time with our optional SpeedIQ kit. The upgrade offers even gOverride Mode
Configurable overrides by a variety of input methods. This capability is especially useful for Emergency Services and other who require access to full speed and acceleration at times


4. Installation:

1.) Installation steps:

This product is applicable for the widely used EFI vehicles and the old cable-drawing type oil injection vehicles .

For the old cable-drawing oil injection vehicles,we need add a actuator to realize the speed limit function. We connect the steel cable of the actuator to the vehicle throttle drawing cable from the opposite side, to form a counter force. When the vehicle is over speed, the the steel cable of the actuator will draw the vehicle throttle drawing cable from the opposite side, thus the throttle valve mouth will get smaller, to realize the compulsive speed limit function.

For EFI vehicle, the limiter will simulate the voltage value of the throttle sensor, when the vehicle is over speed, The limiter will give ECU a idle voltage value, ECU will control the throttle according to this voltage value. When the vehicle is over speed, The limiter will give ECU a idle voltage value, ECU will control the throttle according to this voltage value. When the vehicle is in normal driving state(not over speed), the throttle sensor will give ECU normal driving voltage, let the vehicle keeping normal driving.

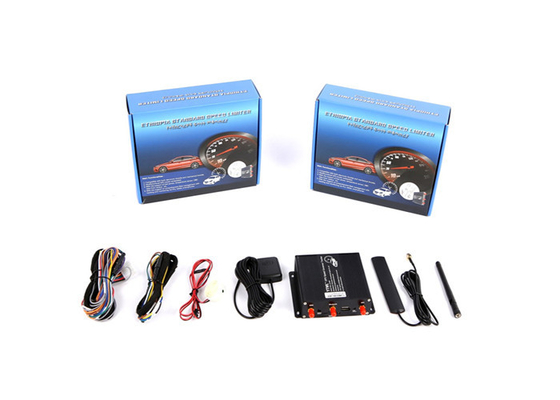

2.) Product Accessory:

①　Power wire

②　Executor wire

③　Extension wire

④　Speaker

⑤　GPS Antenna

⑥　GSM Antenna

⑦　SIM Card Slot

⑧　User Manual

Tamper-Proof Function:
The equipment is generally connected with 5 wires (positive wire, negative wire, ACC wire, speed signal wire and fuel pump power control wire), a GPS antenna and a GSM antenna.
A. The main power line is disconnected: enter the low speed driving mode (Limp mode), the speed limit is 30km / h by GPS
B. ACC is not powered: the speed limit function of the device does not work and the car cannot be driven
B. The ground wire is disconnected: the speed limit function of the device does not work and the car cannot be driven
D. The signal line is disconnected: enter the low speed driving mode (Limp mode), the speed limit is 30km / h by GPS
E. The output line is disconnected: the speed limit function of the device does not work and the car cannot be driven

Each device can be connected to 2 servers, one for agents and one for government. It is convenient for both parties to carry out vehicle supervision. Multiple permissions can be set.
