GPRS GSM 1000mAh 120KM/H Vehicle Speed Governor 1800Mhz

GPRS GSM 1000mAh 120KM/H Vehicle Speed Governor 1800Mhz
GPRS GSM 1000mAh 120KM/H Vehicle Speed Governor 1800Mhz GPRS GSM 1000mAh 120KM/H Vehicle Speed Governor 1800Mhz GPRS GSM 1000mAh 120KM/H Vehicle Speed Governor 1800Mhz GPRS GSM 1000mAh 120KM/H Vehicle Speed Governor 1800Mhz

Large Image :  GPRS GSM 1000mAh 120KM/H Vehicle Speed Governor 1800Mhz Get Best Price

Product Details:
Place of Origin: China
Brand Name: YITUOWULIAN
Certification: CE/ROHS/FCC/SGS
Model Number: CA-100F
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: 75-90
Packaging Details: Packed in carton box
Delivery Time: 2-10days
Payment Terms: L/C, Western Union, MoneyGram
Supply Ability: 10000
Detailed Product Description
Product Name: Gps Speed Limiter Function: Variable Speed Control
Network: GPS/GPRS/GSM Oversize: 10.5*8.3*3.1 CM
Net Weight: 0.24kg Voltage: DC 9V-36V
Certification: CE ROHS Operating Humidity: 20%-90%
Speed Limit Scope: 40-120KM/H Sound Buzzer: 5% Below
Frequency: 850/900/1800/1900Mhz
High Light:

GPRS Vehicle Speed Governor

,

GSM Vehicle Speed Governor

,

120KM/H Vehicle Speed Limiter

Ethiopia GSM/GPRS/Gps Speed Limiter/Vehicle Speed Governor ford/bus/truck speed limit 4



Supply and Installation of Speed Limiter with integrated GPS system on 200 units of vehicles
Reference: ITB/2020/13893
Beneficiary country(ies): Ethiopia
Registration level: Basic

Speed governor or speed limiter is a device designed to limit the speed of vehicle like truck, schools bus, car forklift and so on. Most of the speed governors are fitted because of the government regulations.

Description

Summary of Requirements

These items must be installed and tested on the respective Agency’s vehicles; and training on the operation and maintenance of the system (if applicable) must be provided to the staff of these organizations. The bidders/ potential suppliers need to be among the vendors/ suppliers Authorized by the Federal Transport Authority of Ethiopia to provide the supply and installation of the Speed Limiter.





Content Specs.
Dim. 117*92*31 (mm)
Weight 280g
Network GSM/GPRS/GPS
Band 850/900/1800/1900MHz
GPS chip U-blox
GSM/GPRS Module SIM800C
Bluetooth Module BT360I
CPU STM32F105RBT6
Power IC TD1509-ADJ
Anti-jamming Strengthened Anti-jamming
GPS sensitivity -159dBm
GPS accuracy 5 m
Time To First Fix

Reacquisition 0.1s

Cold status 45s

Warm status 35s

Hot status 1s

Work Voltage DC 9V-36V
Battery Rechargeable 3.7V / 1000mAh Li-ion battery (Customizable)
Standby work current < 40mA
Storage Temp. -40°C to +85°C
Operation Temp. -20°C to +70°C
Humidity 5%--95% non-condensing




1. Product Function:



Limiting Mode Limiting Function Introduction
Differentiate Road Section Intelligent Speed Limiting Limit the highest vehicle speed according to the current road speed limit value.Such as: if the current road speed limit value is 80 Km/h,the product can control the highest vehicle speed is within 0 ~ 80 Km/h. If the road limit value is 100 Km/h,the product can control the vehicle speed keep within 100 Km/h.
Differentiate Time Intelligent Speed Limiting Limit the highest vehicle speed according to different time period . Such as: if you set the highest driving speed as 50Km/h from 2.00-5:00, and 80Km/h for the other time period. So this product can control the vehicle highest speed as 50Km/h from 2.00-5:00, and 80Km/h for the other time period as your order.
Differentiate Vehicle Type Intelligent Speed Limiting

Limit the highest vehicle speed according to different vehicle type.
Such as: for high speed compact car ,limit within 120Km/h; for large vehicle, limit within 100Km/h; for dangerous goods transporter, limit within 60Km/h.

Differentiate Road Type Intelligent Speed Limiting

Limit the highest vehicle speed according to different road type.
Such as: on high-speed road, speed limit within 120 100Km/h; for fast road, speed limit within 100 Km/h, State Road 60Km/h, county road limit 50Km/h, this product according to road speed limit.

Fixed Highest Speed Limiting Can set only one or two highest driving speed value for the vehicle. Such as: According to the government regulations, some vehicle should not driving over 100Km/h(or any other appointed speed), the product can control the vehicle keep driving within 100Km/h(or any other appointed speed)
Note All the intelligent speed limit function need platform support, it means your platform must have a database contains the speed limit value of each road ,if not , we can only supply the fixed highest speed limiter for you, it means that we can only set one or two high speed limit vale in this product.

Other extension

functions

  1. Vehicle speed pulse detection;
  2. Intelligent ACC detection;
  3. One channel high input detection, one channel low input detection;
  4. One channel power-off control output, one channel oil-off control output;
  5. Three channels of analog input. One is used for fuel consumption data detection, another is used for the ordinary analog voltage detection, the third one is for standby;
  6. One channel RS232 defining interface;
  7. One channel RS232/RS458 compatible interface;

8) The (G-SENSOR) acceleration sensor interface reserved, can open for some customer need.

GPRS GSM 1000mAh 120KM/H Vehicle Speed Governor 1800Mhz 0

GPRS GSM 1000mAh 120KM/H Vehicle Speed Governor 1800Mhz 1GPRS GSM 1000mAh 120KM/H Vehicle Speed Governor 1800Mhz 2

2. Application Field:




Fixed Speed Control
Customized fixed maximum top speed limit that increases the safety and fuel economy of your fleet.

Reverse Speed Control
Limits a vehicle's top speed in reverse. Limiting reverse top speed increases safety during a statistically high-risk category of operation.

Acceleration Control
Controls the rate at which the vehicle is able to accelerate. Inhibiting aggressive driving behaviors, increasing safety, and greatly improving fuel economy.

Upgradeable to ISA
Upgrade your VMS from fixed top speed limiting to variable top speed limiting at any time with our optional SpeedIQ kit. The upgrade offers even goverride Mode
Configurable overrides by a variety of input methods. This capability is especially useful for Emergency Services and other who require access to full speed and acceleration at times.






Ethiopia GSM/GPRS/Gps Speed Limiter/Vehicle Speed Governor ford/bus/truck speed limit 4

GPRS GSM 1000mAh 120KM/H Vehicle Speed Governor 1800Mhz 3




3. Including

Fixed Speed Control
Reverse Speed Control
Acceleration Control
Variable Top Speed Control
Location Based Control
Over the Air Updates
Real Time Vehicle Tracking
Real Time Vehicle Health
Driver Behavior Analysis



Analysis of the content of tcp reply:

(TP121.201.110.106P7000DD000019171223244F0000S0014R0000ON30OFF60VJun 12 2020A:CMNET,p450,s80,c15, 0.360V, 0.720V,12.43V,a0,G00,-59 dbm)

TP121.201.110.106 P7000: IP and port

DD000019171223244: device ID number

F0000S0014: upload data fail 0 times, successful 14 times

R0000: memory data is 0

ON30OFF60: interval of acc on is 30 seconds, and acc off is 60 seconds

VJun 12 2020: firmware of the devices is JUN 12 2020

A:CMNET: the APN is CMNET

p450: Pulse coefficient is 450 (If the pulse coefficient is larger, the speed will be smaller)

s80: speed limiter max =80km/h

c15: For mechanical throttle, the time to disconnect the fuel line is 15 seconds

0.360V, 0.720V: Two throttle voltage values for electronic throttle vehicles

12.43V: vehicle voltage values

a0: a0 is acc off, a1 is acc on

G00: G00 means GPS not fixed, G10 means 10 satellites found

-59 dbm: GSM signal


4. Installation:

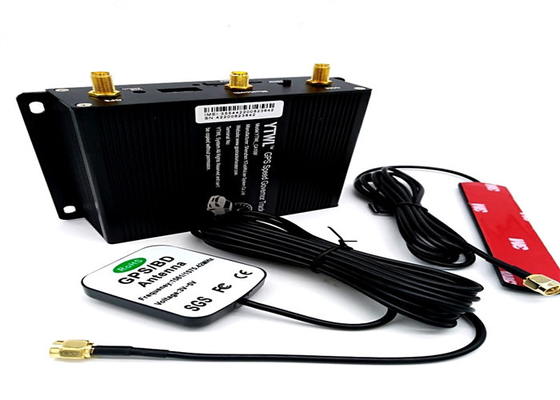

1) Product Accessory:

① Power wire

② Executor wire

③ Extension wire

④ Speaker

⑤ GPS Antenna

⑥ GSM Antenna

⑦ SIM Card Slot

⑧ User Manual



Following lines are indispensable in installation:

6: Brown line

8: Orange line, the line of the buzzer

9: Gray line, pick up the pulse line of the original car, connect the pulse line speed limiter, the speed limit function will not have too much delay, use GPS signal speed limit, there will be a delay of about 2 seconds

10: ACC line

11: Power ground

12: Positive power supply



GPRS GSM 1000mAh 120KM/H Vehicle Speed Governor 1800Mhz 4

GPRS GSM 1000mAh 120KM/H Vehicle Speed Governor 1800Mhz 5

5. ADD GPS device to the platform

  About platform



1. Load the GPS platform: www.gps-go.com

User:xxxx password:123456

Note: xxxx is the platform account, need to contact with salesman to get this account name and password

For APP, search gps-go in google store or download from this QR:

GPRS GSM 1000mAh 120KM/H Vehicle Speed Governor 1800Mhz 6

2. The platform functions and report



3. Track : you can see the real-time location of the vehicle



GPRS GSM 1000mAh 120KM/H Vehicle Speed Governor 1800Mhz 7



Technical specifications for Goods

· Speed Limiter Device with Integrated GPS: As per standard set by Ethiopian Standard Agency Standard Road Vehicle-GPS integrated Speed limiter Devices Requirements

· To provide Warranty for two years for any problem that arise due to the device internal problem but this doesn’t include for damage due to external force , extreme heat, fire or voltage of electricity or when the devise is opened by any other person other than the company’s technician

· Speed Limit Equipment competency Verification Certificate is approved by the Ethiopian Road Authority to supply and install Speed Limiter with integrated GPS system.

· Committed to comply with Human rights and labour issues (e.g. fundamental principles and rights at work, occupational health and safety, fairly traded goods, etc)



 After-sale service:

Warranty statement:

The specification are subject to modification without notice.

If the appearance and color of the product is changed, please take the actual product as the standard.

This warranty card is only applicable to the following listed IMEI/ID machine.

Please keep this warranty card, and please present this card and the original purchase receipts when repair service.

This is the basic certificate of warranty, please fill in this card carefully and keep it well.
