Product Details:
Payment & Shipping Terms:
|
| Product Name: | Portable Car GPS | Functions: | Real Time Tracking |
|---|---|---|---|
| APP: | Android App | GPS Chip: | Ublox Chip |
| GPS Accuracy: | 5m | Application: | Vehicle Anti - Theft |
| Work Voltage: | DC3.7-4.5V | Battery: | 15000Mah Rechargeable Li-ion Battery |
| Weight: | 0.450kg | LOCK: | SUPPORT |
| Network: | 3G/2G | ||
| Highlight: | portable gps tracking devices,portable gps locator |
||

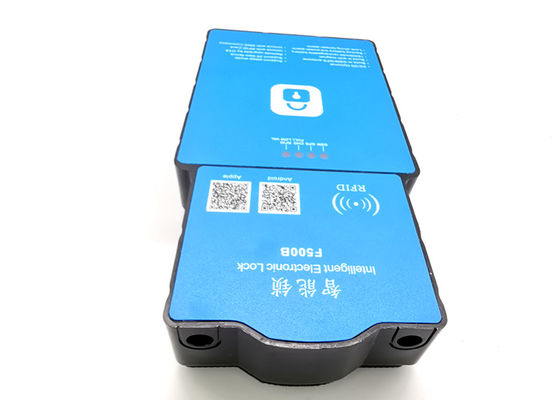

Container Lock Big Battery GPS Tracker With Super Magnet FB500 For Truck
Performance Parameters:
|
Content |
Specs. |
| Product Name | Portable GPS Tracker Device |
|
Dim. |
12(L) x 6.5(W) x 5(H)cm |
|
Weight |
450g |
|
Functions |
Real time Tracking |
|
Band |
900/1800/1900MHz |
|
GSM chip |
MTK Chip |
|
GPS sensitivity |
-159dBm |
|
GPS accuracy |
5 m |
|
Time To First Fix |
Reacquisition 0.1s |
|
Work Voltage |
DC4.1+/-0.1V |
|
Battery |
Chargeable changeable 3.7V / 15000 0Mah Li-ion battery |
| Standby | 180 days |
|
FRID Function |
yes |
Functional features:
Low battery alarm.
Overspeed alert:
1 Set up: Send SMS: “speed+password+space+080” to the unit (suppose the speed is 80km/h), and it will reply “speed ok!”. When the target moves exceeding 80 km/h, the unit will send SMS :”speed ALARM !+ Latitude and longitude” to the authorized numbers every 5 minutes.
2 Cancel: Send SMS “nospeed+password” to deactivate the overspeed alarm, tracker will reply “nospeed ok”.
Remark: The recommended speed should be not less than 50km/h. For below that rate, it will be effected the accuracy by gps signals drift etc.
2. Working Principle:
1). Load the goods, Authorize the ID cards, Swipe the card and lock the door with JT701
2). On the road: JT701 will upload the position to the server, you can monitor it in computer or mobile in real time
3). Desitination: Swipe the card to unlock JT701 (or unlock with password via SMS, unlock with command via software)
4). Reports: Who, When, Where unlocked, trace, can be checked at any time
5). Alarms: Low battery alarm, Sting cut alarm, card swiping, unlocking, wrong password SMS, vibration, geofence
| Item | Note |
| Size | 195mm x 114mm x 37mm |
| Weight | 700g( Include main unit, antenna, battery, shell) |
| Material | Engineer plastic |
| GPS Module | Ublox MAX-7Q |
| GSM module | Quectel M35 |
| Working temperature | -20°C -- +60°C |
| Store temperature | -40°C -- +80°C |
| Humidity | 5%-99% |
| Standard battery | Rechargeable battery 15000mAh |
| Average working current | <90 mA |
| Average current stand by | <100uA |
| Waterproof standard | IP67 |
| Transmission mode | Support TCP(GPRS) or SMS(message) |
Applications:
1. Bus/Police Car/Taxi
2. Container/cargo/asset tracking
GPS lock is robust lock together with GPS/GSM/3G and RFID technology, with build-in 6000mAh battery, it self powered to monitor all kinds of access point, special for cargo/asset/container/trailer and truck real-time tracking and monitoring.
|
Size
|
140mm*102mm*35mm
|
GPS Chip
|
U-Blox 7Q
|
|
Body
|
Aluminum alloy
|
Application
|
Cargo Container Security
|
|
Shackle
|
304 stainless steel
|
Certification
|
CE, RoHS,IP67
|
|
Power Input
|
DC 5V / 3A
|
Warranty
|
1 years
|
|
GPS Accuracy
|
5 m
|
Interval Time
|
Adjustable
|
|
GPS Start Time
|
32s(cold), 1S(hot)
|
MOQ
|
1 Unit
|
|
GPS Sensitivity
|
-160dbm
|
Battery
|
Samsung 6000mAh
|
|
GSM
|
850/950/1800/1900 MHZ
|
API/Protocol
|
Available
|
1.Robust lock, physical protection
2.Real-time tracking and remote locking
3.Real-time lock location and status
4.Alerts notify for break-in attempts
5. Feature rich on-line platform provides real time management, analysis reports, alerts, lock status
6. Easy install and use
Gurantee:
1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. Standard configuration
1) Portable GPS Device 1 pcs
2) Charger 1 pcs
3) USB cables 1 set
4) English Manual 1 set
5) Magnet
