Personal Small GPS Tracker For The Aged Old Man Old People Standby Time One Week

I'm Online Chat Now
Certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

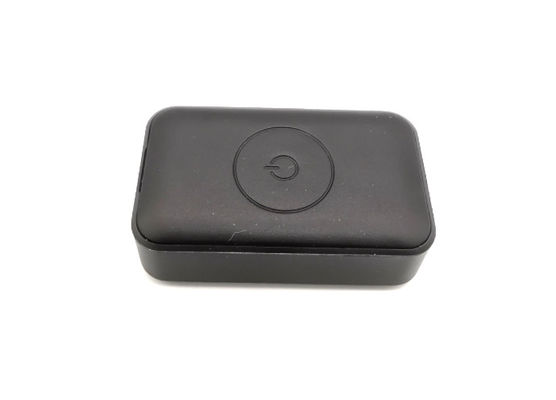

Personal Small GPS Tracker For The Aged Old Man Old People Standby Time One Week

Personal Small GPS Tracker For The Aged Old Man Old People Standby Time One Week
Personal Small GPS Tracker For The Aged Old Man Old People Standby Time One Week Personal Small GPS Tracker For The Aged Old Man Old People Standby Time One Week Personal Small GPS Tracker For The Aged Old Man Old People Standby Time One Week Personal Small GPS Tracker For The Aged Old Man Old People Standby Time One Week

Large Image :  Personal Small GPS Tracker For The Aged Old Man Old People Standby Time One Week Get Best Price

Product Details:
Place of Origin: China
Brand Name: caxtrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA-P2
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 10,000pcs per month
Detailed Product Description
Product Name: Personal GPS Tracker Network: 2G
Band: 700/1700/1900MHz@FDD LTE GPS Chip: U-Blox8
GPS Accuracy: 5meter Application: Child
Work Voltage: 3.7-4.5V Battery00M: 600 MAH
Color: Green Or Black Shell: Plastic
Vibration Sensor: Triaxial Vibration Sensor
High Light:

portable gps tracking devices

,

portable gps locator


Personal Small GPS Tracker For The Aged Old Man Old People Standby Time One Week

Performance Parameters:





Service platform: www.365gps.com

Android application: 365gps

iOS application: 365gps

Login ID: IMEI number

Default password: 123456

1,Preparation Before Use



1. Prepare a nano sim card which compatible 2G GSM network,

if a new SIM card, need 24 hours to activate properly; also need to set off the PIN code of the sim card

2. Open GPRS and Caller ID Display service of the sim card

3. Scan QR code on first page to download 365GPS APP



2,Power on



Insert the nano sim card into the tracker's sim card slot ( there is a missing angle alignment for sim card and the slot ), power button is the black button next to sim card slot.



Power On: long press for 3seconds

SOS: long press for 3seconds in power on mode

Power off: long press for 10seconds (with sim card)

Power off: long press for 3seconds (without sim card)



3,Account Login



There is a sticker with every device, 15digits numbers -- it's the IMEI number, just the Login ID. Open 365GPS APP:



Login ID: IMEI number

Password: 123456

Item Specifications
GPS Chip U-BLOX7
GPS Sensitivity -162dBm
Channel 56 Channel
Positioning Accuracy 10m
Hot start 1s on average
Warm start 15s on average
Cold start 30s on average
Working temperature -20°C to 55°C
Humidity 5%~95% non-concretion
Antenna Built-in 4G/GPS antenna
Sensor 3D acceleration sensor
LED 4G/GPS/Charge
SIM Card interface Standard SIM Card


MT510G 4G Personal Tracker

Personal 4G GPS Tracker MT510G-A With 4G Network For Old man Used In Canada

1.1.1 4G Indicator (Blue)

Status Description
Always ON No SIM card or no network (or SIM installed incorrectly)
Slow flash (5s/time) Working mode

1.1.2 GPS Indicator (GREEN)

Status Description
OFF GPS unavailable
Quick flash (1s/time) GPS available


1.1.3 Charge Indicator (YELLOW/RED)

Status Description
ON(Yellow) Under charging
OFF (Yellow) Fully charged
Slow flash(Red) Low battery


Personal Small GPS Tracker For The Aged Old Man Old People Standby Time One Week

1.1 SOS Alarm

Press SOS button for 3 seconds(vibrate twice),device will call the authorized numbers and then send location to authorized number and upload data to server,the state is: SOS.

1.2 Voice Monitor

Disable the monitor : 000+password
Example: 0000000
Reply: SET VOICE MONITOR:OFF.
Enable the monitor : 001+password
Example: 0010000
Reply: SET VOICE MONITOR:ON.
Note: Default is MONITOR OFF

1.3 Round Geo-fence

Command: 005+password+R+X
Example: 0050000R1.0
Reply:SET ROUND GEO-FENCE:ON
Note: X define[0.1-999.9]KM

1.3.1 Enable the Geo-fence

Command: 211+password
Example: 2110000
Reply: SET ROUND GEO-FENCE: ON.

1.3.2 Disable the Geo-fence

Command:210+password
Example:2100000
Reply:SET ROUND GEO-FENCE: OFF.

1.4 Square Geo-fence

Command:006+password+G1,IO/I/O,E/W longitude upper+N/S latitude upper,E/W longitude lower+N/S latitude lower.
Example: 0060000G1,IO,E114.04540N22.59034,E114.05978N22.59797
Reply: SET SQUARE GEO-FENCE1(IO)OK.

1.4.1 Enable the Geo-fence

Command: 311+password
Example: 3110000
Reply: SET SQUARE GEO-FENCE: ON.

1.4.2 Disable the Geo-fence

Command: 310+password
Example: 3100000
Reply: SET SQUARE GEO-FENCE: OFF.

1.5 Low battery Alarm

When the backup battery is low power,it will send SMS to authorized phone number and upload data to server, the state is:BLP.

1.6 Over-speed alarm

Command: #122#user password#X##
Example: #122#0000#100##
Reply: SET SPEED LIMIT:ON
Close command: #122#0000#0##
SET SPEED LIMIT:OFF.
Note: X is speed value, unit is KM/H definition is [0, 999].

1.7 Set time zone

Command: 896+password+ +/-HH:MM
Example: 8960000+08:00
Reply: SET TIME ZONE:+08:00

Note: The default is Greenwich time(UTC).

1.8 Set APN

Command 1: #803#user password#APN##
Example: #803#0000#CMNET##
Command 2: #803#password#APN#APN user name# APN password##
Example: #803#0000#CMNET#INTERNET#INTERNET##
Reply: SET GPRS APN OK.
Note: please contact your local mobile operator to get the correct APN.

1.9 Set Server IP and PORT

Command: #804#password#IP address(or domain) #port##
Example: #804#0000#112.95.164.248#7780##(or) #804#0000#e.trackits.com#7700##
Reply: SET SERVER IP AND PORT OK.

1.10 Set GPRS Upload Interval Time

Command: #805#password#interval time#X##
Example: #805#0000#10#1##
Reply: SET GPS PERIODIC UPLOAD ON.
Note: interval time define is[10,65535]seconds, X define is[0,1], If X=0,will stop upload and reply: SET GPS PERIODIC UPLOAD OFF.

1.11 Power Saving Mode

Enable power save mode : 100+password
Example: 1000000
Reply: SET POWER SAVE MODE:ON.
Disable power save mode :101+password
Example:1010000
Reply:SET POWER SAVE MODE:OFF.
Note: Default is OFF

1. Overview

This device is the latest 4G personal tracking device support 4G LTE network. It can locate and monitor any remote targets by SMS/PC/APP.
The unit features excellent and stable work performance.It used for personal,vehicle and pets.

Gurantee:

1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not  be returned.
 Personal 4G GPS Tracker MT510G-A With 4G Network For Old man Used In Canada

Product Configuration:
1. Standard configuration

1)    main device             1 pcs
2)    charger                    1 pcs
3)    Installation cables    1 set
4)    Usage instructions
5)    Warranty card
6)    Certification

Personal Small GPS Tracker For The Aged Old Man Old People Standby Time One Week
