Mobile DVR 4 Channel SW-0002 SD Card Bus Auto DVR Camera System

Mobile DVR 4 Channel SW-0002 SD Card Bus Auto DVR Camera System

SW-0002 Performance Parameters:

SW-0002 Introduction

Ø Vehicle Mobile DVR when power failure occurs,even can for 10-15s.

Ø Flame out Time-lapse Video Recording Function ( Highest support long delay time 24 hours.)

Ø Auto Recording,Time Recording,Alarming Recording Modes for Different Request.

Ø Display vehicle traffic status, Vehicle numbers ,Route, Super-low speed vehicle Information, Convenient management.

Ø Support GPS/BD,G-sensor Modules Extension.

Ø 3channels RS232 +2channel RS485.

Ø Vehicle Mobile DVR Superior network function, can configure menu through IE, support mobile SMS to configure parameters and obtain device information.

Ø Support Video&Audio monitoring,2-way Intercom, PTZ control, manually Alarm,Overspeed,Geo Fence etc through remote control platform

Ø 8CH alarm inputs (Doors, lights, steering, braking, reversing and all types can be configured), Can support kinds of response linkages.

Ø 2CH alarm output, Support the linkage acousto-optic alarm, cut off fuel oil/power,etc .

Ø Support Local Auto-photo when alarm input,device pictures preview function;

Ø All Aviation plugs, Super stable, High Anti-shock,Easy installation Plug in and out.

Ø Vehicle Mobile DVR Unique WINDOWS 8 interface, Easily Smart GUI Interface, Fluent system interface is intuitive and perfect.

Ø Support SD card Remote Software Upgrade/OTA remote upgrade automatically, partition backup technology upgrade don't crash.

Ø Can be batch functional customization according to customer's requirements;

Ø Dimension and Weight Dimension : 112(W) x36(H) x138(D) mm , Weight: 360g

SW-0002 Functional Features:

1. HIS Solution,H.264 Compression, Multiple stream recording, support 4CH 720P AHD input/ 4CH analog standard difinition Camera input/2CH HD + 2CH SD mixed input;
2.  High quality real time recording, 720P/CIF/HD1/D1 Optional, quality adjustable;
3. Professional Car Power Design,8-36V wide voltage,Provide reverse voltage/overload/short circuit protection, to meet kinds of car application;
4. Support 12VDC/3Amp output voltage,power supply for Camera/Screen etc;
5.  Max 2TB HDD + 128GB SD Card Mirror Recording,protect DVR from shock & Dust damage;
6. HDD  Mobile DVR Watchdog abnormal restart function,protect SD Card and Record;
7. HDD  Mobile DVR Exclusive pre-allocate DVR Special File System Technology,Solving repeatedly wipe cause file fragmentation, and ensure the integrity of the data.
8. HDD  Mobile DVR ACC Delay off,can set 24 hours;
9. HDD  Mobile DVR Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 10-15s.
10. Auto Record/Manual Record/Alarm Record etc working mode to meet different requirements;
11. Show Car status/Plate/Driving Route/Low Speed/Over Speed information for convenient management;
12. Support GPS/BD,3G/4G Module Optional,WIFI extend;
13. Strong Network,device configure via IE Web,Support SMS Get device information and configure;
14. Support Monitoring,Intercom, PTZ, Alarm,Overspeed,Geo Fence etc through remote control platform;
15. 8CH Alarm input(Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm;
16. 2CH Alarm Output,Support Light and Sound alarm sensor,Oil/Power cut off;
17.  High level aviation interface,easily installation and better shockproof, more stable;
18. Support Local Auto-photo when alarm input.
19. Easily Smart GUI Interface, saving time in device setting;
20. Strong Stable Application,Support 3G/4G Realtime monitor, talkback,playback,record,picture snap etc;
21. Updated through SD or OTA Remote Automatic updating,more stable and convenient;
22. Support Phone Remote Monitor,3G Phone Calling etc;
23. Support PTZ/POS/Oil Sensor/LED Advertisement Panel etc;
24. Support Ministry of Transport Standard Agreement
25. Be Customized according your request;

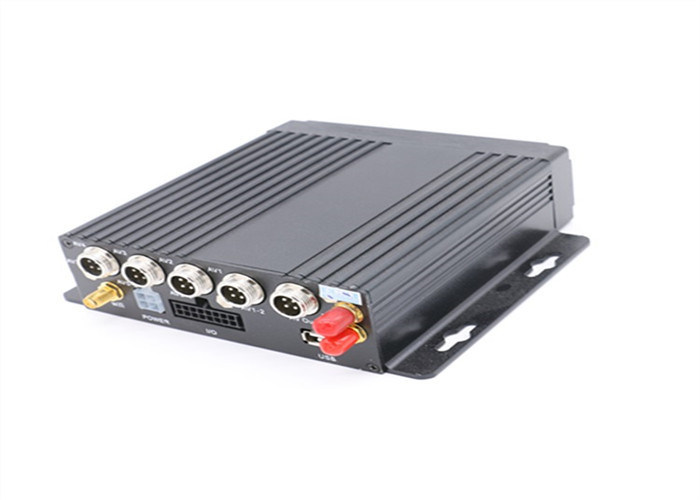

SW-0002 Detail Pictures:

SW-0002 Applications:

1. Vehicle,Truck,Bus,School Bus,etc.
2. Real-time video  monitoring.
3. GPS tracking.
4. Assets Tracking.
5. Fleet Management.

SW-0002

Gurantee:

1. All of our product is free to use the Tracking service server in 24 hours each day

2. All of our product there is a 2 year quanlity assurance.

3. Sample fee will not  be returned.

SW-0002 Product Configuration:

    1. Standard configuration

1. Device host       1pcs;
2. Power  Cables    1pcs;
3. I/O Cables        1pcs;
4. AV Cables         1pcs;
5. Remote control     1pcs;
6.  3G/4G  Antenna   1pcs;
7.  GPS Antenna       1pcs;
8. CD( User manual)   1pcs;

    2. Optional configuration:

1. camera
2. lcd display
3. SD card
4. hard disc
5. fuel sensor
6. temperature sensor  etc..
