Product Details:
Payment & Shipping Terms:
|
Product Name: | Mini Car GPS Tracking System | GPS Accuracy: | 10M |
---|---|---|---|
Feature 1: | Remote Cut Off Engine | Feature 2: | Support ACC Ignition Alert |
Protocol: | GT02 Protocol | Work Voltage: | DC9.5 To DC39.9V |
Dim.: | 90*45*13.8mm(L*W*H) | Weight: | 40g |
GPS Sensitivity: | -159dBm | ||
High Light: | automobile gps tracker,automotive gps tracker |

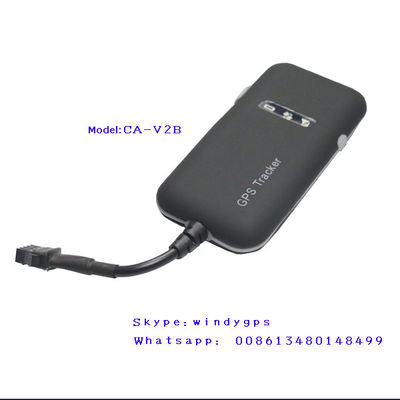

Mini Car GPS Tracker , mobile gps tracking device Support Remote Cut Off Engine
Performance Parameters:
Content |
Specs. |
Product Name | Car GPS Tracker |
Dim. |
90*45*13.8mm(L*W*H) |
Application | Vehicle,Truck, Car |
Weight |
40g |
Protocol | GT02 Protocol |
Network |
GSM/GPRS/2G GPS |
Band |
900/1800Mhz/850/1900MhZ |
GPS chip |
MTK Chip |
GPS sensitivity |
-159dBm |
GPS accuracy |
High Accuracy |
voltage input |
9.5-39.9DCV |
Working currency |
20mA/12V |
Storage Temp. |
-40°C to +85°C |
Functions2 | Remote cut off engine |
Operation Temp. |
-20°C to +70°C |
Humidity |
20%--80% RH |
Feature Description:
Detail Pictures:
Method of Installation
1.1 Open the packing box to check whether the type of device is correct and whether the accessories are included, or else please contact your distributor.
1.2 Choose SIM card: each device needs to insert a GSM SIM card.
Please refer to the distributor’s suggestions to choose the SIM card.
1.3 Installing SIM card.
LED Indicator:
1 Red Led-( Power status indicator)
Led Status |
Meaning |
Quick Flashing |
Working normally (working by backup car battery) |
Slow Flashing |
Working normally (working under battery of device) the device will change to work by own battery while backup battery had been cut down. And it will alarm. |
bright status: |
Device Error |
2 Blue Led Light-( GSM status indicator)
Led Status |
Meaning |
Quick Flashing |
Working normally, Uploading GPRS data to platform server. |
Slow Flashing |
Working normally, Receive GSM signal normally |
Continuously in bright status |
No GSM signal |
3.3 Green Led Light – (GPS status Indicator)
Led Status |
Meaning |
Flashing |
Working normally. GPS located. |
Continuously in bright state |
Searching GPS signal |
Device wiring diagram:
Applications :
4s shop , car company , truck company , motorcycle company, exclusive agency, chain shops , large-scale sales , car repair shop,taxi company .
Gurantee:
1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. Standard configuration
2. Optional accessories
1. Relay DC12V
2. Rechargeable Li-ion Battery(Built-in)
