Product Details:
Payment & Shipping Terms:
|
| Product Name: | Car GPS Tracker | Function1: | Control Entine On Or Off |
|---|---|---|---|
| Function2: | Power Off Alarm | Network: | GSM GPRS GPS |
| GPS Chip: | Ublox Chip | Application: | Vehicle Car Truck |
| Work Voltage: | 9.5-40VDC | Dim.: | 95*45*13.8mm |
| GSM Chip: | MTK | GPS Sensitivity: | -159dBm |
| Work Current: | 20mA/DC12V | Functions3: | Blind Area Repay |
| Color: | Black | ||
| High Light: | automobile gps tracker,automotive gps tracker |
||

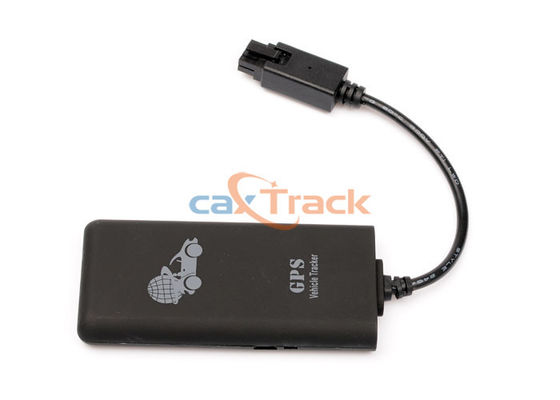

Mobile Phone App And SOS Alert Car GPS Tracker With Built In Battery
Performance Parameters:
|
Content |
Specs. |
| Product Name | Car GPS Tracker |
| Functions1 | Control Engine On Or Off |
|
Dim. |
95*45*13.8mm |
| GPS Chip | Ublox chip |
|
Weight |
56g |
|
Network |
GSM GPRS GPS |
| Monitor | Voice monitor and history track Real Time Tracking |
|
Band |
850/900/1800/1900Mhz or 900/1800Mhz |
|
GSM Chip |
MTK Chip |
|
GPS sensitivity |
-159dBm |
|
GPS accuracy |
5-30m |
|
voltage input |
9.5－40VDC |
|
Working currency |
20mA/12V |
|
Storage Temp. |
-40°C to +85°C |
|
Operation Temp. |
-20°C to +70°C |
| Functions2 | Remote cut off engine |
|
Humidity |
20%--80% RH |
Functional features:
Indicating Led Light:
Red Led-( Power status indicator)
|
Led Status |
Meaning |
|
Quick Flashing |
Working normally (working by backup car battery) |
|
Slow Flashing |
Working normally (working under battery of device) the device will change to work by own battery while backup battery had been cut down. And it will alarm. |
|
Continuously in dark or bright status: |
Device Error |
Blue Led Light-( GSM status indicator)
|
Led Status |
Meaning |
|
Quick Flashing |
Working normally, Uploading GPRS data to platform server. |
|
Slow Flashing |
Working normally, Receive GSM signal normally |
|
Continuously in bright status |
No GSM signal |
|
Continuously in Dark status |
Device Error |
Green Led Light – (GPS status Indicator):
|
Led Status |
Meaning |
|
Flashing |
Working normally. GPS located. |
|
Continuously in bright state |
Searching GPS signal |
|
Continuously in dark state |
Device Error |
Installation Diagram:
Applications :
4s shop , car company , truck company , motorcycle company , GPS producer , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , car repair shop,taxi company .
Gurantee:
1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.

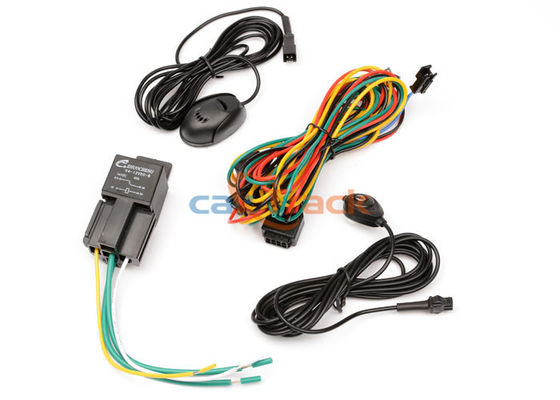

Product Configuration:
1. Standard configuration
2. Optional accessories
1. Relay
2. SOS Button
3. Microphone
