Integrated Ultrasonic Fuel Sensor Can Monitor The Fuel Level Of The Tank


1. Product Introduction
Ultrasonic fuel level sensor is a vehicle fuel monitoring device which is designed for the fuel management needs of company fleet. This sensor can be used to prevent the driver to steal fuel,optimize the operating costs,optimize the driver’s driving behavior and auxiliary statistical decision, etc. The sensor is equipped with a high precision ultrasonic probe, which can detect the fuel quantity in the fuel tank. Fuel quantity data will be sent to the server via GPS tracker,then generate the data report. Sensor support for serial and analog output, so, it can easily docking with other system.

2. Parts List

2.1 Standard parts list

3 Technical parameters

3.2 Power on

• Red wire (V+) / Black wire (V-)
• Input voltage is between DC 9V~36V. Sensor can be connected to the 12V or 24V car battary directly.
• Sensor has no built-in battery.

3.3 Interface introduction

3.4 Digital outputs and Analog outputs

• When using the RS232 serial port to connect GPS trackers and sensors,connect up the sensor's yellow wire to tracker's Rx port, connect up the sensor's blue wire to the tracker's Tx port, connect up the sensor's black wire to tracker's Ground port.
• Connect the sensor's serial port to computer, watch over the output data through serial port debug tool.

3.6 Couplant Introduction

4. Features of Product and Application range

4.1 Advantage of Ultrasonic fuel level sensor

1.High accuracy.

Resolution of sensor’s measurement for fuel height is 0.1mm.And its measurement accuracy is ±0.5%. It keeps higher accuracy even in highest or coldest outside environment.

2.Excellent stability.

Being different from direct-contact measurement like float-type,pressure-type,magnetic sliding-type, untrasonic fuel level sensor adopts non-contact measurement, which can avoid pollution and corrosion from fuel and keep stability in a long period of time.

3.Easy installment and maintenance.

You only need to install the sensor probe on lower surface of fuel tank. You don’t need to change its original measurement system or punch hole for it. Its original fuel meter operates as usual.

4.No pollution and lower consumption.

This non-contact measurement and non-punch hole for fuel tank can keep off pollution from fuel.




APPLICATION:



       This sensor is applicable to various types of vehicles such as trailers, taxis, buses, concrete mixer truck, engineering machinery, sanitation trucks and other.

Gurantee:

1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not  be returned.

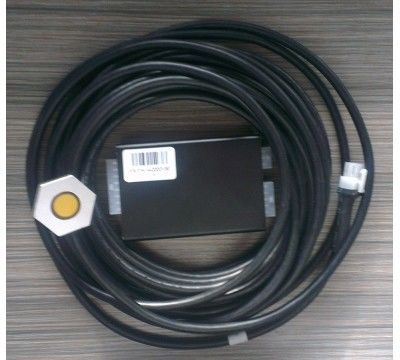

Product Configuration:

1. Standard configuration
1)    main device             1 pcs
2)    power line                1 pcs
3)    sensor
5)    Installation cables    1 set
6)    Usage instructions
7)    Warranty card
