Product Details:
Payment & Shipping Terms:
|
| Product Name: | Car GPS Tracker | Functions1: | GT06 Protocol |
|---|---|---|---|
| Functions2: | With Built In Battery | Working Currency: | 20mA / 12V |
| GSM Chip: | MTK Chip | Application: | GPS Track Solution |
| Work Voltage: | 9.5-39.9VDC | Dim.: | 90*45*13.8mm |
| Weight: | 40g | GPS Sensitivity: | -159dBm |
| GPS Chip: | MTK Chip | Network: | 2G GSM |
| High Light: | car gps locator,automotive gps tracker |
||

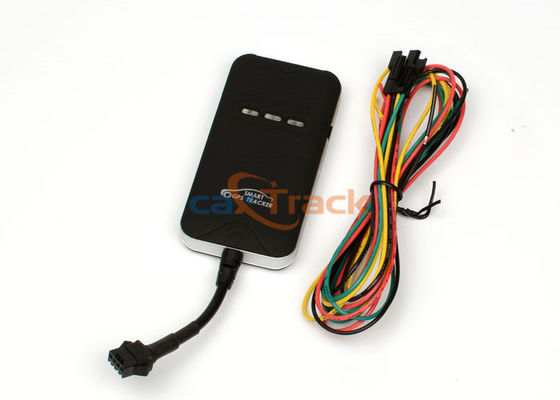

GT06 Protocol Small GPS Track Solution Product With Built In Battery
Performance Parameters:
|
Content |
Specs. |
| Production Name | Mini Car Tracker |
|
Functions1 |
GT06 Protocol |
|
Functions2 |
Real Time Tracking |
|
GSM Chip |
MTK Chip |
|
Band |
850/900/1800/1900Mhz |
|
GPS chip |
MTK Chip |
|
GPS sensitivity |
-159dBm |
|
GPS accuracy |
5-30m |
|
voltage input |
9.5－39.9V input |
|
Working currency |
20mA/12V |
|
Storage Temp. |
-40°C to +85°C |
|
Operation Temp. |
-20°C to +70°C |
|
Humidity |
20%--80% RH |
| Weight | 40g |
| Network | 2G GSM Network |
| Dim. | 90*45*13.8mm |
Description:
Message Command:
|
No |
Features |
Message sent |
Replies |
Remarks |
|
1 |
Add administrator No 1 |
#Password#AAD#1#Cell No# |
ADD admin account 1 ok! |
For example:#6666#AAD#1#13554809219# |
|
2 |
Add administrator No 2 |
#Password#AAD#2#Cell No# |
ADD admin account 2 ok! |
|
|
3 |
Delete Administrator No 1 |
#Password#DAD#1# |
Delete admin account 1 OK! |
For example: #6666#DAD#1# #6666#DAD#2# |
|
4 |
Delete Administrator No 2 |
#Password#DAD#2# |
Delete admin account 2 OK! |
|
|
12 |
View Administrator & Authorized officer numbers |
#Password#VA# |
Display 2 administrators number and 3 authorized numbers |
For example:#6666#VA# |
|
13 |
Setting password |
#Password#CP#new password# |
change password ok! |
For example:#6666#CP#1234#,New password is 1234 |
|
14 |
Restore password |
#Password#RP# |
reset password OK! |
For example:#6666#RP# Restore password to factory standard. |
|
15 |
Getting Location of longitude and latitude |
#Password#GL# |
Reply with google links of longitude and latitude |
For example:#6666#GL#, will get the current longitude and latitude of device. |
Applications :
4S shop , car company , truck company , motorcycle company , GPS producer , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , car repair shop,taxi company .
Gurantee:
1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. Standard configuration
2. Optional accessories
1. Relay DC 12V
2. Li-Battery(Built-in)
