Product Details:
Payment & Shipping Terms:
|
| Product Name: | GPS Mobile DVR | Network: | WCDMA, CDMA2000, TDD-LTE, FDD-LTE |
|---|---|---|---|
| Work Voltage: | 8-36V | Work Temperature: | -20℃~+70℃ |
| Video Compression: | H.264 | Resolution: | 720P/D1/HD1/CIF, MAX:4 Channels 720P |
| GPS Sensitivity: | -161dBm | GPS Accuracy: | 5m |
| Weight: | 0.75 | Dim.: | 112(W)x36(H) X138(D) |
| High Light: | mobile dvr with gps tracking,mobile dvr with gps |
||

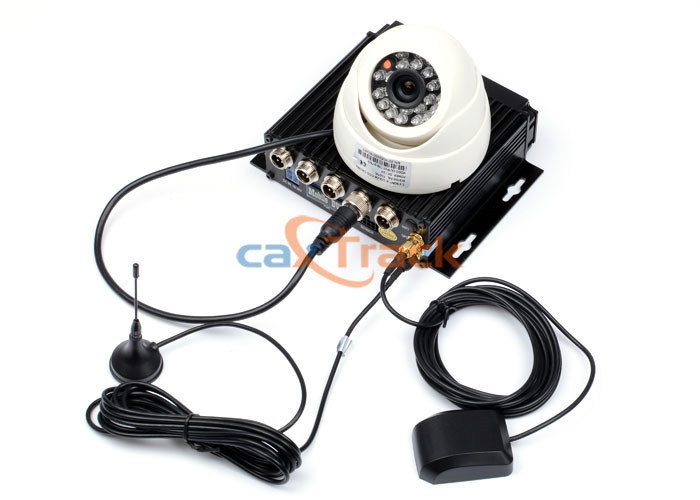

HHD Mobile DVR With GPS Tracking For Bus , Hard Disk Video Recorder
Performance Parameters:
|
Item |
Parameter |
|
|
OS |
Linux |
|
|
Language |
Chinese/English/Customized |
|
|
Video Compression |
H.264 |
|
|
OSD |
Overlays information such as date time and vehicle ID |
|
|
GUI |
Graphical User Interface |
Setup system parameters with the remote control. |
|
Video Record System |
Video Input |
4CH 720P AHD input/SD input/mixed video input,aviation connector, 1.0Vp-p, 75Ω |
|
Video Output |
1CH CVBS+1CH VGA output, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen |
|
|
Preview |
Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview |
|
|
Resolution |
720P/D1/HD1/CIF, MAX:4 channels 720P |
|
|
Video Quality |
0-7 levels, 0 is the highest level. |
|
|
Video Standard |
PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; D1: 800Kbps ~ 3Mbps, 8 level video quality optional; 720P: 4Mbps-6Mbps, multi level video quality optional |
|
|
Record Mode |
The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. |
|
|
Audio |
Audio Input |
4CH ,Aviation Plug |
|
Audio Output |
1CH,Aviation Plug |
|
|
Compression |
G.726 compression, 8KB/s speed |
|
|
Alarm Input |
4Ch Alarm Input, kinds of alarm linkage support |
|
|
Alarm Output |
1CH Alarm Output |
|
|
Communication interface |
1CH RS232 or 1CH RS485 for optional |
|
|
Position |
Support Built GPS/BD Module, built in G-sensor, can repaly and analyse vehicle driven route. |
|
|
wireless transmission |
Suppport Built-in 3G/4G wireless transmission function, WCDMA, CDMA2000, TDD-LTE, FDD-LTE....
|
|
|
Motion Detection |
Support motion detection alarm. (Can set the video recording duration time after alarm on platform.) |
|
|
G-Sensor |
Support G-sensor |
|
|
Storage |
SD |
Dual SD Card,each max 128GB SD Card loop recording |
|
Upgrade |
Support SD Card remote updating |
|
|
File Format |
.264 |
|
|
File System |
Special FAT32 File System |
|
|
Video Playback |
Video Search |
Search By Record Time/Record Type etc |
|
Playback |
Max support 4CH Replay /Stop/Fast/Slow at same time |
|
|
Support forward and backward play at the speed of: x 2,x4,x8,x16. |
||
|
Voltage & Power |
Power Management |
Wide Voltage.Support Timed/Delay off |
|
Voltage Input |
DC:+8V ~ +36V |
|
|
Voltage Output |
+12V@2.5A,+5V@2.5A |
|
|
Power Consumption |
Normal Working ＜14W , Stand-by status < 0.5W |
|
|
Working Environment |
Temperature |
-20℃ to +70℃ |
|
Humidity |
20% to 80% |
|
|
Security |
Password |
User/Admin 2 Level Different Password |
|
others |
Size |
112(W) x36(H) x138(D) mm |
|
Net Weight |
360g |
|
Functional features:
Detail Pictures:
Applications:
Gurantee:
1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
