Home ProductsMotorcycle GPS Tracker

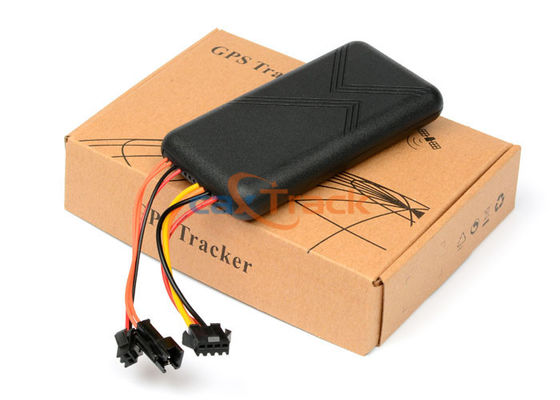

Built - In Antenna Motorcycle GPS Tracker

I'm Online Chat Now
Certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

Built - In Antenna Motorcycle GPS Tracker

Built - In Antenna Motorcycle GPS Tracker
Built - In Antenna Motorcycle GPS Tracker Built - In Antenna Motorcycle GPS Tracker

Large Image :  Built - In Antenna Motorcycle GPS Tracker Get Best Price

Product Details:
Place of Origin: China
Brand Name: caxtrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA-V6
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 100,000pcs per month
Detailed Product Description
Product Name: Motorcycle GPS Tracker Network: GSM/GPRS
Band: 850/900/1800/1900MHz Working Currency: 20mA / 12V
GPS Accuracy: 5 Ant.: Built-in Antenna
Work Voltage: 9-80V Dim.: 90*45*13.8
GPS Sensitivity: -159dBm GPRS Chip: MTK6261
Material: Plastic Color: Black
Battery: 200Mah Built-in Weight: 0.18kg
Power Line: 4 Lines
High Light:

gps motorcycle tracker

,

motorbike gps tracker



9-75V Motorcycle GPS Tracker With Built-in Antenna SOS Mic Relay ACC





Performance Parameters:



Content

Specs.

Dim.

94mm x 45mm x 14mm

Weight

85g

Network

GSM/GPRS

Band

850/900/1800/1900Mhz

GPS chip

UBLOX

GPS sensitivity

-159dBm

GPS accuracy

5m

Time To First Fix

Cold status  35-80s

Warm status  35s

 Hot status  1s

voltage input

9-80V  input



Battery

Build-in 3.7V 200mAh Li-ion battery

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +55°C

Humidity

5%--95% non-condensing





Description:



  1.  Motorcycle GPS Tracker GSM four frequency(GSM850/900/1800/1900MHZ) system global general;
  2.  Motorcycle GPS Tracker  built-in switching power supply, exceed wide voltage input range: 9-80 VDC;
  3.  Motorcycle GPS Tracker  GPS continuous GPS positioning, GPRS report regularly;
  4.  Motorcycle GPS Tracker  Support SMS message to check the location info;
  5. GPS Tracker  Device built-in vibration sensor, realization vehicle anti-theft intelligently;
  6. ACC the ignition signal detection,vehicle status prompted;
  7. can be set up a hotline number for SOS call the police and security alarm; (optional)
  8. can connect external SOS alarm button for emergency calls for help(optional)
  9. can connect external microphone, to realize the remote voice surveillance function;



Detail Pictures:

Built - In Antenna Motorcycle GPS Tracker 0

Built - In Antenna Motorcycle GPS Tracker 1



Applications :



1. Global positioning

2. Real-time monitoring

3. Vehicle locating

4. Timing tracking

5. Cutting off power and circuit by remote control

6. Vehicle rental / Fleet management etc





Gurantee:



1. All of our product is free to use the Tracking service server in 24 hours each day

2. All of our product there is a 2 year quanlity assurance.

3. Sample fee will not  be returned.





Product Configuration:



1. Standard configuration



1  power 4P line 1pc (standard accessory)
2  device 1 set
3  User manual 1pc (standard accessory)


2. Optional configurations


1  Accessories (relay) for cut fuel/circuit
2  MIC 1pc (optional accessory)
3  SOS Alarm button (optional accessory)
