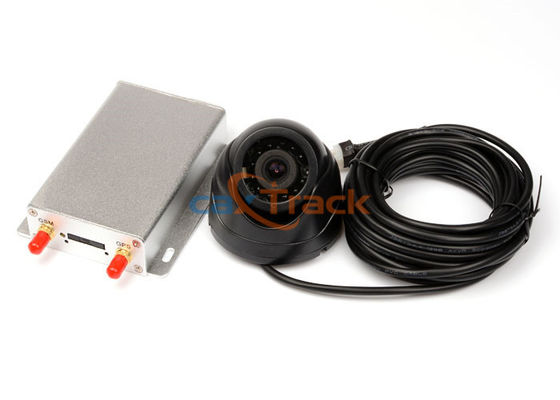

Full Function OEM E-bike GPS Tracker Support Camera / LED Display

Full Function OEM E-bike GPS Tracker Support  Camera / LED Display
Full Function OEM E-bike GPS Tracker Support  Camera / LED Display Full Function OEM E-bike GPS Tracker Support  Camera / LED Display

Large Image :  Full Function OEM E-bike GPS Tracker Support Camera / LED Display Get Best Price

Product Details:
Place of Origin: China
Brand Name: caxtrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA-V7
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 100,000pcs per month
Detailed Product Description
Product Name: E-bike GPS Tracker Network: GSM/GPRS
Band: 850/900/1800/1900MHz GPS Chip: U-blox
GPS Accuracy: 5m Application: Vehicle
Work Voltage: 9-36V Dim.: 95*75*25mm
GSM Chip: SIM800 GPS Sensitivity: -159dBm
Humidity: 5%--95% Non-condensing Operation Temp.: -20°C To +70°C
Storage Temp.: -40°C To +85°C Standby Work Current: < 30mA
GSM Antenna: ZHENGDA MICROPHONE: MIC
High Light:

car gps locator

,

automotive gps tracker



Full Function OEM E-bike GPS Tracker Support  Camera / LED Display





Performance Parameters:



Content

Specs.

Dim.

95*75*25mm

Weight

0.459kg

Network

GSM/GPRS

Band

900/1800/1900MHz or 850/900/1800/1900MHz

GPS chip

U-blox

GPS sensitivity

-159dBm

GPS accuracy

5 m

Time To First Fix

Reacquisition  0.1s

 Cold status  45s

Warm status  35s

 Hot status  1s

Work Voltage

DC  9V-36V

Battery

Chargeable changeable 3.7V / 600MAh Li-ion battery

Standby work current

< 30mA

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +70°C

Humidity

5%--95% non-condensing





Functional features:

  1.  Positioning and Tracking: Through the on-line Positioning Platform or the cell phone to locates at times, and get the working status. You can choose the Positioning Platform by yourself.
  2. Triggering Emergency Alarm: When there is a emergency happened on the vehicle, you can put on the button and the installed device will send out alarm to the authorized numbers.
  3. Remote controlling oil and circuit: you can control the oil and circuit via the device by SMS in anywhere and anytime.
  4.  Remote Monitoring: In anywhere and anytime, call the phone number in the device, when it connects, you can monitor the sound around 5 meter.
  5. Movement Alert: Send SMS to the device to start the movement alert function. When the vehicle is moving, the device will send the movement alert to all authorized numbers.
  6. Overspeed Alert: Send SMS to the device to start the movement alert function. When the vehicle is overspeed, the device will send the overspeed alert to all authorized numbers.
  7.  Geo-fence: Set up a geo-fence for the device to restrict its movements within a district. The device will send the message to all authorized numbers when it breaches the district.
  8. Restart the device
  9. Auto Track
  10. Mileage statistics
  11. Compatible with the original anti-theft alarm: It will send SMS alarm after the original anti-theft alarm warning.
  12. Modify the IP and Port of Communication Protocol for different on-line positioning platfor.
  13. fuel sensor ,temperature sensor and other sensor is optional .
  14. camera , lcd display, led display is optional
  15. GPS locating and tracking; Remote monitoring;
  16. SOS function;
  17. Romote controlling of oil and circuit;
  18. Blackouts alarm, Compatible with the original car alarms;
  19. Locating through phone message
  20. Acc checking;
  21. Moving and Speeding alarm;
  22. Mileage statistics and  Geo-fence function;
  23. Cam supporting,oil testing;
  24. Can be equipped with the netmeeting handet and dispatching screen,supporting dispatching and two-way audio;
  25. also can be worked with camera;
  26. With support of temperature sensor(optional);
  27. With support of fuel sensor(optional);
  28. With support of speed sensor(optional);



Detail Pictures:

Full Function OEM E-bike GPS Tracker Support  Camera / LED Display 0

Full Function OEM E-bike GPS Tracker Support  Camera / LED Display 1

1Initialization
   Send “begin + password” in SMS to the unit, it will reply “begin ok” and initialize all the                    settings. (Default password: 123456)

2. Add authorized number

 Send SMS “admin123456 13612345678”. "admin" as instruction, "123456" as password, "13612345678" as authorized number. It will reply “admin ok!”.

3. Delete authorized number

Send SMS “noadmin123456 13612345678”. "noadmin" as instruction, "123456" as password, "13612345678" as deleted number. It will reply “noadmin ok!”.

4. Change the Password
Send SMS: “password + old password + space + new password” to change the password.         For example: Send SMS “Password123456 138138”. "password" as instruction, "123456"as old password, "138138" as new password. Password must be six digits. Tracker’s initial password is 123456.

5. Resume the initial password

If you forget your password, you can resume the initial password 123456.

Send “resumepassword” to the tracker, the tracker will resume the initial password. If there is no authorized numbers, all numbers can resume initial password. If there is already authorized numbers, only the authorized numbers can resume initial password.



6. Control Oil
Send SMS “stopoil+password”  to control oil. For example send SMS: stopoil123456
"stopoil" as instruction, "123456"as password.
To supply the oil again, send SMS “supplyoil+password” to the unit. For example, send SMS  “Supplyoil123456” to the tracker. "Supplyoil" as instruction, "123456" as the password.

7. Control Circuit
  Send SMS “stopelec+password”  to control circuit. For example send SMS:stopelec123456”.
"stopoil" as instructions, "123456" as the password.
To supply the circuit again, send SMS “supplyelec+password” to the unit. For example, send SMS  “Supplyelec123456” to the tracker. "Supplyelec" as instruction, "123456" as password.

8. Monitor mode
        There are three modes for monitor.

1) All Monitor Mode: Send SMS “AllMonitor” to the unit, the unit will return to this mode. In this mode, any number can monitor this unit.

2) Restrict Monitor Mode: Send SMS “RestrictMonitor” to the unit, the unit will return to this mode. In this mode, authorized number can monitor this unit.

3) Close Monitor Mode: Send SMS “CloseMonitor” to the unit, the unit will return to this mode. In this mode, all numbers can not monitor this unit.

9. Movement alert


10. Overspeed alert


11. Geo-fence

Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.

Set up: The user can Send SMS “stockade + password + space + MinLatitude, MinLongitude; MaxLatitude, MaxLongitude” to unit to set the restricted district. In case of breach, it will send SMS “stockade! + geo-info” to the authorized numbers.

For example send SMS “stockade123456 22.548123, 114.081234; 22.549123, 114.082234” to the unit.

Remark: The first latitude & longitude is coordinate of min of the Geo-fence, while the second latitude & longitude is the coordinate of the max. It will alarm one time in each setting.

Cancel: Send SMS “nostockade + password” to deactivate this function.

This function will be out of effect after the unit moves outside the district.

12 . Restart the tracker.

Send SMS “reboot+password” to the tracker. For example“reboot123456”.The tracker will be restarted. It will reply “system will reboot...”.

13. Enquiry Positioning
 Send SMS “position” to the unit, then the unit will send SMS with real-time longitude and latitude to the cell phone.

14. Auto track

Send SMS “at30sum5” to the unit, it will reply “Auto track set ok.” and report a Geo-info at 30 seconds intervals for 5 times:  The max intervals is 65535 seconds. You can send “at30sum0” for heaps of times.

Send“noat123456” to the tracker, it will reply “Cancel auto track ok.”. And the tracker will stop send messages.

15. Modes switch between “track” and “monitor”

The default mode is “track”. Send SMS “monitor + password” to the unit, and it will reply “monitor ok!” and switch to “monitor” mode. For example send SMS: “monitor123456”. In this mode, you can monitor tracker by call tracker card number.

 Send SMS “tracker + password” to the unit, it will reply “tracker ok!” and restore to “track” mode. For example send SMS “tracker123456”. In this mode, you can get position SMS by call tracker.

16. Modes switch between “telephone” and “web”

Set up: Send SMS “web + password” to device. For example, the password is 123456. Send SMS “web123456” to the device, the device will reply SMS “set web ok”. After this, the tracker will report the GPS data to IP address.

If you want to send GPS data to telephone, you can send SMS “telephone + password” to device, the device will reply “set telephone ok”. And then, the device will send GPS data to your telephone by SMS. (The default is sending the GPS data to the telephone)

17. Modify IP address and port

The IP address and port of the tracker can be modified and transferred data to other platform. Send SMS “ IP + ip address + PORT + port value” to the unit. If the platform’s IP address and port is 123.67.87.9 and 344, send SMS “ip 123.67.87.9port344” to the tracker. It will reply “set IP address and PORT ok.”. After this, device will send GPS data to this IP and Port.

18. Set Device ID number

This command uses only for GPRS communication. Default device ID is the same. In order to identify device for platform, must set device ID for every device. Send SMS “number + tracker  ID number” to the tracker. For example “number13612345678”.

19. Set APN

  In order to send GPS data to IP address, you still must set mobile network Access Point Name (APN). If you don’t know the APN, you can consult local network service supplier. The format of set APN is “APN + password +space + apn value”. For example you send SMS “apn123456 cmnet” to the device. The device will reply SMS “Set APN ok.” .

20. Set GPRS user name and password

  Some country must be set GPRS user name and password for GPRS communication. The format of set GPRS user name and password is “user + space + GPRS user name + space + GPRS password”. For example, “user name 123456”, “user” is command, “name” is GPRS user name, “123456” is GPRS password. After send SMS, tracker will reply “Set GPRS User and Password ok . ” .





21. Set country time zone

  In the default, tracker reply position SMS time is UTC time. After you can set zone time, tracker will reply the time of your country. The format is “zone + password + space + time zone value”. For example, “zone123456 8” is set east 8 time zone. Time zone value ranges from -12 to 12. One time zone stands for one hour. “zone123456 -8” is set west 8 time zone. After send SMS, tracker will reply “Set Time Zone OK.”.

22. Set ACC open and close send data interval

 You can set the interval of send data when ACC open and close. The format of set ACC open interval is “accon + time interval”.  For example “accon 30” stand for when ACC open send data for every 30 seconds. The format of set ACC close interval is “accoff + time interval”.  For example “accoff 60” stand for when ACC close send data for every 60 seconds.

23. Set ACC open and close send SMS notify

 You can set the SMS notify of when ACC on and off. The format of set is “accnotify + 1 or 0”. For example “accnotify 1” stand for when ACC on and off send SMS to authorized numbers. “accnotify 0” stand for close send SMS notify. In order to use this function, you must set authorized numbers.

24. Get GPS Info with Google Format

 You can get latitude and longitude with Google website format. So you can open map directly by mobile. The format of SMS is “google”.  After you send SMS, tracker will reply GPS info with google website format.

25. Set call reply SMS format

 You can set reply SMS format after you call tracker. The format of SMS is “geosms + value”. The SMS of “geosms 1” set reply SMS format as “position”. The SMS of “geosms 2” set reply SMS format as “google”.



Applications:



Vehicle Rental/Special Tracking System
Finance and Insurance Business Tracking System
Car Commanding and Dispatching System
Heavy Construction Vehicles Tracking Device
Shipping Cargoes Tracking

4s shop, car company, truck company, motorcycle company,GPS producer, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, car repair shop,taxi company, bus company.





Gurantee:



1. All of our product is free to use the Tracking service server in 24 hours each day

2. All of our product there is a 2 year quanlity assurance.

3. Sample fee will not  be returned.





Product Configuration:



1. Standard configuration



1)   Main device           1 pcs

2)   Power line              1 pcs

3)   GSM antenna        1 pcs

4)   GPS antenna         1 pcs

5)    Installation cables      1 set

6)    Usage instructions

7)    Warranty card

8)    Certification



2. Optional configurations



1)  Accessories (relay) for cut fuel/circuit

2)  High capacity backup battery, it can works for 12h

3)  Temperature sensor and fuel sensor

4)  Camera, led, lcd display
