Mini Personal GPS Tracker U-blox7 Chip For Checking Position By Mobile APP

I'm Online Chat Now
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

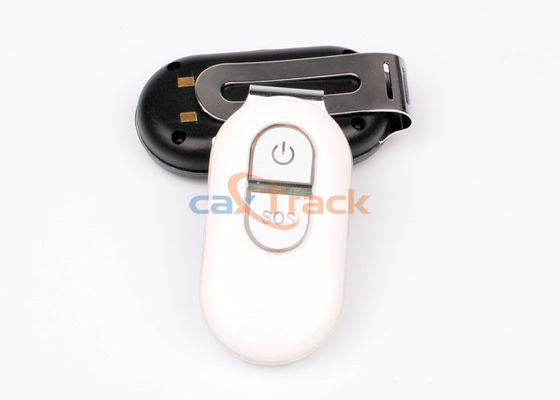

Mini Personal GPS Tracker U-blox7 Chip For Checking Position By Mobile APP

Mini Personal GPS Tracker U-blox7 Chip For Checking Position By Mobile APP
Mini Personal GPS Tracker U-blox7 Chip For Checking Position By Mobile APP Mini Personal GPS Tracker U-blox7 Chip For Checking Position By Mobile APP Mini Personal GPS Tracker U-blox7 Chip For Checking Position By Mobile APP

Large Image :  Mini Personal GPS Tracker U-blox7 Chip For Checking Position By Mobile APP Get Best Price

Product Details:
Place of Origin: China
Brand Name: caxtrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA-P6
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 10,000pcs per month
Detailed Product Description
Product Name: Personal GPS Tracker Network: GSM/GPRS
Band: 850/900/1800/1900MHz GPS Chip: U-blox Chip
GPS Accuracy: 5m Application: Person
Work Voltage: 3.7-4.5V Dim: 50*50*15mm
Battery: 800Mah GPS Sensitivity: -159dBm
Color: White Or Black Shell: Plastic
Package: Box GPRS Model: MTK6261
Vibration Sensor: Triaxial Vibration Sensor
High Light:

Personal GPS Tracking


Personal GPS Tracker Device


Mini Personal GPS Tracker U-blox7 Chip For Checking Position By Mobile APP


Performance Parameters:




50*50*15mm (mm)






900/1800/1900MHz or 850/900/1800/1900MHz

GPS chip


GPS sensitivity


GPS accuracy

5 m

Time To First Fix

Reacquisition  0.1s

 Cold status  45s

Warm status  35s

 Hot status  1s

Work Voltage

DC  3.7-4.5V


Chargeable changeable 3.7V /1000Mah Li-ion battery

Standby work current

< 30mA

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +70°C


5%--95% non-condensing



  1. Sleep model ,1000MAH battery, can work 3 days .
  2. Online web platform, the historical and current location can be checked
  3. Remote voice monitoring.
  4. Low battery alarm.
  5. Inlayed 3D accelerator,moving and static state, energy smart.
  6. Change the time interval of uploading automatically according to the speed.
  7. Admin checks the altitude and longitude and location information by texting.
  8. A-GPS solutions,shorter locating time,higher precision.
  9. Long Duration battery up to 48 hours fully working ( test under updating per 30 seconds).

1. Hardware Introduction
1.1. Buy one Sim Card and confirm the following details:   This sim card can be used to make call, send SMS, and gets GPRS function.    This sim card gets enough money for GPS tracking service.    This sim card gets caller ID display function, no call forwarding.    The SMS format should be text format, not PDU format. (Most countries use text format for SMS)

1.2. Please use the screw driver to open the GPS tracker, and Insert the sim card with the correct direction (golden part   faces down).

1.3 The first time you use this tracker, please charge the GPS tracker 12 hours, so that the battery can get a good performance, Normally, it only takes 3-5 hours to charge battery fully. Because the battery in tracker is li battery, so don’t squeeze it illegally, or put it into fire. The normal standby time of battery is 100 hours.

1.4. Please use the power charger in standard kit to charge our GPS tracker.

2. Device Activation.

2.1 Bring GPS tracker to open air, and press power switch for 3 seconds, then you can see the indication light will be on. Then GPS tracker will start to search GSM and GPS signal automatically. 2.2. According to the light status, user can judge the GPS tracker status. Once the GPS signal is ready, you can set all functions in user manual.

3. Administrator number setting(Master number setting)


3.1 How to add admin phone number:  (Default factory setting password:123456)  Instruction: admin+password+space+country code+ GSM number For example: admin123456 08615899778447 Then system will reply a SMS: admin ok Notice: User can only use admin number to set SOS number in, furthermore, never cancel the space and country code, the first time you use this tracker, please change the password by the following instruction: password+old 123456+space+new 123456  For example:password123456 666888 Once you change the password, you can receive a SMS from tracker “password ok”

3.2 How to delete admin phone number: Instruction: noadmin+password+space+country code+ GSM number    3.3  SOS alarm phone number setting Instruction: sos+password+space+country code+sos phone number      For example: if your send SMS instruction: sos123456 08615899778447 to GPS tracker, GPS tracker will send you a SMS back with “SOS number ok”, in future, if you long press SOS button for 3 seconds. GPS tracker will send a SOS SMS to all SOS phone number.
3.3.1 Set SOS phone number(support 2 group SOS phone numbers) Instruction:
LED light status Normally on without flash Charging Flash Low battery Off Full battery
4. Set GMT Time zone number: Instruction: time zone+123456+space+GMT No. For example, Finland is GMT+2 zone, so user can set: timezone123456 +2. Then GPS tracker will be adjusted to be the right time zone “Time OK”

5. Inquire location

 Inquire Location by call    If you have set an admin phone number, you can call GPS tracker and get location SMS, but phone number which has not been registered can’t inquire location SMS. If you haven’t set admin phone number, any phone number can be used to inquire location SMS.       When you use admin number to call GPS tracker, the GPS tracker will remind you “ the phone number you call is busy”, then you can hang up the call, the GPS tracker will send a location SMS to you automatically soon like follow:

6.  Listen-in function GPS tracker has two modes: one is tracking mode, the other mode is Listen-in mode, the default setting is tracker model, so when user call GPS tracker, a tracking SMS will be sent back, if user want to listen in GPS tracker by phone call, user has to change the mode first by instruction “ Monitor+password”, then tracker will send a SMS back “ Monitor ok”, then when you call the GPS tracker, you can listen-in what happen near the tracker. If user want to recover to tracker mode, user can send “ tracker+password”, then GPS tracker will be in tracking mode.

7.  G-Fence alarm
   We suggest that this setting will be set by Web GPS CMS. User can use this function to define the working range, once the GPS tracker step out of this working range, it will send an alarm to admin phone number.

8.  Moving Alarm: Instruction: Move+password+moving semidiameter Put GPS tracker on desk without moving for 3-10 minutes, then send instruction to GPS tracker, the default setting distance is 500 meters. If user want to set it to be 1000meters, user can write like “ Move1234561000”, then the GPS tracker will set a moving alarm range with 1000 meters semidiameter. User can set this function in GPS APP also. Cancel moving alarm: nomove+password    SMS reply: Nomove ok. Notice: The moving semidiameter should be 500 meters, or more.


9. Over speed alarm Instruction: speed+password+space+ speed        For example: speed123456 080, then tracker will reply: “speed ok”        If the tracker move over 80km/h, GPS tracker will send a SMS to admin phone number “ Speed alarm+080!+ longitude and latitude. GPS tracker will send over speed alarm SMS every 5 minutes.
Cancel over speed alarm: Instruction: nospeed+password Reply SMS:nospeed ok
Notice: The speed motioned above less than 50km/h will bring some influence to GPS signal, then bring some drift.


10. Low battery alarm Once the tracker battery get close to 3.7V, GPS tracker will send a low battery alarm SMS to admin phone number.


11. Working mode setting: There are three working modes setting for GPS tracker: 1. Timing Sleep mode Instruction: sleep+password+space+time(minutes) For example: Sleep123456 10 , if user send this instruction to tracker, tracker will reply “ Sleep time ok”, without any operations (by button, SMS or Call)for 10 minutes, it will step into sleep mode, GPS function and LED light will be turned off, after that, if you press any GPS tracker button, send SMS, or make a call to GPS tracker, it will be waked up. Of course, this mode will work under no vibration alarm setting.

12.  Recover factory setting and reset GPS tracker 12.1. Recover factory setting: Instruction:format+password Notice: Once user send this instruction to GPS tracker, all setting which has been done by user will be canceled. Only Admin phone number can executive this instruction.

Mini Personal GPS Tracker U-blox7 Chip For Checking Position By Mobile APP 0

Mini Personal GPS Tracker U-blox7 Chip For Checking Position By Mobile APP 1

Pet shop , pet company , GPS producer , large-scale shopping malls , exclusive agency , chain shops , large-scale sales
1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not  be returned.
Product Configuration:

1. Standard configuration
1)    Tracker                    1 pcs
2)    charger                    1 pcs
3)    Installation cables    1 set
4)    Usage instructions
5)    Warranty card
6)    Certification
