Worldwide Coerage GPS Tracker For Vehicles, Mini Small Size 4G GPS Tracker Vibration alarm
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Placement: | Windshield, Instument Panel | Function: | ACC Ignition Checking |
|---|---|---|---|
| Warranty: | 2 Years | Use: | Automotive |
| GPS Accuracy:: | 5-10m | Size: | 90*40*15MM |
| Tracking System:: | SMS , Android / IOS APP , Web Based Platform | Battery: | 200mah |
| High Light: | FCC 4G OBD GPS trakcer,LBS Locating Diagnostic Code Reader,ACC Input Detection GPS Tracker |
||
Worldwide Coerage GPS Tracker For Vehicles, Mini Small Size 4G GPS Tracker Vibration Alarm
C003-01-4G Model
Designed for car vehicle motorcycle e-bike users, real-time positioning, vibration alarm, electronic fence, speeding alarm.
Applicable industries: vehicle anti-theft, bus management, logistics and transportation, electric motorcycle anti-theft.
Worldwide Coerage GPS Tracker For Vehicles, Mini Small Size 4G GPS Tracker Vibration Alarm
Product Features:
MT6261 Chip
Fast positioning speed, high accuracy, more stable performance
Dual mode positioning
GPS positioning LBS positioning more stable performance
Remotely cut off power/fuel

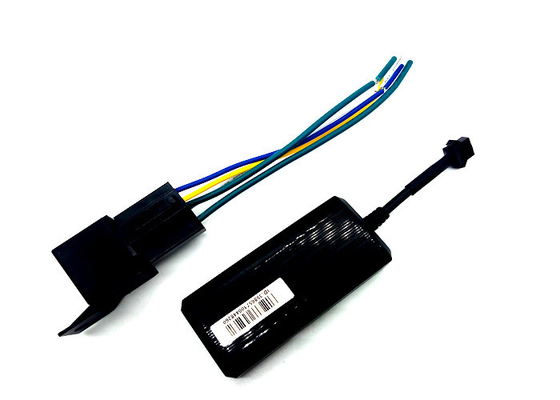

External relay(optional), remotely cut off power/fuel
Support full network
2G:GSM 850MHz,900MHz,1800MHz,1900MHz
3G WCDMA 2100/1900/900/850MHz
4G:FDD-LTE 800/850/900/1800/2100/2600MHz
Wide voltage range
Support voltage range 9V-100V
Main Function Description
1.For all models vehicles(12-24v)
2.Location based service(LBS) + GPS double tracking solution
3.Anti-theft gsm alarms:
Geo-fence alarm
Over speed alarm
Vibration alarm
4.ACC ignition check
5.Remotey shutdown power/fuel.
6.Built-in 200mA
7.SMS tracking on cell phone
8.Absolute street address by SMS
9.Web server, free PC tracking soft, Mobile phone APP
Worldwide Coerage GPS Tracker For Vehicles, Mini Small Size 4G GPS Tracker Vibration Alarm
Hardware Specification
| GSM specifications | |
| Communication system | GSM |
| GSM Band | 850MHz,900MHz,1800MHz,1900MHz |
| GPRS | Class 12,TCP/IP |
| Memory | 32m(RAM)+32m(ROM) |
| GPS specifications | |
| Chip | MT6261 |
| Positioning accuracy | <10M |
| locating time | Cold start≈38s(Open sky) Warm start≈32s Hot start≈2s(Open sky) |
| Main specifications | |
| Working Voltage | 9-100V DC |
| Working current | 22mA (12vDC) 12mA (24vDC) |
| Size | 90*40*15mm |
| Weight | 50g |
| Working temperature | -20℃～+70℃ |
| Working humidity | 20%～80%RH |
Worldwide Coerage GPS Tracker For Vehicles, Mini Small Size 4G GPS Tracker Vibration Alarm
C003-01-4G locator functions
C003-01-4G GPS locator is a device that uses satellite signals to determine and report location data. It works like this:
First, the GPS locator needs to be installed in the vehicle or on the device. The device has a built-in antenna to collect information about location and time from GPS signals. Many tracking systems also collect data about speed, driver behavior, etc.
When GPS receives this information, it will be transmitted to the server through the network, so that users can view it on the computer platform and mobile APP. Different devices have different data update frequencies according to different uses. They range from being updated every few seconds to being updated every day or several days.
FAQ
Q:What is the MOQ?
A:MOQ 10pcs
Q:Can i get a lower price if I order large quantities?
A:YES,cheaper prices with more bigger size orders
Q:Can i get the pre-production sample ?
A:yes ,for OEM order,it is ok to send samples for confirmation before mass
production
Q:When you ship my order ?
A:Normally 1-10days after receiving deposit,but it can be negotiated based on order
