Product Details:
Payment & Shipping Terms:
|
| Function: | Real Time Tracking | Place Of Origin: | Shenzhen China |
|---|---|---|---|
| Product Name: | MINI 4G GPS Tracker | Weight: | 50g |
| Sensor: | G-sensor | Battery: | 200mAH |
| Warranty: | 2 Years | Type: | 4G 3G 2G GPS Tracker |
| Highlight: | LBS Positioning GPS Vehicle Tracker,Vibration Alarm GPS Vehicle Tracker,SOS Button 4g Tracking Device |
||

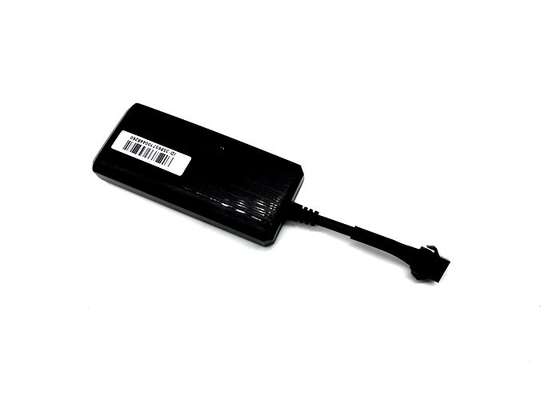

4G SOS Button Optional Mini GPS Car Vehicle Tracker With Vibration Alarm GPS LBS Positioning

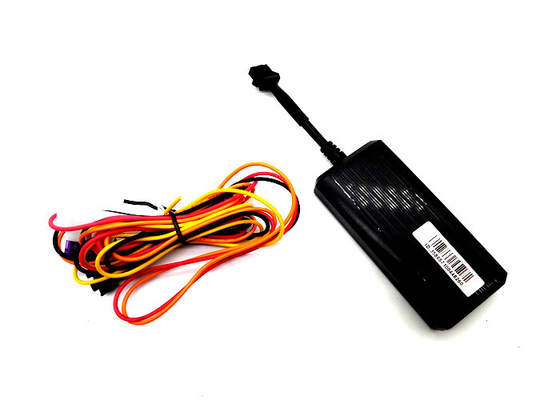

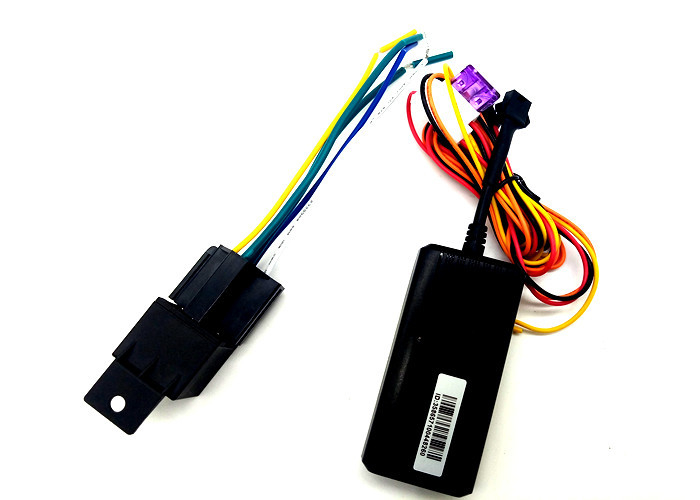

Accessories
Red＆black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
4G SOS Button Optional Mini GPS Car Vehicle Tracker With Vibration Alarm GPS LBS Positioning
Device wiring requirements
1 The device power supply is DC 9-100V. The red line is positive pole while the black line is negative pole.
2 The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.
3 When finishing the power supply wire connection, please make the plug of power supply to the device
Indicators
LIGHT Functions
| Red LED | Connect DC 9-100V power supply and will light continuously. |
| The red LED is the power signal, | |
| It is always on when the external DC is connected. | |
| Blue LED | It is he GSM signal indicator. |
| It is always on when there is no GSM; | |
| It flashes when GSM is normal; | |
| It flashes quickly when transmitting data. | |
| Yellow LED | It is the GPS signal indicator: |
| It is always on when there is no positioning; | |
| It flashes after positioning. |
4G SOS Button Optional Mini GPS Car Vehicle Tracker With Vibration Alarm GPS LBS Positioning
Product parameters
| FDD LTE | 800/850/900/1800/2100/2600MHz |
| GPS positioning | GPS sensitivity: -162dBm |
| GPS positioning accuracy: 5 meters (under open conditions) | |
| Speed accuracy: 0.1 m/s | |
| Cold start time: <38 seconds | |
| Warm start time: <32 seconds | |
| Hot start time: <2 seconds | |
| Base station positioning | Support base station positioning, positioning accuracy: 10~200 meters |
| Working current | Average current ≈22mA (12vDC) maximum current <100mA (12VDC) |
| Operating temperature | -20~+70℃ |
| Material | Engineering plastics |
| Weight | 50G |
| Network | 4G LTE/3G WCDMA /2G GSM |
| Dim. | 90*40*15mm |
| Storage Temp. | -40°C to +85°C |
| Accuracy | 5-20m |
| Operation Temp. | -20°C to +55°C |
| Humidity | 20%--80% non-condensing |
| Working Voltage | 9-100V |
| CPU | MTK6261 |
Main Functions
| Remote cut-off (petrol/power) | Light and compact |
| Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
| ACC detection | GPS + LBS Positioning |
| Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
| Tracked by: SMS, APP, Web | voltage range:9-100V |
| Reports location in real time through different interfaces | Voltage adaptation up to 100v |
4G SOS Button Optional Mini GPS Car Vehicle Tracker With Vibration Alarm GPS LBS Positioning
Product Features
1 Support global gsm850/900/1800/1900mhz, wcdma850/900/1900/2100 Mhz network frequency band;
2 Wide operating input voltage range: 9-80VDC;
3 GPS / LBS real-time positioning, support the computer to track the car, mobile search vehicles and wechat search vehicles;
4 Support SMS text query location information;
5 ACC ignition signal is detected, the vehicle prompted the state;
6 Built-in vibration sensor, to achieve intelligent vehicle anti-theft;
7 Able to set a specific number for SOS alarm and burglar alarm;
8 SOS switch button for emergency call for help;
9 Internal / external microphone and speakers, remote audio monitoring and voice intercom function (optional);
10 Built-in backup battery, to achieve illegal cutting wire alarm (optional);
11 Built-in OBD2 remote vehicle diagnostics management system (optional);
12 Platform supports up to 180 days historical route track;
13 Platform supports electronic fence, out of the regional alarm;
14 Platform supports deviate planning route alarm;
15 Platform supports overspeed alarm;
16 Platform supports serious collision warning (optional);
17 Platform Support rollover warning (optional);
18 Platform supports for report output;
19 Support WEB send arm and disarm command;
20 Support RFID auto-sensing arm and disarm (optional);
