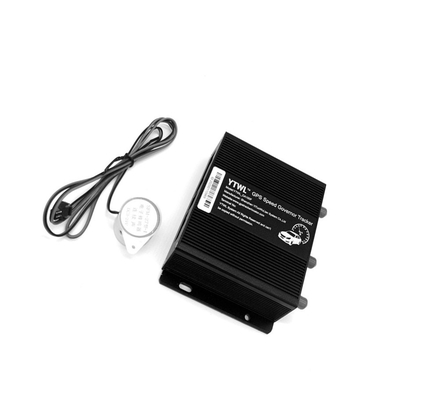

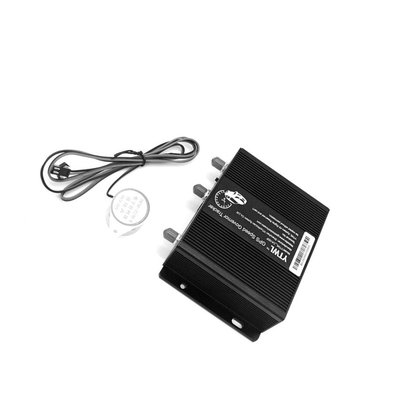

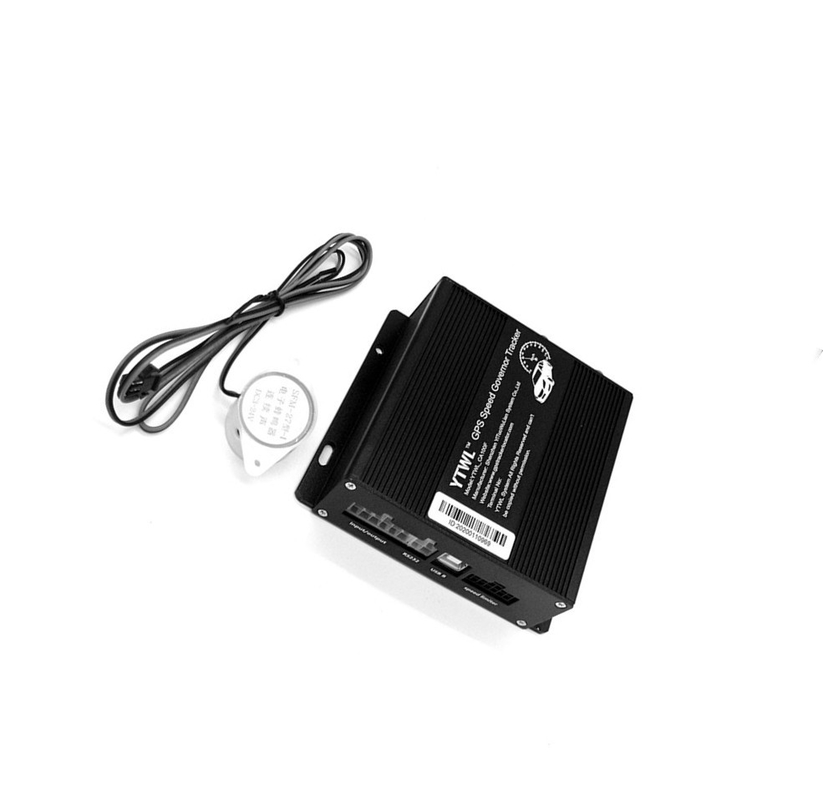

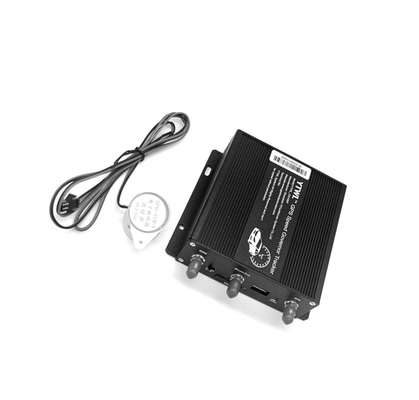

YTWL_CA100F Vehicle Car GPS Speed Limiter Control Fuel Oil Consumption GPRS Antenna

YTWL_CA100F Vehicle Car GPS Speed Limiter Control Fuel Oil Consumption GPRS Antenna

1. Speed limiter/governor Device

a device whose primary function is to control feed to the engine in order to limit the vehicle speed to the specified value. The purpose of the Speed limiter device is to limit the maximum road speed for vehicles to a specified value without affecting the other performance parameters of the vehicle in any manner.

2.Speed limiter GPS Tracking  Main functions

• Positioning and Tracking: Through the on-line Positioning Platform or the cell phone to locates at times, and get the working status. You can choose the Positioning Platform by yourself.
• Remote controlling oil and circuit: you can control the oil and circuit via the device by SMS in anywhere and anytime.
• Overspeed Alert: Send SMS to the device to start the movement alert function. When the vehicle is overspeed, the device will send the overspeed alert to all authorized numbers.
• Restart the device: send SMS to resume the default of device.
• Movement Alert: Send SMS to the device to start the movement alert function. When the vehicle is moving, the device will send the movement alert to all authorized numbers.

3 GPS Model of speed Limiter Specifications

4. Speed Limiter Requirements

YTWL_CA100F Vehicle Car GPS Speed Limiter Control Fuel Oil Consumption GPRS Antenna

1. Speed limiter devices shall have a built in / integrated GPS;
2. Speed limiter devices shall be designed, constructed, assembled and fitted to the vehicle that it will perform satisfactorily, despite the vibrations and temperature to which it may be subjected.
3. Speed limiter devices shall be calibrated and maintained in a good working order and capable to limit the speed of a vehicle at the set speed as stipulated by the regulatory body;
4. Speed limiter device shall be so designed, constructed and assembled and fitted to the vehicle to make it maximum tamper proof and fail safe, against various factors such as disconnection / failure of various components e.g. power supply, speed sensor,
   mechanical actuator system, linkages etc. or any unauthorized modification and adjustment to the system.
5. The speed limiter device systems shall be "failsafe" in such a way that if the plug/s to the electronic controller is/are removed, power is disconnected or if the speed signal and/or wire is disconnected the vehicle shall automatically, default to a limp mode or the engine shall stall or return to idle or, at least, and thus shall not be able to be driven in excess of thirty kilometers per hour. (30km/h);
6. The speed limiter function or road speed limiter shall not interfere with the brake system of the vehicle.



YTWL_CA100F Vehicle Car GPS Speed Limiter Control Fuel Oil Consumption GPRS Antenna

1. The road speed limiting device shall have in built features that allow functionality checks and shall have special inspection devices for this purpose to facilitate the checking when the vehicle is not in motion ;
2. The speed limiter function or the road speed limiter shall not cause uncontrolled engine power;
3. No malfunction or unauthorized interference shall result in an increase in engine power above the demanded by the position of the driver's accelerator. The malfunction of the speed limiter devices shall not affect the normal vehicular performance;
4. The speed limiter function or the speed limiter device shall allow normal accelerator control for the purpose of gear changing.





5. Technical Parameters:

YTWL_CA100F Vehicle Car GPS Speed Limiter Control Fuel Oil Consumption GPRS Antenna

Item	Parameters
Overall Size	20.0 X 9.2 X 4.5 CM
Host Net Weight	0.4 KG
Processing chip	STC
Speed Limiting Zone	20-200 Km/H
Speed Limiting Deviation	±5Km/H
Mechanical Bearing Capacity	400N
Working Voltage	9-36 V
Rated Power Consumption	<0.3 W
Working Current	<60 mA
