YTWL_CA100F GPS Speed Limiter GPS Tracking Position Ethiopia Standard Car Speed

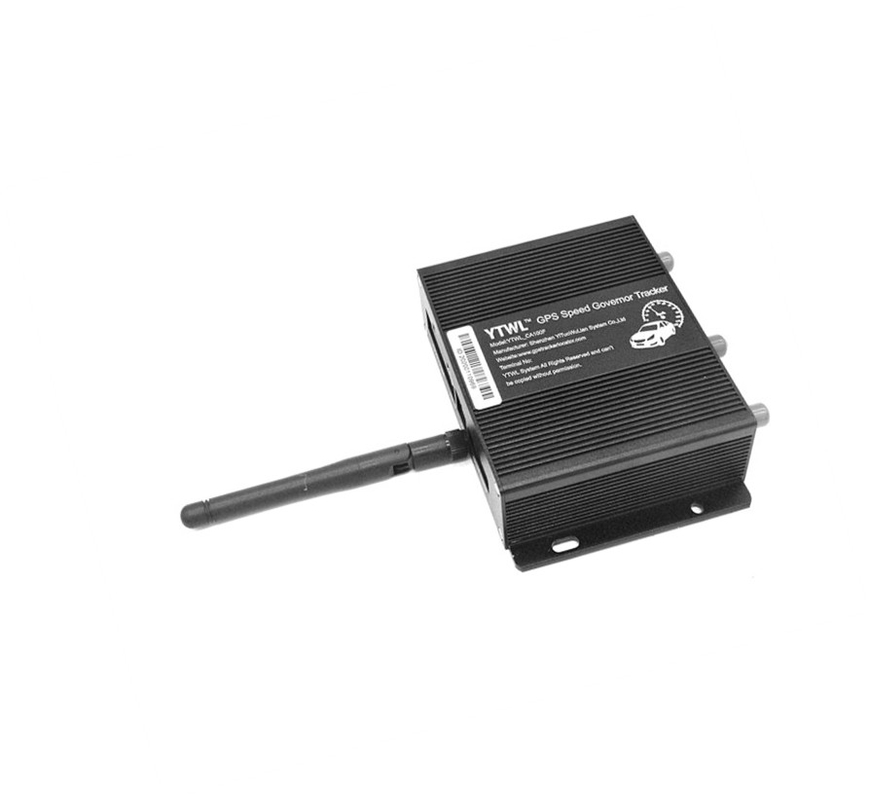

Large Image : YTWL_CA100F GPS Speed Limiter GPS Tracking Position Ethiopia Standard Car Speed Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	YTWL
Certification:	CE/ROHS/FCC/SGS
Model Number:	CA100F

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	negotiation
Packaging Details:	Packed in carton firstly
Delivery Time:	1-10 working days after received your payment
Payment Terms:	T/T or western Union or paypal
Supply Ability:	100,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Vehicle Speed Limiter	Processing Chip:	ARM
Product Accessory::	Extension Wire	Original:	China
Control Oil:	Yes	Accuracy:	Within 1m
Geo-fence:	Support	Corrosion:	Resist
Transportation:	Air Transportation,Air Sea Express
Highlight:	ARM GPS Speed Limiter , GSM GPS Speed Limiter , Extension Wire Vehicle Speed Limiter

YTWL_CA100F GPS Speed Limiter GPS Tracking Position Ethiopia Standard Car Speed

1. Speed limiter GPS Attention

Please insert the SIM card before installing, and make sure the SIM card has no password,otherwise the tracker will not work normally.
Please make sure that all the cables of the speed limiter tracker has been connected rightly, and then connect the speed limiter tracker to host power. Must not install or take down the speed limiter GPS tracker when it is power on. If you found any troubles or omissions about the connections of cables, please cut off power first,otherwise you will easily damage the tracker.
The speed limiter GPS tracker works in wireless communications, so please cut off the host power before your vehicles entering fuel depot and dangerous material place.
The host of GPS tracker is a low-power wireless transmitter and receiver. It receives and sends radio frequency signal when it is working.

2. The Speed Limiter GPS Tracker Start up

The indicator in the speed limiter can turn into red and blue color. Insert the SIM card and install the speed limiter tracker in the car, the red indicator is on. In 10 seconds, the device will begin to work and search the 3G network signals as well as the GPS signals. When the device is communicating, the red indicator blinks very fast. The blue indicator will keep flashing every 2 seconds when the GPS module is in standby mode. When the blue indicator is not lighting, the GPS module is working but hasn’t fixed position, after it has fixed position, the blue indicator is lighting

3 Product Specifications

Color	Black	Application	free android and IOS app
Input Fuse	5A	CPU	TI:MSP430F5419(100MHz)
Battery	Lithium battery :400mA( working time is about 3.5 hours)	Warranty	2 years
Item Name	Top selling shine	Function	camera gps fleet tracker
Working Temperature	Anna Shi	MOQ	5 Pieces
Recording and tracking	The recorder shall incorporate a combination of an onboard and off-board mechanism for recording and storing the speed of the vehicle. The speed shall be recorded in Km/h at not more than five seconds interval. The retrieved data shall clearly and in an unambiguous manner display the date (dd Imm Iyyyy) of recording. Each entry shall be time related (either 24 hour or 12 hour format). Each entry shall capture global position coordinates. The recorded data shall be in the same format for both the onboard and off board storage Systems. Memory capacity of the speed limiter device shall have a minimum capacity of saving 5,000 blind data	GPS Module	GPS chip set: SiRF Star III Frequency: L1, 1575.42 MHz Number of Channel: 20 Reacquisition: 0.1 sec, average Hot boot: 2 sec., average Warm boot: 38 sec., average Cold boot: 44 sec., average Altitude limit: 18000 m Velocity limit: 515 m/s
General requirements	Speed limiter devices shall have a built in / integrated GPS Speed limiter devices shall be designed, constructed, assembled and fitted to the vehicle that it will perform satisfactorily, despite the vibrations and temperature to which it may be subjected. Speed limiter devices shall be calibrated and maintained in a good working order;and capable to limit the speed of a vehicle at the set speed as stipulated by the regulatory body. The speed limiter function or road speed limiter shall be EMCcompatible or shall have Anti-Jammer mechanism	Input I/O	8 I/O input/output Port 1 main power check 1 port use to check the engine ( ACC check) 1 port use to SOS 1 analog Input port( Fuel sensor) 1 Output port ( Car engine control ) 3 Extend ports ( Input/Output control by software)

4. Speed Limiter Requirements

YTWL_CA100F GPS Speed Limiter GPS Tracking Position Ethiopia Standard Car Speed

The speed limiting device shall be so designed, constructed and assembled so as to resist vibrations, corrosion, dust, humidity, petrochemicals and aging phenomena to which it may be exposed;
Speed limiter device shall be so designed, constructed and assembled and fitted to the vehicle to make it maximum tamper proof and fail safe, against various factors such as disconnection / failure of various components e.g. power supply, speed sensor,
mechanical actuator system, linkages etc. or any unauthorized modification and adjustment to the system.
The speed limiter function shall be independent of the condition or soundness of the speedometer
For the purpose of anti-tampering of the setting of the "set speed" of a speed limiter device, the connection points on a speed limiter device for adjustment of "set speed" shall be properly sealed and protected from unauthorized adjustment.
The road speed limiting device shall be resistant to reverse polarity connections.
The actuation force of the controls should not have a detrimental effect on the driver's efficiency or impose fatigue on the driver.

5. Speed Limiter GPS Main functions

YTWL_CA100F GPS Speed Limiter GPS Tracking Position Ethiopia Standard Car Speed

Positioning and Tracking: Through the on-line Positioning Platform or the cell phone to locates at times, and get the working status. You can choose the Positioning Platform by yourself.;
Triggering Emergency Alarm: When there is a emergency happened on the vehicle, you can put on the button and the installed device will send out alarm to the authorized numbers
Remote controlling oil and circuit: you can control the oil and circuit via the device by SMS in anywhere and anytime
Remote Monitoring: In anywhere and anytime, call the phone number in the device, when it connects, you can monitor the sound around 5 meter
Movement Alert: Send SMS to the device to start the movement alert function. When the vehicle is moving, the device will send the movement alert to all authorized numbers
Overspeed Alert: Send SMS to the device to start the movement alert function. When the vehicle is overspeed, the device will send the overspeed alert to all authorized numbers.
Restart the device: send SMS to resume the default of device.
Auto Track: You can set up auto track by SMS or on-line positioning platform
Mileage statistics; ACC checking; cutting off power and alarm

6. Speed Limiter Technical Parameters:

YTWL_CA100F GPS Speed Limiter GPS Tracking Position Ethiopia Standard Car Speed

Item	Parameters
Overall Size	20.0 X 9.2 X 4.5 CM
Host Net Weight	0.4 KG
Processing chip	STC
Speed Limiting Zone	20-200 Km/H
Speed Limiting Deviation	±5Km/H
Mechanical Bearing Capacity	400N
Working Voltage	9-36 V
Rated Power Consumption	<0.3 W
Working Current	<60 mA

7.Set Speed Limiter Control Oil

Send SMS “stopelec+password” to control circuit. For example send SMS: “stopelec123456”."stopoil" as instructions, "123456" as the password.To supply the circuit again, send SMS “supplyelec+password” to the device.For example, send SMS “Supplyelec123456” to the tracker. "Supplyelec" as instruction, "123456" as password.
