Ethiopia Car GPS Speed Limiter With Bluetooth Printer for Electronic Throttle Car

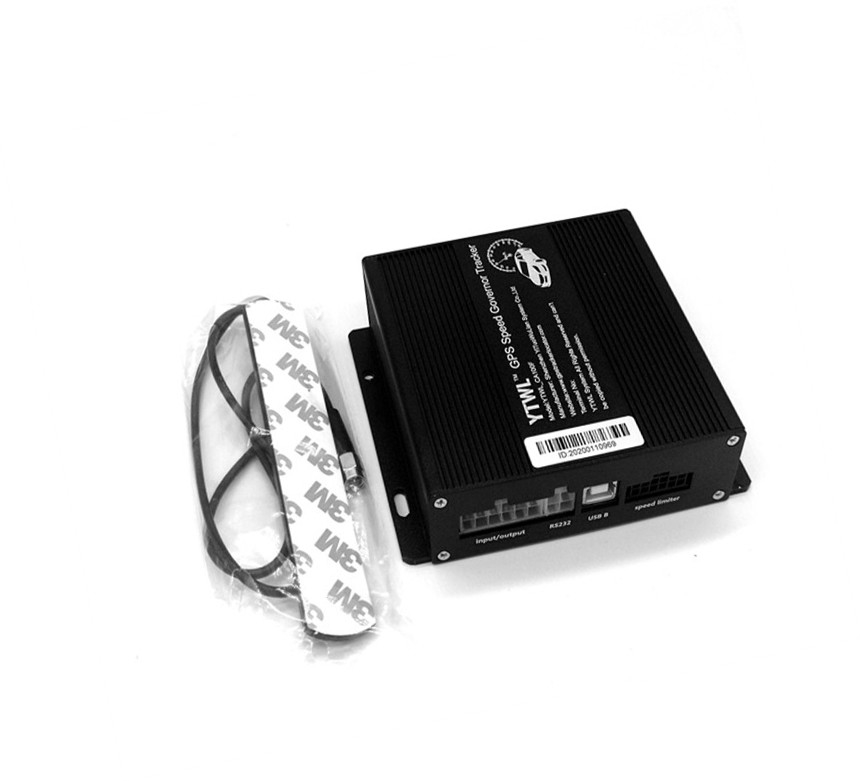

Large Image : Ethiopia Car GPS Speed Limiter With Bluetooth Printer for Electronic Throttle Car Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	cartrack
Certification:	CE/ROHS/FCC/SGS
Model Number:	CA100F

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	negotiation
Packaging Details:	Packed in carton firstly
Delivery Time:	1-10 working days after received your payment
Payment Terms:	T/T or western Union or paypal
Supply Ability:	100,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Vehicle Speed Limiter	Processing Chip:	ARM
Product Accessory::	Extension Wire	Original:	China
Control Oil:	Yes	Material:	Steel
Geo-fence:	Support	Warranty Time:	2 Years
Transportation:	Air Transportation,Air Sea Express
Highlight:	Throttle Car Speed Limiter , Ethiopia Car Speed Limiter , GSM Antenna Vehicle Speed Limiter

Ethiopia Car GPS Speed Limiter With Bluetooth Printer for Electronic Throttle Car

1. Speed limiter Geo-fence

Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.Set up: The user can Send SMS “stockade + password + space + MinLatitude, MinLongitude; MaxLatitude, MaxLongitude” to unit to set the restricted district. In case of breach, it will send SMS “stockade! + geo-info” to the authorized numbers. For example send SMS “stockade123456 22.548123, 114.081234; 22.549123, 114.082234” to the unit.7.Remark: The first latitude & longitude is coordinate of min of the Geo-fence, while the second latitude & longitude is the coordinate of the max. It will alarm one time in each setting.Cancel: Send SMS “nostockade + password” to deactivate this function.This function will be out of effect after the unit moves outside the district

2.Performance Tests on the Device as Fitted on the Vehicle

speed limiter device as installed on specified vehicle type can be approved as per choice of supplier by either of the following methods
The general requirements mentioned in clause 4 pertaining as fitted on the vehicle should be examined during the test

3 Product Specifications

Color	Black	Application	free android and IOS app
Input Fuse	5A	CPU	TI:MSP430F5419(100MHz)
Battery	Lithium battery :400mA( working time is about 3.5 hours)	Warranty	2 years
Item Name	Top selling shine	Function	camera gps fleet tracker
Working Temperature	Anna Shi	MOQ	5 Pieces
Recording and tracking	The recorder shall incorporate a combination of an onboard and off-board mechanism for recording and storing the speed of the vehicle. The speed shall be recorded in Km/h at not more than five seconds interval. The retrieved data shall clearly and in an unambiguous manner display the date (dd Imm Iyyyy) of recording. Each entry shall be time related (either 24 hour or 12 hour format). Each entry shall capture global position coordinates. The recorded data shall be in the same format for both the onboard and off board storage Systems. Memory capacity of the speed limiter device shall have a minimum capacity of saving 5,000 blind data	GPS Module	GPS chip set: SiRF Star III Frequency: L1, 1575.42 MHz Number of Channel: 20 Reacquisition: 0.1 sec, average Hot boot: 2 sec., average Warm boot: 38 sec., average Cold boot: 44 sec., average Altitude limit: 18000 m Velocity limit: 515 m/s
General requirements	Speed limiter devices shall have a built in / integrated GPS Speed limiter devices shall be designed, constructed, assembled and fitted to the vehicle that it will perform satisfactorily, despite the vibrations and temperature to which it may be subjected. Speed limiter devices shall be calibrated and maintained in a good working order;and capable to limit the speed of a vehicle at the set speed as stipulated by the regulatory body. The speed limiter function or road speed limiter shall be EMCcompatible or shall have Anti-Jammer mechanism	Input I/O	8 I/O input/output Port 1 main power check 1 port use to check the engine ( ACC check) 1 port use to SOS 1 analog Input port( Fuel sensor) 1 Output port ( Car engine control ) 3 Extend ports ( Input/Output control by software)

3. Speed Limiter Requirements

Ethiopia Car GPS Speed Limiter With Bluetooth Printer for Electronic Throttle Car

The speed limiting device shall be so designed, constructed and assembled so as to resist vibrations, corrosion, dust, humidity, petrochemicals and aging phenomena to which it may be exposed;
Speed limiter device shall be so designed, constructed and assembled and fitted to the vehicle to make it maximum tamper proof and fail safe, against various factors such as disconnection / failure of various components e.g. power supply, speed sensor,
mechanical actuator system, linkages etc. or any unauthorized modification and adjustment to the system.
The road speed limiting device shall be designed and constructed in such a way that it can be fitted in a place not easily accessible
For the purpose of anti-tampering of the setting of the "set speed" of a speed limiter device, the connection points on a speed limiter device for adjustment of "set speed" shall be properly sealed and protected from unauthorized adjustment.
Speed limiter device shall have geo-fence management feature;
Speed limiter devices shall be so constructed that the vehicle may not be accelerated by the operation of the acceleration devices, such as the accelerator pedal, when the vehicle is running at its set speed

4. Speed Limiter GPS Main functions

Ethiopia Car GPS Speed Limiter With Bluetooth Printer for Electronic Throttle Car

Positioning and Tracking: Through the on-line Positioning Platform or the cell phone to locates at times, and get the working status. You can choose the Positioning Platform by yourself.;
Triggering Emergency Alarm: When there is a emergency happened on the vehicle, you can put on the button and the installed device will send out alarm to the authorized numbers
Remote controlling oil and circuit: you can control the oil and circuit via the device by SMS in anywhere and anytime
Remote Monitoring: In anywhere and anytime, call the phone number in the device, when it connects, you can monitor the sound around 5 meter
Movement Alert: Send SMS to the device to start the movement alert function. When the vehicle is moving, the device will send the movement alert to all authorized numbers
Overspeed Alert: Send SMS to the device to start the movement alert function. When the vehicle is overspeed, the device will send the overspeed alert to all authorized numbers.
Restart the device: send SMS to resume the default of device.
Auto Track: You can set up auto track by SMS or on-line positioning platform
Mileage statistics; ACC checking; cutting off power and alarm

5. Speed Limiter Technical Parameters:

Ethiopia Car GPS Speed Limiter With Bluetooth Printer for Electronic Throttle Car

Item	Parameters
Overall Size	20.0 X 9.2 X 4.5 CM
Host Net Weight	0.4 KG
Processing chip	STC
Speed Limiting Zone	20-200 Km/H
Speed Limiting Deviation	±5Km/H
Mechanical Bearing Capacity	400N
Working Voltage	9-36 V
Rated Power Consumption	<0.3 W
Working Current	<60 mA

6 Set Speed Limiter GPRS user name and password

Some country must be set GPRS user name and password for GPRS communication. The format of set GPRS user name and password is “user + space + GPRS user name + space + GPRS password”. For example, “user name 123456”, “user” is command, “name” is GPRS user name,“123456” is GPRS password. After send SMS, tracker will reply “Set GPRS User and Password ok . ” .
