APP Fuel Monitoring Speed Governor GPS Tracking System Flame Proof Insulation Tape

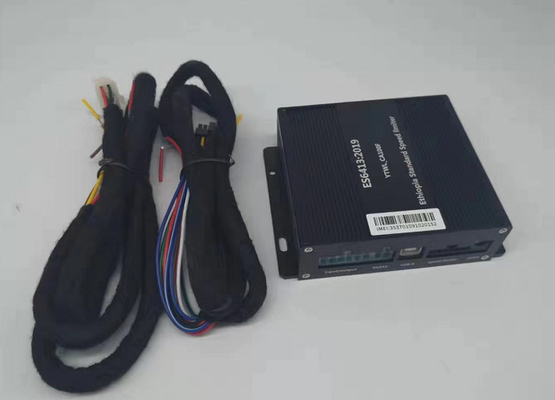

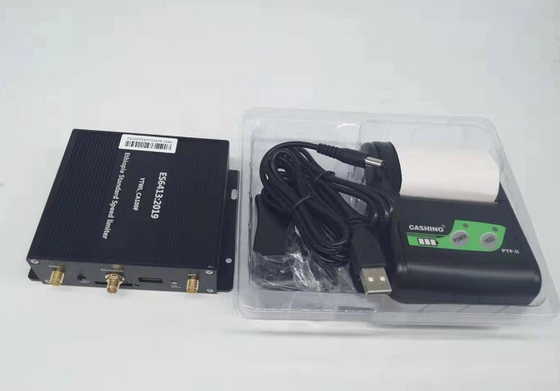

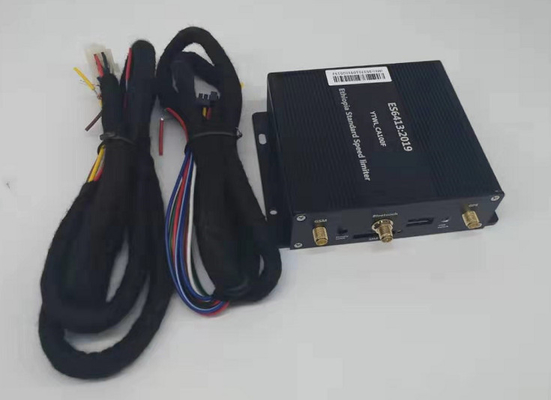

Large Image : APP Fuel Monitoring Speed Governor GPS Tracking System Flame Proof Insulation Tape Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	cartrack
Certification:	CE/ROHS/FCC/SGS
Model Number:	CA100F

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	negotiation
Packaging Details:	Packed in carton firstly
Delivery Time:	1-10 working days after received your payment
Payment Terms:	T/T or western Union or paypal
Supply Ability:	100,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Vehicle Speed Limiter	Processing Chip:	ARM
Product Accessory::	Extension Wire	OEM:	Accept
Transportation:	Air Transportation,Air Sea Express	Business Type:	Manufacturer
Working Current:	<200mA	Function:	Controlling Speed, Vehicle Speed Limiter
Highlight:	vehicle gps tracking device , car gps tracker device

Electronic Vehicle Speed limiter with GPS Tracking System,APP,Fuel Monitoring

1. Safety Requirement

All cable or harness connectors in the speedometer circuit shall be wired and sealed. All connections shall be soldered and insulated with a flame proof insulation tape of adequate length of such a color as to blend well with the rest of the vehicle wiring.
The speed limiter function or the Speed limiter device shall operate satisfactorily in its electromagnetic environment without unacceptable electromagnetic disturbance for any other device in the environment.
The speed limiter device shall pre-warn the driver, by way of a high frequency buzzer, optionally flashing light signal can be used that the set speed is being reached.This warming shall occur at 5% prior to the set speed and shall continue buzzing once the set speed is achieved/ exceeded.
When the set speed is reached, the speed limiter device shall temporarily cause the engine to lose power.Engine power shall be reinstated at a speed not less than the pre-warning switch point,which is 5% below the set speed.

2 Product Specifications

Color	Black	Application	free android and IOS app
Input Fuse	5A	CPU	TI:MSP430F5419(100MHz)
Battery	Lithium battery :400mA( working time is about 3.5 hours)	Warranty	2 years
Item Name	Top selling shine	Function	camera gps fleet tracker
Working Temperature	Anna Shi	MOQ	5 Pieces
Performance Tests	Visual Examination. The speed limiter shall be visually examined for workmanship, finish, marking and general requirements mentioned in clause 4 pertaining to the components alone Functional Test and Power Consumption, The speed limiter shall be connected to the rated voltage. The speed limiter device shall be coupled to a suitable test rig and tested for its function viz. limiting the speed at the set value. The maximum current consumption is noted. The maximum current of each type of speed limiter device shall not exceed the values specified by the manufacturer. Operating Voltage Range.	GPS Module	GPS chip set: SiRF Star III Frequency: L1, 1575.42 MHz Number of Channel: 20 Reacquisition: 0.1 sec, average Hot boot: 2 sec., average Warm boot: 38 sec., average Cold boot: 44 sec., average Altitude limit: 18000 m Velocity limit: 515 m/s
TESTS	Five samples of speed limiter device shall be provided - four samples for the performance and endurance test described in clause 8.3 and 8.4 and one sample as fitted on the vehicle for carrying out.the tests prescribed in clause 8.5. In the case of add-on or on-board system built in the vehicle, the involved system and its components should be provided separately for the performance and endurance tests	Input I/O	8 I/O input/output Port 1 main power check 1 port use to check the engine ( ACC check) 1 port use to SOS 1 analog Input port( Fuel sensor) 1 Output port ( Car engine control ) 3 Extend ports ( Input/Output control by software)

3. Speed Limiter Requirements

Electronic Vehicle Speed limiter with GPS Tracking System,APP,Fuel Monitoring

The speed limiter function or road speed limiter shall be EMCcompatible or shall have Anti-Jammer mechanism;
The speed limiter device system shall be equipped with a system which shall accept an external device for testing the speed limiter and verifying its functionality;
The speed limiter device system shall be able to be verified. Authenticated and tested whilst the vehicle is "on" the road;
The input speed signal shall be obtained from global navigating system (GNS) or speedometer vehicle speed signal or a converted speed signal from vehicle gearbox or from other separately installed sensor as deemed appropriate, mechanical actuator system, linkages etc. or any unauthorized modification and adjustment to the system;
The speed limiter devices shall be of industrial grade and designed for automotive application;
The road speed limiting device shall be designed and constructed in such a way that it can be fitted in a place not easily accessible

Electronic Vehicle Speed limiter with GPS Tracking System,APP,Fuel Monitoring

No malfunction or unauthorized interference shall result in an increase in engine power above the demanded by the position of the driver's accelerator. The malfunction of the speed limiter devices shall not affect the normal vehicular performance ;
The speed limiter function shall be independent of the condition or soundness of the speedometer ;
Speed limiter devices shall be so constructed that the vehicle may not be accelerated by the operation of the acceleration devices, such as the accelerator pedal, when the vehicle is running at its set speed;
The input speed signal shall be obtained from global navigating system (GNS) or speedometer vehicle speed signal or a converted speed signal from vehicle gearbox or from other separately installed sensor as deemed appropriate.
The speed limiting function shall not cause engine back firing,
For the purpose of anti-tampering of the setting of the "set speed" of a speed limiter device, the connection points on a speed limiter device for adjustment of "set speed" shall be properly sealed and protected from unauthorized adjustment

4. Technical Parameters:

Electronic Vehicle Speed limiter with GPS Tracking System,APP,Fuel Monitoring

Item	Parameters
Overall Size	20.0 X 9.2 X 4.5 CM
Host Net Weight	0.4 KG
Processing chip	STC
Speed Limiting Zone	20-200 Km/H
Speed Limiting Deviation	±5Km/H
Mechanical Bearing Capacity	400N
Working Voltage	9-36 V
Rated Power Consumption	<0.3 W
Working Current	<60 mA
