Product Details:
Payment & Shipping Terms:
|
| Model: | GPS Tracker Device | Place Of Origin: | Shenzhen |
|---|---|---|---|
| GPS: | Ublox CHIP | Network: | 2G 3G 4G |
| Certificate: | CE FCC RoHS | Working Voltage: | DC9V -55V |
| Material: | Explosion Proof Metal Casing | Processor: | STM32F103C8T6 |
| Warranty: | 12 Months | Standby Current: | 30MA To 40mA |
| High Light: | 40mA GPS Tracker Device,Ublox CHIP GPS Tracker Device,DC9V Portable Gps Locator |
||

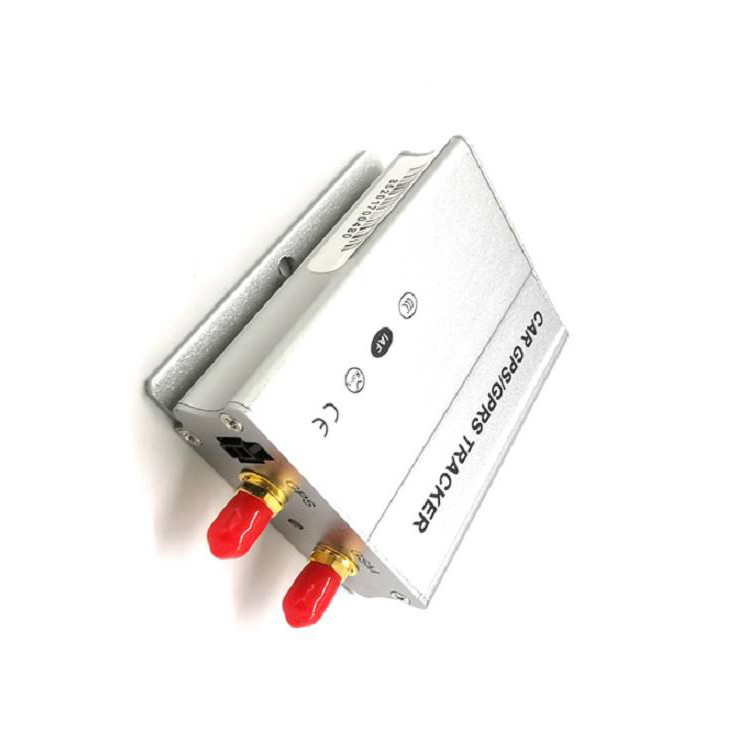

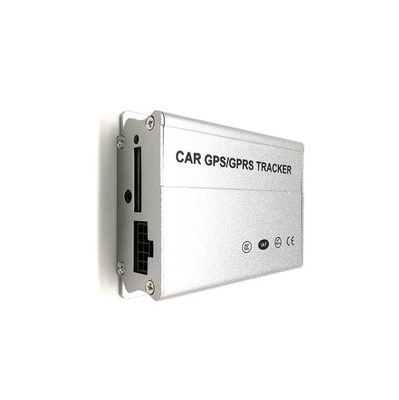

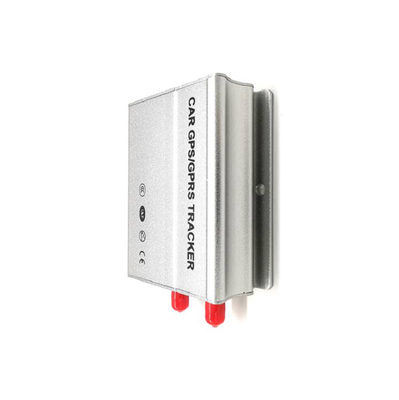

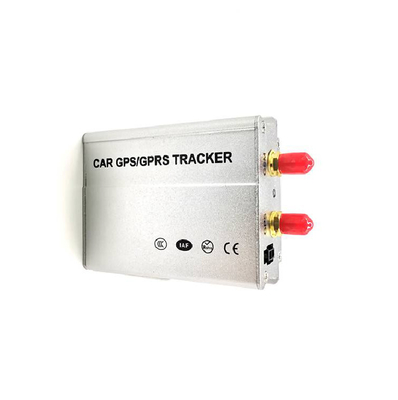

4G / 3G / 2G External Antenna GPS Tracker Device Product With Different Solutions
Main Function:
1. Positioning and Tracking: Through the on-line Positioning Platform or the cell phone to locates at times, and get the working status. You can choose the Positioning Platform by yourself.
2. Triggering Emergency Alarm: When there is an emergency happened on the vehicle, you can put on the button and the installed unit to send out an alarm to the authorized numbers.
3. Remote controlling oil and circuit: You can control the oil and circuit via the unit by SMS in anywhere and anytime.
4. Remote Monitoring: In anywhere and anytime, call the phone number in the unit, when it connects, you can monitor the sound around 5 meters from the vehicle.
5. Movement Alert: Send SMS to the unit to start the movement alert function. When the vehicle is moving, the unit will send the movement alert to all authorized numbers.
6. Overs-peed Alert: Send SMS to the unit to start the movement alert function. When the vehicle is over-speed, the unit will send the over-speed alert to all authorized numbers.
7. Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to all authorized numbers when it beyond the district.
8. Get the geography information: read the terminal's location information via SMS.
9. Read terminal address: read the terminal's address information via SMS, this function needs to be supported by the platform.
10. Auto Tracker Function: set up auto-tracking function by SMS or online tracking platform.
11. Mileage statistics, Ignition detecting, cutting off power and alarm.
12. Compatible with the original anti-theft alarm: It will send an SMS alarm after the original anti-theft alarm warning.
13. The IP setting can be modified.
14. Support LED advertisement screen. Platform centers can send advertisement messages to the car with this tracker and LED advertisement screen. (OEM)
15. Fuel monitoring function, only supports voltage type sensors. (OEM)
16. Temperature detecting function.
17. Over-Speed alarm by buzzer output. (OEM)
18. upgrade by the mobile communication network
19.RS232/485 and CAN bus port support.
20. Hardware watchdog, guarantee 24 hours of trouble-free operation
| GPS Sensitivity | -160dBm |
| GPS Accuracy | 3 – 30m |
| Network | SMS,GPRS,CDMA 1x,3G,4G |
| Way of Tracking | Cell Phone or Platform |
| Dim. | 86*56*25mm |
| Weight | 0.146Kg |
| Operation Temp. | -20°Cto+70°C |
| Storage Temp. | -40°Cto+85°C |
| Work Humidity | 5-95%RH |
| Work Voltage | DC 9V－40V |
| Battery | 3．7V / 350mAh |
| Standby Work Current | < 50mA |
| Temperature Range | -20~90℃ |
| Fuel power in voltage | 0~15.5V |
| Fuel signal out voltage | 0~6.6V |
Track Methods:
GPS Tracker Applications:
GPS Tracker Delivery Methods:
FAQ:
