Product Details:
Payment & Shipping Terms:
|
| Model Name: | TK003 | Power Input: | From DC 9V To DC 100V |
|---|---|---|---|
| MCU Chip: | MTK | Warranty: | 2 Years |
| Use: | Motorcycles | Network: | GSM/GPRS/GPS |
| Gps Accuracy: | 5-10m | Type: | Gps Tracker |
| Function: | GPS Anti-jammer Tracker | Voltage: | 9-100V |
| Frequency: | 850/900/1800/1900MHz | Screen Size: | No Screen |
| Highlight: | GT06 Protocol GPS Tracker Devices,MTK Motorcycle GPS Tracker Devices,DC 100V GPS Tracker Devices |
||

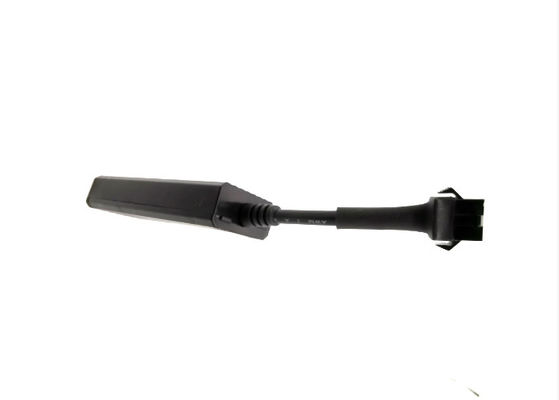

GT06 Protocol Motorcycle GPS Tracker Devices Same As G17H ET25 ST901 GPS Tracker
TK003 Product Features And Features
1 Main Parameters
GPS functions:
protocol: GT06 1 ) support ACC ignition checking ,
G-sensor : BS250E 2 ) support Relay for cutting off power/fuel
input power: 9-100V 3) built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4) built-in battery, Real time tracking.
GSM module: MT6261 5) Geo-fence, over speed alarm,
GPS module: Ublox 6) platform /APP supported
2. main functions:
3,Geo-fence setting
4,Historical route playback in 365 days
5,ACC detection
6,Remote fuel/power cut off
7,Power off alarm
8,Vibrant/shift alarm
9,Bind area supplement
10,Built in G-sensor anti-static drift
11,Bend compensation
12,Power saving mode
13. Original Vehicle low battery Alarm
3. There is 4 wires for GPS power and for ignition
red: power +
black: groud
yellow: relay
orange: ignition
GT06 Protocol Motorcycle GPS Tracker Devices Same As G17H ET25 ST901 GPS Tracker
4 Device status indicators
4.1 Connect DC 9-100V power supply and the red LED will light continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
4.2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
5.Installation for SIM of device
5.1 Preparation for the installation
5.1.1 Product Check. Open the packing box and check the device‘s model and
accessories. If the model is wrong or the accessories not complete, please
contact the dealer.
5.1.2 Choose SIM card. Please insert a SIM card to the device. Please take
dealer’s advice as reference.
5.1.3 SIM card installation. Discharge the cover of the device and uncover the SIM
card holder. Then insert the SIM card and cover SIM card holder.
5.1.4 Put back the front cover and screw it up.
5.1.5 Connect the device to the 9-100Vpower supply.(the red LED constant glow)
5.1.6 Install the device in the hidden place of the car；
The SIM card must be with GPRS function and enough deposit. If your SIM card
need input PIN when power on, please cancel it.
5.2 Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
6. Device wiring requirements
6.1 The device power supply is DC 9-100V. The red line is positive pole while
the black line is negative pole.
6.2 The negative pole of power supply connects with ground or the metals.
Please do not connect with other ground lines.
6.3 When finishing the power supply wire connection, please make the plug of
power supply to the device
Any issue please contact the local distributors.
7. TK003/CA-V4 SMS command list :
| SMS Command list | |||
| NO. | Item | SMS Commands format | Remarks |
| 1 | Check Device Status | STATUS# | |
| 2 | Check Device parameters | PARAM# | |
| 3 | Check GPRS Parameters | GPRSSET# | |
| 4 | Check Device Lat. And Log. | WHERE# | |
| 5 | Set Server IP or Domain name |
SERVER,1,domain name,port,0#
SERVER,0,IP,Port,0# |
|
| 6 | Check Server parameters | SERVER# | |
| 7 | Reset Device | RESET# | The terminal will restart after 1 minutes |
| 8 | Add SOS Number | SOS,A, Number 1,Number 2,Number 3# | |
| 9 | Del SOS Number | SOS,D,No. 1,No. 2,No. 3# | |
| 10 | Check SOS Number | SOS# | |
GT06 Protocol Motorcycle GPS Tracker Devices Same As G17H ET25 ST901 GPS Tracker
Our Company:
Shenzhen Cartracker technology company was founded in 2009, Our factory located in
Cuishan industrial park of Shenzhen China,we have about 2000 square meters of building
area and more 200 production staff, a team of 25 software and hardware engineers and a 12
people super sales team, during the last 8 years rapid development, we are enter the top 10
influential GPS Tracker suppliers in China, in China, we have many cooperation with super
government projects meanwhile our products sells to a large number of customers from more
than 150 countries.
FAQ:
1. Where is your factory?
Answer: Our factory is in Shenzhen City China.
2. Do you test all your products when your product them?
Answer: Yes, of course, we test all before ship them.
3. Do it contain built-in battery for your GPS Tracker product?
Answer: Yes,this model contains one 180mAh Li-ion battery.
4. What kinds of GPS Chip you use?
Answer: we used Ulbox Chip.
other types GPS tracker see following pictures:
