| Protocol: | GT06 | Band: | Quad Band |
|---|---|---|---|
| Application: | Car Vehicle Motorcycle E-bike | Input Voltage Range: | 9-90V |
| Battery: | 50 Mah Rechargeable Li-ion Battery | Relay: | DC12V / 24V Relay |
| GPS Module: | TD1030 | GPRS Module: | MT6261 |
| High Light: | automobile gps tracker,automotive gps tracker |
||
4 Wires Car GPS Tracker G17H Support ACC Ignition Checking And Relay
1. Specification:
| Format | Length(Byte) | Example | ||
| Information Content | Start Bit | 2 | 0x78 0x78 | |
| Packet Length | 1 | 0x1F | ||
| Protocol Number | 1 | 0x12 | ||
| GPS Information | Date Time | 6 | 0x0B 0x08 0x1D 0x11 0x2E 0x10 | |
| Quantity of GPS information satellites | 1 | 0xCF | ||
| Latitude | 4 | 0x02 0x7A 0xC7 0xEB | ||
| Longitude | 4 | 0x0C 0x46 0x58 0x49 | ||
| Speed | 1 | 0x00 | ||
| Course, Status | 2 | 0x14 0x8F | ||
| LBS Information | MCC | 2 | 0x01 0xCC | |
| MNC | 1 | 0x00 | ||
| LAC | 2 | 0x28 0x7D | ||
| Cell ID | 3 | 0x00 0x1F 0xB8 | ||
| Mileage statistics | 4 | 0x00 0x00 0x00 0x00 | ||
| Serial Number | 2 | 0x00 0x03 | ||
| Error Check | 2 | 0x80 0x81 | ||
| Stop Bit | 2 | 0x0D 0x0A | ||
For details see Data Packet Format section 4.1.
For details see Data Packet Format section 4.2.
For details see Data Packet Format section 4.3.
| Format | Length(Byte) | Example |
| Year | 1 | 0x0A |
| Month | 1 | 0x03 |
| Day | 1 | 0x17 |
| Hour | 1 | 0x0F |
| Minute | 1 | 0x32 |
| Second | 1 | 0x17 |
Example: 2010-03-23 15:30:23
Calculated as follows: 10(Decimal)=0A(Hexadecimal)
3 (Decimal)=03(Hexadecimal)
23(Decimal)=17(Hexadecimal)
15(Decimal)=0F(Hexadecimal)
50(Decimal)=32(Hexadecimal)
23(Decimal)=17(Hexadecimal)
Then the value is: 0x0A 0x03 0x17 0x0F 0x32 0x17
The field is 1 Byte displayed by two hex digits, wherein the first one is for the length of GPS information and the second one for the number of the satellites join in positioning.
Example: if the value is 0xCB, it means the length of GPS information is 12 and the number of the positioning satellites is 11.
(C = 12Bit Lenght ,B = 11 satellites)
Four bytes are consumed, defining the latitude value of location data. The range of the value is 0-162000000, indicating a range of 0°-90°. The conversion method thereof is as follow:
converting the value of latitude and longitude output by GPS module into a decimal based on minute; multiplying the converted decimal by 30000; and converting the multiplied result into hexadecimal.
Example: 22º32.7658’=(22X60+32.7658)X30000=40582974, then converted into a hexadecimal number
40582974(Decimal)= 26B3F3E(Hexadecimal)
at last the value is 0x02 0x6B 0x3F 0x3E.
Applications:
1. Bus/Police Car/Taxi
2. Container/cargo/asset tracking
GPS lock is robust lock together with GPS/GSM/3G and RFID technology, with build-in 6000mAh battery, it self powered to monitor all kinds of access point, special for cargo/asset/container/trailer and truck real-time tracking and monitoring.
1.Robust lock, physical protection
2.Real-time tracking and remote locking
3.Real-time lock location and status
4.Alerts notify for break-in attempts
5. Feature rich on-line platform provides real time management, analysis reports, alerts, lock status
6. Easy install and use

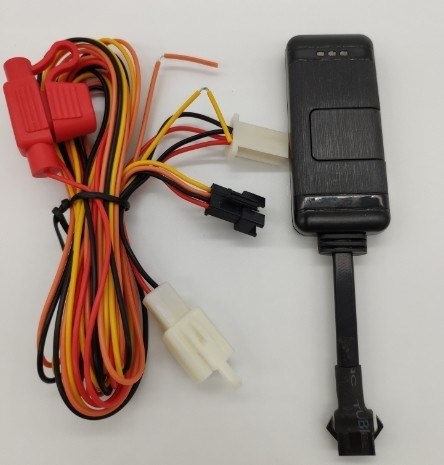

G17H parameters
G-sensor : BS250E
input power: 9-90V
power IC: SL3036H
GSM module: MT6261
GPS module: TD1030
built-in battery
support ACC ignition checking ,
support Relay for cutting off the power/fuel
built-in GPS antenna: 18*18*4 mm
Real time tracking.
Geo-fence, over speed alarm, main power off alarm, vibration alarm.
Demo:
User:zijiche
Password: 123456
4 Wires Car GPS Tracker G17H Support ACC Ignition Checking And Relay
Gurantee:
1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. Standard configuration
1) Portable GPS Device 1 pcs
2) Power lines 1 pcs
Contact Person: Bryant
Tel: +86-13560742132
Fax: 86-0755-29437724
