Weight: | 30g | 3G Frequency: | WCDMA 1800MHZ 2100MHZ |
---|---|---|---|
Network: | 3G/4G | Warranty: | 1 Years, |
Input Voltage: | DC 3-9-80V | 3G: | Support |
GPS: | Ublox7 | 3G Network: | Yes |
Waterproof: | IP65 | Battery: | 300mah |
Highlight: | 3g gps tracking,gps 3g tracker |

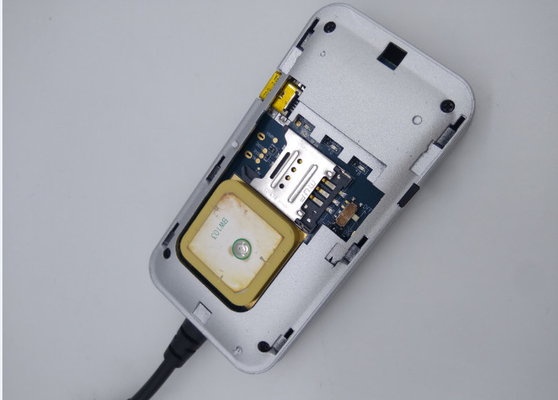

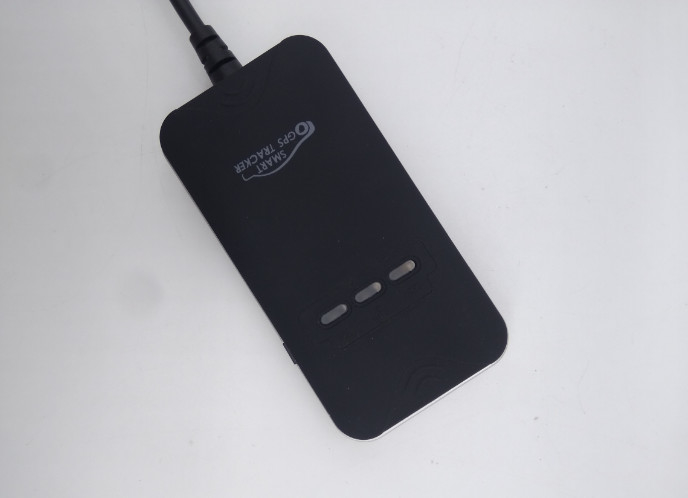

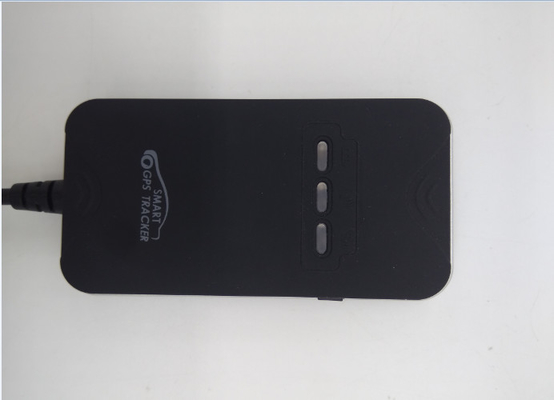

Car 3G GPS Tracker Built-in Battery 300Mah And Triaxial Acceleration Sensor
Feature list:
GSM 850 / 900 / 1800 / 1900 MHz Quad-band
WCDMA 850/900/1900/2100 MHz
WCDMA+EDGE+GPRS wireless network
Real time position & tracking
SOS alarm
Geo-fence alarm
Mileage calculator
Air update
Low Battery protection
Remote Tele-cut off (petrol / electricity) function
Support ACC detection, real-time reporting car status
Built-in acceleration sensor for vibration/displacement/low battery/power off alert alarm
Multi ways to query position: SMS,APP ,Internet
Basic Specifications:
Working Voltage: | 12VDC/24VDC |
Standby Current | <3mA |
Work current : | <120mA |
GPS positioning accuracy | 15M |
GSM positioning accuracy | 100M |
GPS Frequency | 1575MHz |
GSM Frequency : | 850/900/1800/1900MHz |
Hot/warm/cold start time : | <3S,<1S,<60S |
Dimensions (mm) : | 68.0X33.0X10.5mm |
Weight : | 35 g |
Versions Optional
1.Voltage Optional
1) Input Voltage : 9-80v
Used widely for vehicle and other moving objects tracking: Electric vehicles, Motorcycles,Cars,Trucks.
2.Connect Cable Optional
4pins cable (Picture showed is 4 pin cable)
Connect Power cable, relay
Technical Parameters:
1. GSM: 850/900/1800/1900 Quad band.
2. GPRS: Class12. TCP/IP
3. Working Voltage: DC12V
4. Working Current: about 22mA( DC12V)
5. GPS Locating Time: Cold start about 38s,Warm start about 32s, Hot start about 2s
Power cut off alarm:
When GPS device be remove from vehicle, or power with be cut off, it will send alarm to user by SMS and system.
Over speed alarm:
Real time remote monitor driver behavior, send alarm information to manager when vehicle over speed.
Back up battery:
If GPS device be removed, it will can send alarm by back up battery and keep tracking location for about 4hours.
Geo fence alarm / drive area limit alarm:
Set up a Geo -fence for the GPS to monitor it`s movement area, the GPS will alarm when vehicle out of this area.
Audio monitoring:
You can call the GPS device and listen the vehicle inside voice when driver unknow. The GPS device not vibrate or ring
Mileage statistics:
Calculate vehicle driving mileage in a period of time.
Applications :
4S shop , car company , truck company , motorcycle company , GPS producer , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , car repair shop,taxi company .
Gurantee:
1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. Standard configuration
