|Model Name:||Motorcycle GPS Tracker||Color:||Gray|
|Device Size:||67*34*12mm||Input Voltage:||DC12V And 24V|
|Function:||Vehicle Tracking Solution||Applications:||Truck And School Bus|
|Built In Battery:||120mAh Battery||Network:||GPRS GSM|
|GSM Chip:||MTK Chip||Language:||English|
|Track Method:||Wechat And Mobile Phone|
gps motorcycle tracker,
motorbike gps tracker

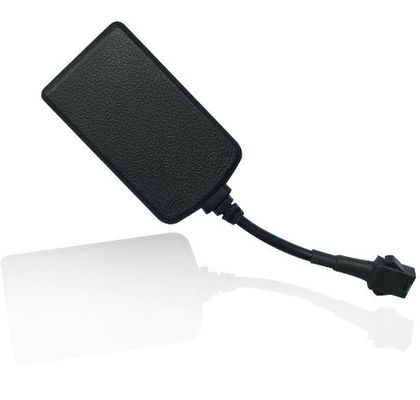

High Accuracy Mini Motorcycle GPS Tracker For Vehicle Tracking Solution
Motorcycle GPS Tracker supports remote control engine on and off,Power off alarm function.
It can be use for motorcycle anti theft. And the work current is very small so it can work for longer time with the same battery of motorcycle.
Motorcycle GPS Tracker contains three LEDs, Blue LED,Red LED and Green LED.
Blue LED stands for GSM signal status. When it flashes, GSM Signal is normal. if it always on, stands for can not receive GSM signal or GSM module not work normally.
Red LED stands for battery status.
Green LED stands for GPS Signal status. when it flashes, stands for GPS Device can receive the satellite siganl , or if it always is on, stands for can not receive GPS Signal normally or No GPS Signal,or GPS module can not work normally.
Motorcycle GPS Tracker Applications:
Motorcycle GPS Tracker device supports wide input voltage from DC9V to DC80V. So you can install it into truck,police car,tax and so on.
Motorcycle GPS Tracker device installation diagram:
Motorcycle GPS Tracker device power cable contains four lines and one fuse for car security.
Red Line and Black Line are for power supply.
Yellow line is for relay and control engine on or off.
Green line is for ignition status detection.
and you can use DC12V or DC24V relay according to your vehicle voltage.
The Best Place you can install.
1. Please insert 2G GSM SIM Card and open GPRS Function.
2. The GPS Antenna should face up to the sky.
3. Don't install it under metal or the GPS Tracker device can not receive GPS Signal better.
SMS Commands for Motorcycle GPS Tracker device.
1. change the IP and Port for server.
the SMS Command format is #6666#IP#184.108.40.206#9891#
2. Set APN of your SIM Card supplier.
The command is #6666#sapn#cmnet#user name#password#
cmnet stands for the APN name, if there is no user name and password, it will bank.
3. Set time zone for different countries.
The command is #6666#STZ#E8# E8 stands for the new time zone.
4. Set the time interval in moving status.
5. Set the time interval in static status.
6. Restart Motorcycle GPS Tracker.
7. Check the motorycle GPS Tracker information
Motorcycle GPS Tracker Certificate:
Motorcycle GPS Tracker Factory:
GPS Tracker Product Box:
Box Size: 14mm*9mm*6mm
