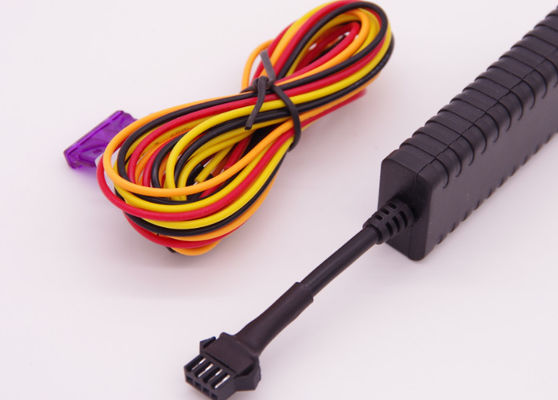

CE FCC Approved 180mAh Battery E - Bike GPS Tracker Support Power Off Alarm
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Movement Alert 1: | Move123456 Move Ok | Initialization: | 2G GSM Begin123456 Begin Ok |
|---|---|---|---|
| Overspeed Alert 1: | Speed123456 080 Speed Ok | Add Number: | Admin123456 13612345678 Admin Ok |
| Geo Fence Alert1: | Stockade123456 Coordinate;coordinate | Delete Number: | Noadmin123456 13612345678 Noadmin Ok |
| Restart Tracker: | Reboot123456 System Will Reboot | Change Password: | Password123456 138138 Change Password Ok |
| Enquiry Position: | Position GPS Info | Resume Password: | Resumepassword Resume Password Ok |
| Auto Track 2: | Noat123456 Cancel Auto Track Ok | Control Oil 1 Temp.: | Stopoil123456 Stop Oil Ok |
| Set Call Response 1: | Tracker123456 Tracker Ok | Control Oil 2: | Supplyoil123456 Supply Oil Ok |
| Control Circuit 1: | Stopelec123456 Stop Electricity Ok | Control Circuit 2: | Supplyelec123456 Supply Electricity Ok |
| Set Monitor Mode 1: | AllMonitor Set All Monitor Ok | ||
| High Light: | car gps locator,automotive gps tracker |
||
CE FCC Approved 180mAh Battery E - Bike GPS Track Support Power Off Alarm
Instructions:
Setting the electronic fence can limit the operating range of the device. Once the device is running beyond the setting range, the device will automatically send the information back to the authorization number.
Set: When the car stays in a place for 3-10 minutes, you will be able to send SMS instructions "stockade + password + space + latitude, longitude; latitude, longitude" to the device to set a limited range, once the device is out The device will send the message "stockade! + Latitude and longitude" to the authorization number.
Note: The first latitude and longitude is the coordinates of the upper left corner, the second latitude and longitude is the coordinates of the lower right corner. Once the limit is exceeded, the device will send an alarm message every 3 minutes.
Cancel Settings: Send SMS command "nostockade + password" to cancel this function setting.
5. Shift alarm
Set: When the device stays in a place for 3-10 minutes, you can send the SMS command "move + password" to the device, and the device will reply "move ok!" Once the device is out of range (the device default distance is 200 meters) , The device will reply to the message "move + latitude and longitude" to the authorization number. Once the limit is exceeded, the device will send an alarm message every 3 minutes.
Cancel Settings: Send SMS "nomove + password" to cancel this feature setting.
6 speed alarm
Set the message: send the SMS command "speed + password + space +080" to the device (assuming the speed is 80km / h), then the device will reply "speed ok!". When the device runs faster than 80km / h, this device will send the message " speed + 080! + latitude and longitude "to the authorization number
on. The device will send an alarm message every 3 minutes
Cancel Settings: Send SMS "nospeed + password" to cancel this feature setting.
Note: Speed alarm is recommended to set the speed of 30 km / hour or more, if the speed is too low may result in GPS signal drift and not accurate enough.
Off the oil off
1 send the SMS command "stop + password" to the vehicle terminal of the device. After receiving the instruction, the vehicle terminal will perform the oil circuit disconnection operation directly and reply to "Stop engine Succeed". Once the vehicle terminal receives the electrical / oil disconnect command, the vehicle terminal will memorize the status until the center releases the recovery command.
2. Restore oil and electricity
Send SMS command "resume + password" to the vehicle terminal, the vehicle terminal to accept the directive, the vehicle directly to the oil circuit disconnection operation, and reply to "Resume engine Succeed". Once the vehicle terminal has been disconnected from the vehicle, the vehicle terminal will remember the status until the center releases the recovery command.
This Mini Size GPS Tracking Units model CA-V4 is our newest model, the size is like a lighter, very easy to hidden when install, and 9-100V widly working voltage makes it can widly used in motorbike, Electric bike, car, trucks etc. Meanwhile, The price is also very competitive, this small unit is very suitalbe for largely quantity marketing. If you are a wholesale or GPS Tracker distributor, this is very suitable model for you.
Performance Parameters:
|
Content |
Specs. |
| Name | Motorcycle GPS Tracker |
|
Network |
2G GSM GPRS |
|
Band |
850/900/1800/1900Mhz |
|
GPS chip |
UBLOX |
|
GPS sensitivity |
-159dBm |
|
GPS accuracy |
10m |
|
Time To First Fix |
Cold status 38s Warm status 15s Hot status 1s |
|
voltage input |
9－100V input
|
|
Battery |
Build-in 3.7V 140mAh Li-ion battery |
|
Storage Temp. |
-40°C to +85°C |
|
Operation Temp. |
-20°C to +55°C |
|
Humidity |
5%--95% non-condensing |
| Size | 7.6cm x 2.6cm x 1.3cm |
| Weight | 0.067kg ( Battery and Power cord Included ) |
| Waterproof | IP67 |
Car GPS Tracker Mini GSM GPRS Motorcycle GPS Tracking Device Cut Off Engine Stop Car
APPLICATONS
- Motorcycle Tracking
- E-Bikes Tracking
- Car tracking
nstructions:
GPS&GSM Quad-band Real-Time Tracking & location And history Track playback ( use)
Wide input voltage range: DC 9-24V
Build-In vibration sensor, Smart Anti-theft
External Loudspeaker, used In Phone calls or Alarms case
Movement Alar
External Microphone realize Remote Monitoring And intercom, used In Voice Monitoring case
External SOS Button And Alarm And speakers
External Relay realize Remote Enigine power & oil off
Alarm function: Speeding, Vibration, Geo-fence And illegal shift Alarm By Real-Time SMS
Built-In Battery (support overtime standby & Alarm when Electricity Cutting or lower power)
Acc Ignition Detection, Vehicle status notification
Firmware Auto recovery function
For IOS, Android APP Software In set, also support WeChat Tracking on line
23. Set ACC open and close send SMS notify
You can set the SMS notify of when ACC on and off. The format of set is “accnotify + 1 or 0”. For example “accnotify 1” stand for when ACC on and off send SMS to authorized numbers. “accnotify 0” stand for close send SMS notify. In order to use this function, you must set authorized numbers.
24. Get GPS Info with Google Format
You can get latitude and longitude with Google website format. So you can open map directly by mobile. The format of SMS is “google”. After you send SMS, tracker will reply GPS info with google website format.
25. Set call reply SMS format
You can set reply SMS format after you call tracker. The format of SMS is “geosms + value”. The SMS of “geosms 1” set reply SMS format as “position”. The SMS of “geosms 2” set reply SMS format as “google”.
◆Installation diagram of The Tracker
◆GPS Vehicle Tracker Installation
GPS tracker should be installed by technical professional of local service centre. Without permission, the user cann’t repair and move the tracker randomly. If users do, any unfortunated damage should be compensated by himself.
Installation steps (caution: the following installation should under no power, otherwise will be dangerous)
1.Power supply line: The red wire connects 12V“+”;Black wire connects to 12V“-”
2. Wire for cutting off oil of the tracker
Yellow wire connects the relay pin 86; 85 pin connect to 12 V DC , 87a pin and 30 pin in series power supply circuits. Caution: Wrong connection of yellow wire will damage the tracker.
3. Wire for cutting off circuit of the tracker
White wire connects relay pin 86; 85 pin to 12 V DC, 87a pin and 30 pin are in series power supply circuits. Caution: Wrong connection of yellow wire will damage the tracker.
4. Emergency triggering alarm
The blue wire connects the positive of the alarm button, and the black wire connects the negative of the alarm button.
◆Application
- Vehicle Rental/Special Tracking System
- Finance and Insurance Business Tracking System
- Car Commanding and Dispatching System
- Heavy Construction Vehicles Tracking Device
- Shipping Cargoes Tracking
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order
