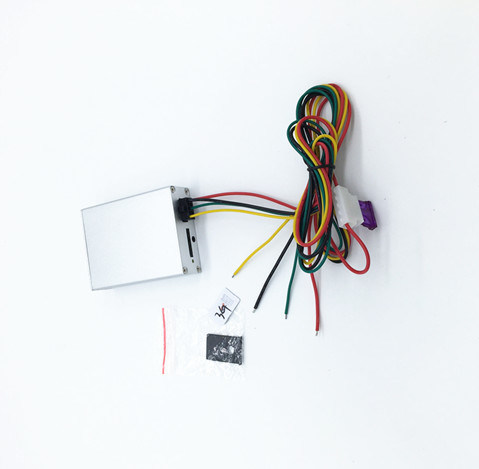

GPS Tracker Device For 3G WCDMA Network And Full Band Communication Module
1. Main Functions
A. Real Time Tracking: any time you can check the current positioning of the device.
B. Triggering Emergency Alarm: this is one optional function, if you need it, please connect one SOS button.
C. Remote Cut Off Engine: first you have to connect it to one relay. then control the engine via SMS command.
D. Remote Monitoring Voice: needs one microphone to finish it.
E. Auto Track
F. Mileage statistics
G. Ignition Status Display: Green line needs to connect to ignition line of veicle
H. Support Fuel Temperature Sensor (Optional): it can display the fuel percentage
I. SOS Alert And Overspeed Alert
2. Specification
Content | Spec |
Size | 87*57*25mm |
Weight | 459g |
Network | WCDMA |
Band | 2100MHZ |
Input Voltage | DC9-36V |
Humidity | 5%--95% non-condensing |
Operation Temp. | -20°C to +70°C |
Storage Temp. | -40°C to +85°C |
Standby work current | < 30mA |
Battery | Chargeable changeable 3.7V / 1.2Ah Li-ion battery |
Time To First Fix |
Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
3. Installation
CA-V1-3G GPS tracker should be installed by technical professional of local service centre. Without permission, the user cann’t repair and move the tracker randomly. If users do, any unfortunated damage should be compensated by himself.
Installation steps
(caution: the following installation should under no power, otherwise will be dangerous)
1. Power supply line:
The red line is power positive it should be connected to DC9-36V;
The Black line is power negative line. it connects to Ground.
2. Wire for cutting off oil of the tracker
Yellow line is the control line for Oil circuit, you need to connect it to one relay. the detailed wire diagram please refer to instruction.
3. Wire for cutting off circuit of the tracker
White line is the control line of engine on or off. you also need to connect it to one relay and control engine via relay and SMS commands.
4. Emergency triggering alarm
The blue wire connects the positive of the alarm button, and the black wire connects the negative of the alarm button.
4. Main Functions Commands
A. Geo-Fence
Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
Set up: The user can Send SMS “stockade + password + space + MinLatitude, MinLongitude; MaxLatitude, MaxLongitude” to unit to set the restricted district. In case of breach, it will send SMS “stockade! + geo-info” to the authorized numbers.
For example send SMS “stockade123456 22.548123, 114.081234; 22.549123, 114.082234” to the unit.
Remark: The first latitude & longitude is coordinate of min of the Geo-fence, while the second latitude & longitude is the coordinate of the max. It will alarm one time in each setting.
Cancel: Send SMS “nostockade + password” to deactivate this function.
This function will be out of effect after the unit moves outside the district.
B. Hisotory track
This function is used by many customers. when you want to check the routes in one period. you can click history track button then you can choose the time you want to check. at last please click the playback button to check the routes.
C. SOS Alarm
SOS function is one optional function. you need to connect one SOS button to our device. when you need to tell administrator and help you. please press this button for more than three seconds. then administrator can receive sos alarm message and on the platform there will be sos alarm voice.
