Ethiopian Standard Vehicle Auto GPS Electronic Speed Limitor With Realtime Tracking
What is a GPS speed Limiter
A gps speed limiter is a combination of vehicle GPS tracker and vehicle speed limit technology. GPS integrated speed limiter device is designed to limit the maximum road speed of motor vehicles by control of engine power.
Which country needs GPS integrated speed limiter?
Currently Kenya and Ethiopia in Africa has published standards, respectively KS 2295-1:2018 in Kenya and ES 6413:2019 in Ethiopia.
Difference between Kenya and Ethiopia standard:
In Kenya, wired portable printer is required.
In Ethiopia, wireless portable printer is required.
Technical Parameter:
Content | Specs. |
Dim. | 117*92*31 (mm) |
Weight | 280g |
Network | GSM/GPRS/GPS |
Band | 850/900/1800/1900MHz |
GPS chip | U-blox |
GSM/GPRS Module | SIM800C |
Bluetooth Module | BT360I |
CPU | STM32F105RBT6 |
Power IC | TD1509-ADJ |
Anti-jamming | Strengthened Anti-jamming |
GPS sensitivity | -159dBm |
GPS accuracy | 5 m |
Work Voltage | DC 9V-36V |
Battery | Rechargeable 3.7V / 1000mAh Li-ion battery (Customizable) |
Standby work current | < 40mA |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +70°C |
Humidity | 5%--95% non-condensing |
Speed Limit Scope | 40-120KM/H |
Application Field:
1) Vehicle Commanding and Dispatching System;
2) Heavy Construction Vehicles Tracking Device;
3) Dangerous goods transportation;
4) Passenger Car Management;
5) Logistics vehicle management.
6) Oil Tanker Monitoring and Management

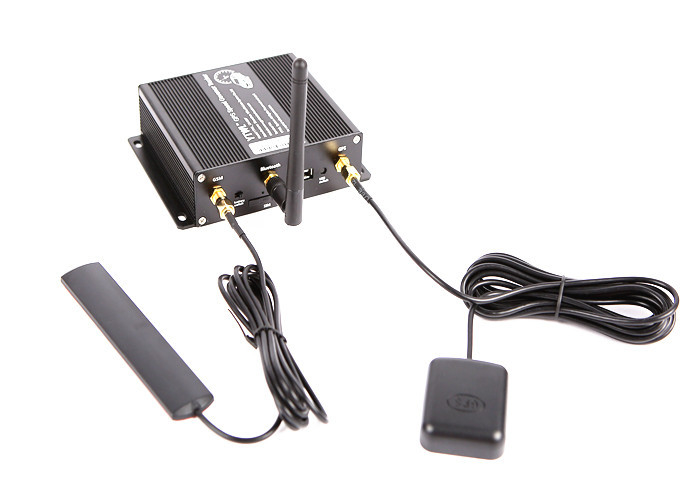

Parts list:
1.Power wire
2.Speed limit wire
3.Buzzer
4.GPS Antenna, GSM Antenna, SIM Card Slot

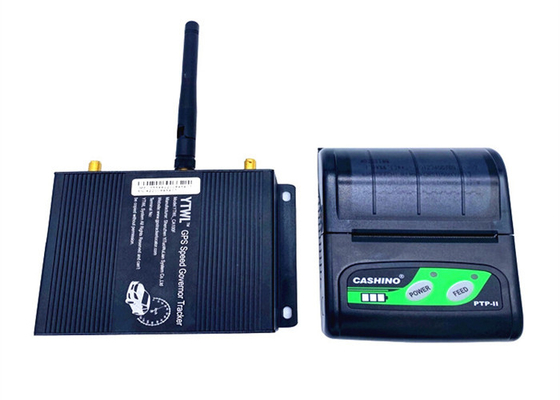

5.Bluetooth printer (optional)
Ethiopian Standard Vehicle Auto GPS Electronic Speed Limitor With Realtime Tracking
FAQ
Q1. What is a GPS tracker integrated speed limiter?
It's a GPS tracking device integrated speed limit function,include the functions real time GPS car tracking,fleet management and limit a pre-set maximum speed. All these speed data can be recorded and downloaded by USB disk.etc.
It's produced according to Ethiopia transport authority, Kenya and Nigeria and other African countries' requirements.
Q2.Why do we install GPS speed limiters?
It's mandatory enforcement to install GPS speed limiter once it is published by one country's law.
For example, Ethiopia,Kenya,Nigeria,Rwanda and other Africian countries.
Q3. How does the GPS speed limiter work in a vehicle?
There are mainly 3 types of GPS speed limiter.
1. Normally we just use fuel type, in order to control the feed of fuel pump.
2. Second method is using an adjustable solenoid valve to lock/unlock the valve working like a relay.
3. the third one is using a electronic accelerator controller.
Most of the time, we just need to use the first one. Fuel type of GPS speed limiter.
All these speed control ways have a real time GPS car tracking function basically.
Q4. How many types of GPS Speed Limiter do you have?
1. GPS tracker with integrated speed limiter
2. GPS tracking speed limiter
3. GPS based speed limiter
Q5. What's functions do your GPS speed limiter include?
Real time GPS car tracking, online fleet platform management, speed limit, printing over speed records at interval of 5 seconds, etc.
Q6. Which countries have you sold to regarding to GPS speed limiter?
Ethiopia,Kenya, Nigeria,Rwanda,etc.
