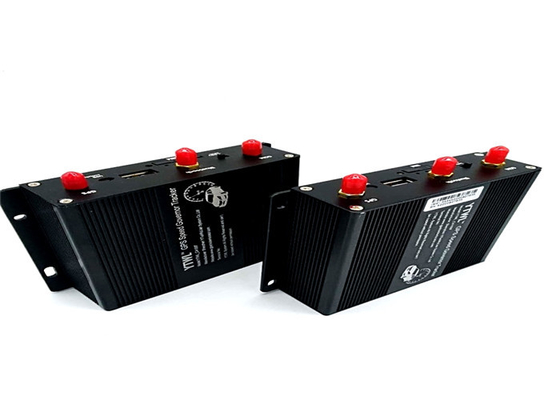

900Mhz 120KM/H Gps Speed Limiter For Truck / Forklift

YTWL Ethiopia CE/ IOS Gps Speed Limiter/Speed Governor For Truck/Forklift

Speed governor or speed limiter is a device designed to limit the speed of vehicle like truck, schools bus, car forklift and so on. Most of the speed governors are fitted because of the government regulations.

Our compact and reliable Road and Engine Speed Limiter improve the safety of your vehicle.

Get Cheap Price Speed Limiter. Huge Saving. Call Now. Good Quality. OEM/ODM Accept. The Best After Sales Care. Continuous Innovation. OEM: Support. ISO9001 Certified. Types: Buses Speed Limiter, Truck Speed Limiter, Forklift Speed Limiter, Forklift Speed governor.

Summary of Requirements

These items must be installed and tested on the respective Agency’s vehicles; and training on the operation and maintenance of the system (if applicable) must be provided to the staff of these organizations. The bidders/ potential suppliers need to be among the vendors/ suppliers Authorized by the Federal Transport Authority of Ethiopia to provide the supply and installation of the Speed Limiter.

Technical Parameter:

1. Product Description

2. Application Field:


Fixed Speed Control
Customized fixed maximum top speed limit that increases the safety and fuel economy of your fleet.

Reverse Speed Control
Limits a vehicle's top speed in reverse. Limiting reverse top speed increases safety during a statistically high-risk category of operation.

Acceleration Control
Controls the rate at which the vehicle is able to accelerate. Inhibiting aggressive driving behaviors, increasing safety, and greatly improving fuel economy.

Upgradeable to ISA
Upgrade your VMS from fixed top speed limiting to variable top speed limiting at any time with our optional SpeedIQ kit. The upgrade offers even goverride Mode
Configurable overrides by a variety of input methods. This capability is especially useful for Emergency Services and other who require access to full speed and acceleration at times.

YTWL Ethiopia CE/ IOS Gps Speed Limiter/Speed Governor For Truck/Forklift

Analysis of the content of tcp reply:

(TP121.201.110.106P7000DD000019171223244F0000S0014R0000ON30OFF60VJun 12 2020A:CMNET,p450,s80,c15, 0.360V, 0.720V,12.43V,a0,G00,-59 dbm)

TP121.201.110.106 P7000: IP and port

DD000019171223244: device ID number

F0000S0014: upload data fail 0 times, successful 14 times

R0000: memory data is 0

ON30OFF60: interval of acc on is 30 seconds, and acc off is 60 seconds

VJun 12 2020: firmware of the devices is JUN 12 2020

A:CMNET: the APN is CMNET

p450: Pulse coefficient is 450 (If the pulse coefficient is larger, the speed will be smaller)

s80: speed limiter max =80km/h

c15: For mechanical throttle, the time to disconnect the fuel line is 15 seconds

0.360V, 0.720V: Two throttle voltage values for electronic throttle vehicles

12.43V: vehicle voltage values

a0: a0 is acc off, a1 is acc on

G00: G00 means GPS not fixed, G10 means 10 satellites found

-59 dbm: GSM signal

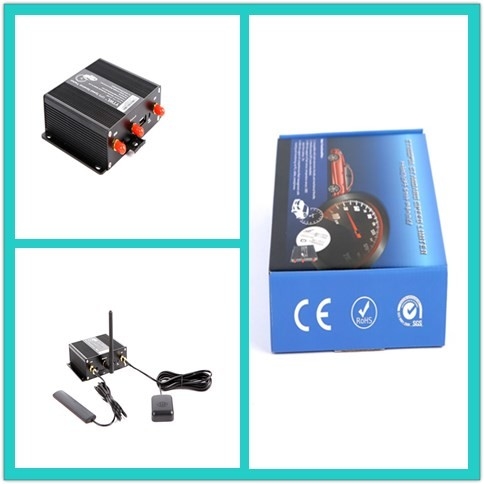

4. Installation:

1) Product Accessory:

①　Power wire

②　Executor wire

③　Extension wire

④　Speaker

⑤　GPS Antenna

⑥　GSM Antenna

⑦　SIM Card Slot

⑧　User Manual

Following lines are indispensable in installation:

6: Brown line

8: Orange line, the line of the buzzer

9: Gray line, pick up the pulse line of the original car, connect the pulse line speed limiter, the speed limit function will not have too much delay, use GPS signal speed limit, there will be a delay of about 2 seconds

10: ACC line

11: Power ground

12: Positive power supply

Limp mode testing

First, send command: openpulse*123456 When cut off the car speed pulse line, the car will be limit to max speed is 30km/h, this speed will use the GPS speed.

When remove the whole white head connector, the car also will limit to 30km/h

Note: If it is a mechanical throttle car, the white wire of the BH (black head harness) must also be connected to the relay. When the WH (White head harness) is removed, the white wire will control the relay to limit the speed, and the black wire of BH also need to connect the GND of the car

Bluetooth printer:

Printer power light--Blue light if it is steady light indicates Bluetooth connection is normal, if blue light is off, Bluetooth is not connected

5. ADD GPS device to the platform

  About platform

1. Load the GPS platform: www.gps-go.com

User:xxxx password:123456

Note: xxxx is the platform account, need to contact with salesman to get this account name and password

For APP, search gps-go in google store or download from this QR:

2 create the account or user:

3. Track : you can see the real-time location of the vehicle

Technical specifications for Goods

· Speed Limiter Device with Integrated GPS: As per standard set by Ethiopian Standard Agency Standard Road Vehicle-GPS integrated Speed limiter Devices Requirements

· To provide Warranty for two years for any problem that arise due to the device internal problem but this doesn’t include for damage due to external force , extreme heat, fire or voltage of electricity or when the devise is opened by any other person other than the company’s technician

· Speed Limit Equipment competency Verification Certificate is approved by the Ethiopian Road Authority to supply and install Speed Limiter with integrated GPS system.

· Committed to comply with Human rights and labour issues (e.g. fundamental principles and rights at work, occupational health and safety, fairly traded goods, etc)

 After-sale service:

Warranty statement:

The specification are subject to modification without notice.

If the appearance and color of the product is changed, please take the actual product as the standard.

This warranty card is only applicable to the following listed IMEI/ID machine.

Please keep this warranty card, and please present this card and the original purchase receipts when repair service.

This is the basic certificate of warranty, please fill in this card carefully and keep it well.
