Model Number: | CA100F | Weight: | 280g |
---|---|---|---|
Tracking System: | Web Platform Andoid IOS APP | Working Voltage: | DC 9-36V |
Application: | Car Truck Bus Taxi Van | GPS Accuracy: | 5m |
Brand Name: | YTWL Or Blank | Warranty: | 24 Month |
High Light: | 120KM/H GSM Gps Speed Limiter,CA100F Gps Speed Limiter,1000mAh Bus Speed Limiter |
Speed Limiter For Truck Bus Over Speed Control Realtime Speed Data Extraction

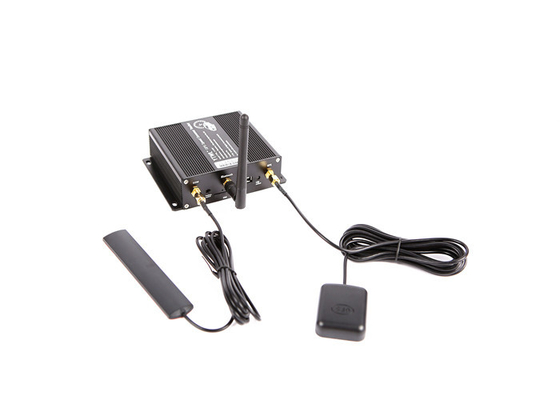

Vehicle speed limiter CA100F is an intelligent terminal equipment which can realize precise speed limiting for vehicles. It is not only a speed limiter but also a GPS Tracker. Speed control precision is very high and the performance is reliable. It will not affect the big throttle start nor the power torque, stable and reliable. It only limits the maximum speed and the vehicle will not stall during speed limiting, and ensure the throttle pedal free movement in the right speed range.
Technical Parameter:
Network | GSM/GPRS/GPS |
Band | 850/900/1800/1900MHz |
GPS chip | U-blox |
GSM/GPRS Module | SIM800C |
Bluetooth Module | BT360I |
CPU | STM32F105RBT6 |
Power IC | TD1509-ADJ |
Anti-jamming | Strengthened Anti-jamming |
GPS sensitivity | -159dBm |
GPS accuracy | 5 m |
Time To First Fix | Reacquisition 0.1s |
Cold status 45s | |
Warm status 35s | |
Hot status 1s | |
Work Voltage | DC 9V-36V |
Battery | Rechargeable 3.7V / 1000mAh Li-ion battery (Customizable) |
Standby work current | < 40mA |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +70°C |
Humidity | 5%--95% non-condensing |
Speed Limit Scope | 40-120KM/H |
Sound Buzzer | 5% Below |
Following lines are indispensable in installation:
1: Brown line
2: Orange line, the line of the buzzer
3: Gray line, pick up the pulse line of the original car, connect the pulse line speed limiter, the speed limit function will not have too much delay, use GPS signal speed limit, there will be a delay of about 2 seconds
4: ACC line
5: Power ground
6: Positive power supply
Product Function:
Fixed Highest
Speed Limiting
Can set only one or two highest driving speed value for the vehicle.
Such as: According to the government regulations, some vehicle should not driving over 100Km/h(or any other appointed speed), the product can control the vehicle keep driving within 100Km/h(or any other appointed speed)
Differentiate
Road Type
Intelligent Speed
Limiting
Limit the highest vehicle speed according to different road type.
Such as: on high-speed road, speed limit within 120 100Km/h; for fast road, speed limit within 100 Km/h, State Road 60Km/h, county road limit 50Km/h, this product according to road speed limit.
Differentiate
Vehicle Type
Intelligent Speed
Limiting
Limit the highest vehicle speed according to different vehicle type.
Such as: for high speed compact car ,limit within 120Km/h; for large vehicle, limit within 100Km/h; for dangerous goods transporter, limit within 60Km/h.
Note
All the intelligent speed limit function need platform support, it means your platform must have a database contains the speed limit value of each road ,if not , we can only supply the fixed highest speed limiter for you, it means that we can only set one or two high speed limit vale in this product.
Speed Limiter For Truck Bus Over Speed Control Realtime Speed Data Extraction
