TK003 4G GPS Tracker Vehicle Car Motorcycle GPS Tracker With ACC Ignition Checking GPS Tracker

TK003 4G GPS Tracker Vehicle Car Motorcycle GPS Tracker With ACC Ignition Checking GPS Tracker

Product Features:

TK003 4G GPS Tracker Vehicle Car Motorcycle GPS Tracker With ACC Ignition Checking GPS Tracker

Installati Note:

3.1.1 Open the box, check is the equipment correct, are accessories complete, otherwise please contact your dealer

3.1.2 SIM card selection, the terminal needs to insert a WCDMA/GSM SIM card, GSM card Unicom mobile or optionally (GSM networks worldwide),WCDMA Unicom 3G.

3.1.3 SIM card installation, open the terminal device, take off the metal cover SIM card slot, SIM card chip insert into the slot, covered with a metal slot cover.

Note:

(1) Before installing or removing the SIM card, first turn off the device power;

(2) Terminal SIM card need to open GPRS function;

(3) Terminal SIM card need to open the Caller ID function (depending on customers prefer or not);

(4) If your SIM card needs to enter SIM PIN, please consult your phone's user manual to turn off SIM PIN;

(5) Make sure that the SIM card has charges;

Terminal Outlet Defined

(1) Red line connects positive power;

(2) Black line connects negative power;

(3) Orange connects ACC;

(4) Yellow connects relay

Please use the original supplied power cord, the red line is the positive power supply, black for negative power, negative power installation, choose a separate grounding or connect metal, do not connect with the other ground wire together. If need ACC automatic anti-theft function, ensure to connect the ACC line, the device will detect the ACC state to decide whether to enter the security mode; If not connect to ACC line, the vehicle will enter the security mode, vibration occurs under the security mode, vibration alarm will be triggered.

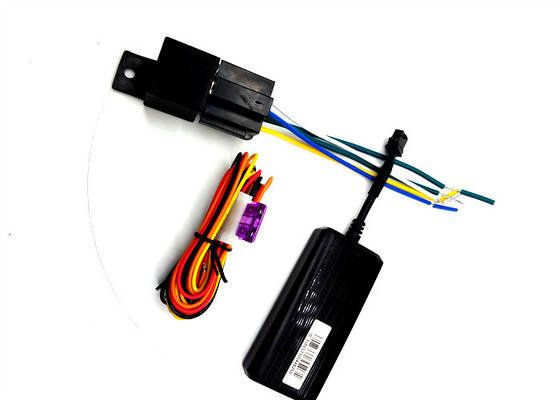

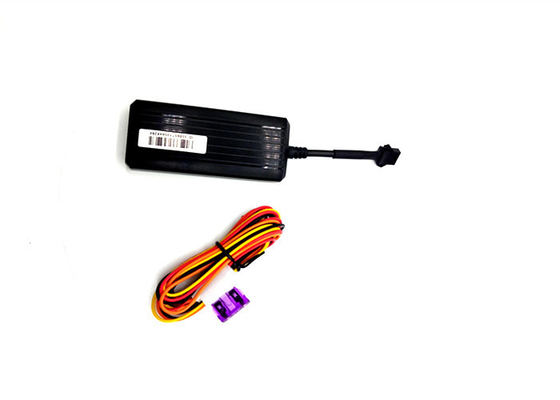

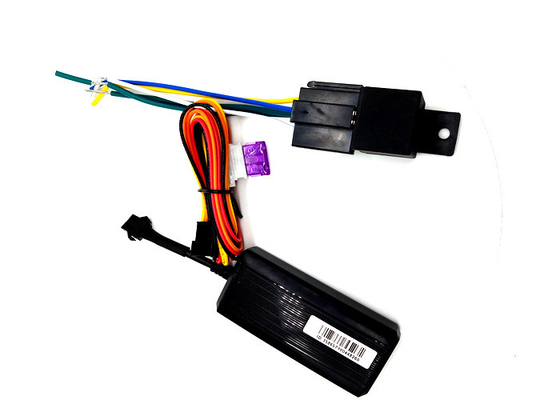

Red＆black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay

TK003 4G GPS Tracker Vehicle Car Motorcycle GPS Tracker With ACC Ignition Checking GPS Tracker

Indicators

3.5.1 Red light - Power Indicator / OBD Work Lights

3.5.2 Yellow indicator light -GSM

3.5.3 Blue LED light -GPS

Technical parameter:

Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
    Under Front windshield；
    In the front instrument panel；
    Under back windshield；
2) Avoid being placed with signal radiators like reverse sensor ；
3) The device has GSM antenna and GPS antenna inside. Please ensure the
receiving side of the device is face up and without metal cover.

Note:The metal cover will lessen the receiving of GPS signals.

Warranty

In particular that:

1. Any technical changes to the product in the future without prior notice.

2. Any changes of appearance, color of products, to prevail in kind.

3. The warranty card is only available in the following listed IMEI / ID Number warranty Services.

4. Please keep this service card, please show this card and the original purchase receipt for warranty.

5. See the table below illustrate specific warranty.
