YTWL_CA100F Vehicle Speed Limiter For School Buses With Speed Signal Antena

I'm Online Chat Now
Certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

YTWL_CA100F Vehicle Speed Limiter For School Buses With Speed Signal Antena

YTWL_CA100F Vehicle Speed Limiter For School Buses With Speed Signal Antena
YTWL_CA100F Vehicle Speed Limiter For School Buses With Speed Signal Antena YTWL_CA100F Vehicle Speed Limiter For School Buses With Speed Signal Antena YTWL_CA100F Vehicle Speed Limiter For School Buses With Speed Signal Antena

Large Image :  YTWL_CA100F Vehicle Speed Limiter For School Buses With Speed Signal Antena Get Best Price

Product Details:

Place of Origin: China
Brand Name: YITUOWULIAN
Certification: CE/ROHS/FCC/SGS
Model Number: CA-100F

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: 75-90
Packaging Details: Packed in carton box
Delivery Time: 2-10days
Payment Terms: L/C, Western Union, MoneyGram
Supply Ability: 10000
Detailed Product Description
Product Name: Gps Speed Limiter Function: Variable Speed Control
Network: GPS/GPRS/GSM Oversize: 10.5*8.3*3.1 CM
Net Weight: 0.24kg Voltage: DC 9V-36V
Speed Limit Scope: 40-120KM/H Frequency: 850/900/1800/1900Mhz
Beneficiary Country: Ethiopia Weight: 280g
High Light:

Rechargeable Vehicle Speed Limiter

,

1000mAh Vehicle Speed Limiter

,

GPRS Speed Signal Antenna Limiter

YTWL_CA100F Vehicle Speed Limiter For School Buses, Trucks With Speed Signal Antena



Technical Parameter:



Content Specs.
Dim. 117*92*31 (mm)
Weight 280g
Network GSM/GPRS/GPS
Band 850/900/1800/1900MHz
GPS chip U-Blox
GSM/GPRS Module SIM800C
Bluetooth Module BT360I
CPU STM32F105RBT6
Power IC TD1509-ADJ
Anti-jamming Strengthened Anti-jamming
GPS sensitivity -159dBm
GPS accuracy 5 m
Time To First Fix

Reacquisition 0.1s

Cold status 45s

Warm status 35s

Hot status 1s

Work Voltage DC 9V-36V
Battery Rechargeable 3.7V / 1000mAh Li-ion battery (Customizable)
Standby work current < 40mA
Storage Temp. -40°C to +85°C
Operation Temp. -20°C to +70°C
Humidity 5%--95% non-condensing



Working Principle:

This kind of speed limiter can get the current driving speed from the Car Speed Wire and show it on the screen.
When over speeding, the device will cut the fuel pump power to limit the car speed.
If you want to limit the speed smoothly, we can help you with a Actuator- Pedal controller, to make the limiting speed safer.



Realtime Tracking

To track vehicle realtime on web and app.



Speed Limit

Limit vehicle speed at preset value, and sound warn at 95% speed limit.

YTWL_CA100F Vehicle Speed Limiter For School Buses With Speed Signal Antena 0

YTWL_CA100F Vehicle Speed Limiter For School Buses, Trucks With Speed Signal Antena



2. Application Field:


Fixed Speed Control
The customized fixed maximum top speed limit increases the safety and fuel economy of your fleet.

Reverse Speed Control
Limits a vehicle's top speed in reverse. Limiting reverse top speed increases safety during a statistically high-risk category of operation.

Acceleration Control
Controls the rate at which the vehicle is able to accelerate. Inhibiting aggressive driving behaviors, increasing safety, and greatly improving fuel economy.

Upgradeable to ISA
Upgrade your VMS from fixed top speed limiting to variable top speed limiting at any time with our optional SpeedIQ kit. The upgrade offers even override Mode
Configurable overrides by a variety of input methods. This capability is especially useful for Emergency Services and others who require access to full speed and acceleration at times.





YTWL_CA100F Vehicle Speed Limiter For School Buses, Trucks With Speed Signal Antena

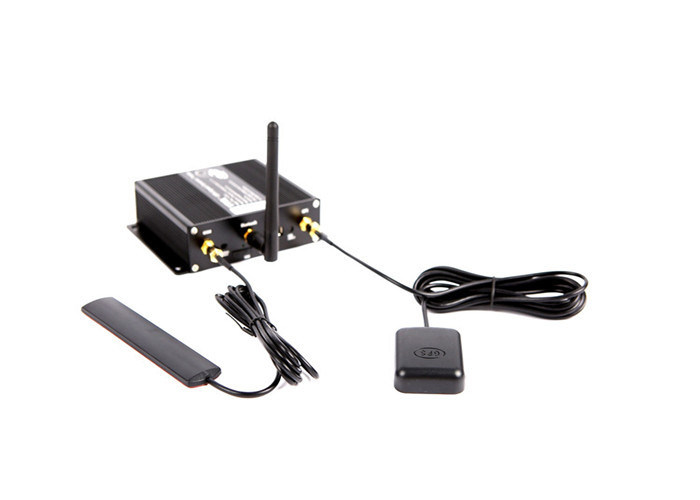

Product Accessories:

① Power wire

② Executor wire

③ Buzzer

④ GPS Antenna

⑤ GSM Antenna

⑥ SIM Card Slot

⑦ Bluetooth printer ( Optional )

⑧ Bluetooth antenna

YTWL_CA100F Vehicle Speed Limiter For School Buses With Speed Signal Antena 1

Realtime Speed Limit Test in Vehicle

Q&A about GPS Speed Limiter for Ethiopia:



Is your GPS Speed Limiter well approved, testified, and recognized by the Ethiopian market?



Yes, as one of the very first several companies who invented GPS Speed Limiters for the Ethiopia market according to the standard of the Ethiopian government our GPS Speed Limiters have been well approved, testified, and recognized by the Ethiopia market. And we have been exporting quite a number of GPS Speed Limiters to Ethiopia every month.



2. What mechanism will the device use to limit the speed of electronic throttle vehicles and the additional device it uses?



Our speed limiter is an electronic type that works with electronic throttle vehicles without requiring additional accessories.



How can I buy it?



We accept T/T, Western Union, and Paypal after payment cleared. then we will send goods to you.



What is your WhatsApp?



My WhatsApp is +86 18673367060
