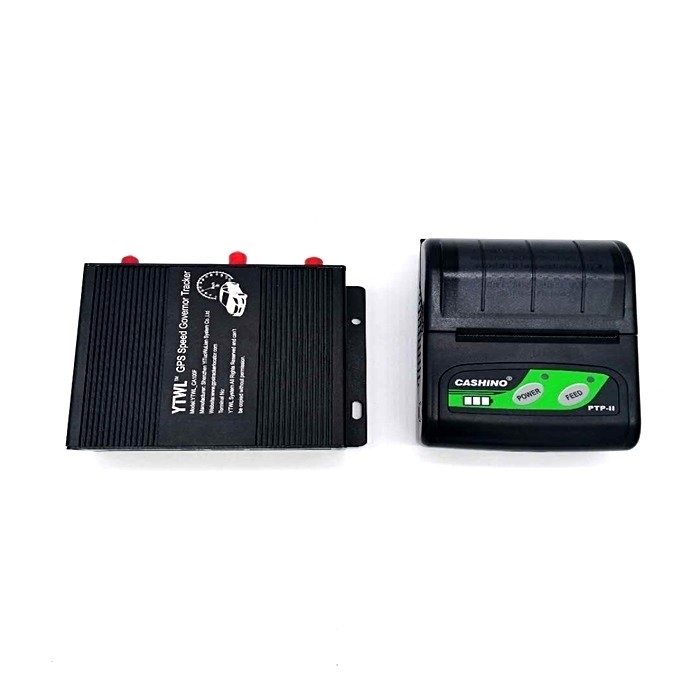

YTWL_CA100 Ethiopian Road GPS Speed Limiter For Car / Vehicle
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Gps Speed Limiter | Function: | Variable Speed Control |
|---|---|---|---|
| Network: | GPS/GPRS/GSM | Oversize: | 10.5*8.3*3.1 CM |
| Net Weight: | 0.24kg | Voltage: | DC 9V-36V |
| Speed Limit Scope: | 40-120KM/H | Frequency: | 850/900/1800/1900Mhz |
| Beneficiary Country: | Ethiopia | MOQ: | 10 |
| High Light: | Road GPS Speed Limiter,GSM Road GPS Speed Limiter,FCC Vehicle GPS Speed Limiter |
||
YTWL_CA100 Ethiopian Road GPS Speed Limiter For New Car/Vehicle
Supply and Installation of Speed Limiter with the integrated GPS system on 200 units of vehicles
Reference: ITB/2020/13893
Beneficiary Country: Ethiopia
Registration level: Basic
Ethiopia has provisionally agreed on new rules that state speed limiters will become mandatory for all vehicles sold throughout the country.
Technical Parameter:
| Content | Specs. |
| Dim. | 117*92*31 (mm) |
| Weight | 280g |
| Network | GSM/GPRS/GPS |
| Band | 850/900/1800/1900MHz |
| GPS chip | U-Blox |
| GSM/GPRS Module | SIM800C |
| Bluetooth Module | BT360I |
| CPU | STM32F105RBT6 |
| Power IC | TD1509-ADJ |
| Anti-jamming | Strengthened Anti-jamming |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5 m |
| Time To First Fix |
Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
| Work Voltage | DC 9V－36V |
| Battery | Rechargeable 3.7V / 1000mAh Li-ion battery (Customizable) |
| Standby work current | < 40mA |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
YTWL_CA100 Ethiopian Road GPS Speed Limiter For New Car/Vehicle
Main Function:
- Real-time GPS tracking
- Geo-fences
- ACC status detection
- Over speed alarm
- Power cut alarm
- Low voltage alarm
- Abnormal GPS antenna alarm
- SOS alarm (SOS button)
- Cut fuel and power, Speed limit (Relay, Support mechanical valves)
- Audio monitoring (MIC or Intercom)
- Fuel monitoring (Fuel sensor)
- Temperature monitoring (Temperature sensor)
- Print vehicle trip data (Printer)
1. speed limit, 5--225km/h.
2. tamper Protection Mode(disconnect signal wire / power wire,into limp model).
3. speed record onboard and off-board ( Date & Time, Speed, Highest speed, Violation).
4. limiter device can resistant to reverse polarity connections.
5. over speed alarm & pre-warn alarm. this warning occurs at 5% prior to the set speed and continues buzzing once the set speed is achieved/exceeded.
6. real-time tracking through web tracking platform and cell phone app.
7. limiter device uploads the data at not more than 10seconds intervals.
8. limiter device can store the data in a non-erasable memory for at least 72 hours even if the power supply is disconnected.
7. limiter device uploads the data at not more than 10seconds intervals.
8. limiter device can store the data in a non-erasable memory for at least 72 hours even if the power supply is disconnected.
9. portable printing is supported, can print out 1hour / highest speed/violation record.
10. limiter device can work with Valve Speed Sensor Booster
10. limiter device can work with Valve Speed Sensor Booster
YTWL_CA100 Ethiopian Road GPS Speed Limiter For New Car/Vehicle

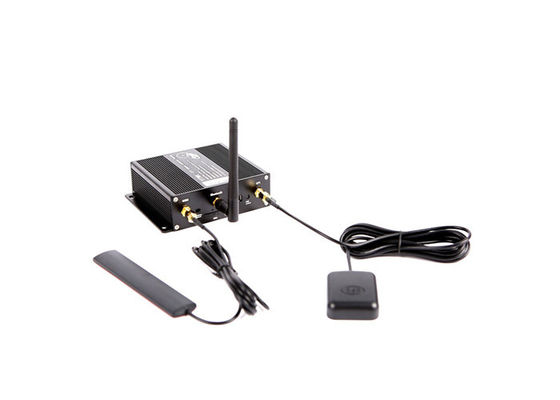

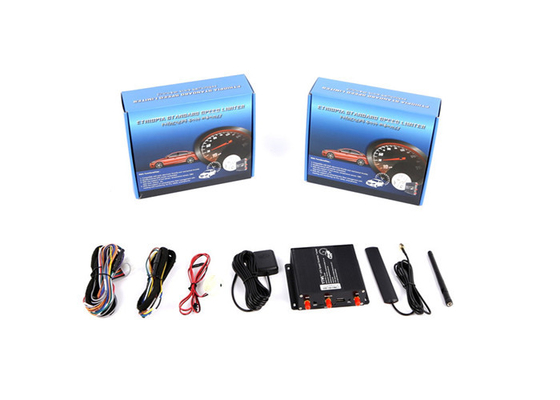

Product Accessories:
① Power wire
② Executor wire
③ Buzzer
④ GPS Antenna
⑤ GSM Antenna
⑥ SIM Card Slot
⑦ Bluetooth printer ( Optional )
⑧ Bluetooth antenna
Q&A about GPS Speed Limiter for Ethiopia:
0. Is your GPS Speed Limiter well approved, testified, and recognized by the Ethiopian market?
Yes, as one of the very first several companies who invented GPS Speed Limiters for the Ethiopia market according to the standard of the Ethiopian government our GPS Speed Limiters have been well approved, testified, and recognized by the Ethiopia market. And we have been exporting quite a number of GPS Speed Limiters to Ethiopia every month.
2. What mechanism will the device use to limit the speed of electronic throttle vehicles and the additional device it uses?
Our speed limiter is an electronic type that works with electronic throttle vehicles without requiring additional accessories.
How can I buy it?
We accept T/T, Western Union, and Paypal after payment cleared. then we will send goods to you.
What is your WhatsApp?
My WhatsApp is +86 18673367060
