YTWL_CA100F Road Ethiopia Vehicle GPS Speed Limiter FCC
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Gps Speed Limiter | Network: | GPS/GPRS/GSM |
|---|---|---|---|
| Oversize: | 10.5*8.3*3.1 CM | Net Weight: | 0.24kg |
| Voltage: | DC 9V-36V | Certification: | CE ROHS |
| Speed Limit Scope: | 40-120KM/H | Frequency: | 850/900/1800/1900Mhz |
| High Light: | Ethiopia Vehicle GPS Speed Limiter,1900Mhz Vehicle GPS Speed Limiter,FCC Vehicle Speed Limiter |
||
YTWL_CA100F Road Ethiopia Standard Vehicle GPS Speed Limiter Device In Ethiopia
Supply and Installation of Speed Limiter with the integrated GPS system on 200 units of vehicles
Reference: ITB/2020/13893
Beneficiary Country: Ethiopia
Registration level: Basic
Ethiopia has provisionally agreed on new rules that state speed limiters will become mandatory for all vehicles sold throughout the country.
Road Speed Limiters were developed to improve safety and the environment by controlling the speed of vehicles, thus reducing serious accidents and pollution. The basic function of the system is to limit the maximum speed of a vehicle to a pre-set level without affecting any of the performance of the vehicle.
Product Function:
| Limiting Mode | Limiting Function Introduction |
| extension functions | 1) Mainly used in Kenya to control vehicle speed and further expand the market for auto speed limiters in Ethiopia. |
| 2) Vehicle speed pulse detection; it is a speed limiter and also a GPS tracker, surpassing the traditional GPS tracker. | |
| 3) One channel high input detection, one channel low input detection; | |
| 4) One channel power-off control output, one channel oil-off control output; | |
| 5) Three channels of analog input. One is used for fuel consumption data detection, another is used for the ordinary analog voltage detection, the third one is for standby; | |
| 6) One channel RS232 defining interface; | |
| 7) One channel RS232/RS458 compatible interface; | |
| 8) The (G-SENSOR) acceleration sensor interface reserved, can open for some customer need. | |
| Differentiate Road Section Intelligent Speed Limiting | Limit the highest vehicle speed according to the current road speed limit value. Such as: if the current road speed limit value is 80 Km/h, the product can control the highest vehicle speed is within 0 ~ 80 Km/h. If the road limit value is 100 Km/h, the product can control the vehicle speed keep within 100 Km/h. |
| Differentiate Time Intelligent Speed Limiting | Limit the highest vehicle speed according to the different time periods. Such as: if you set the highest driving speed as 50Km/h from 2.00-5:00, and 80Km/h for the other time period. So this product can control the vehicle's highest speed as 50Km/h from 2.00-5:00, and 80Km/h for the other time period as your order. |
| Differentiate Vehicle Type Intelligent Speed Limiting | Limit the highest vehicle speed according to different vehicle types. |
| Such as: for a high-speed compact car , limit within 120Km/h; for a large vehicle, limit within 100Km/h; for dangerous goods transporter, limit within 60Km/h. | |
| Differentiate Road Type Intelligent Speed Limiting | Limit the highest vehicle speed according to different road types. |
| Such as: on a high-speed road, the speed limit within 120 100Km/h; for fast road, the speed limit within 100 Km/h, State Road 60Km/h, county road limit 50Km/h, this product according to the road speed limit. | |
| Fixed Highest Speed Limiting | Can set only one or two highest driving speed value for the vehicle. Such as: According to the government regulations, some vehicle should not driving over 100Km/h(or any other appointed speed), the product can control the vehicle keep driving within 100Km/h(or any other appointed speed) |
YTWL_CA100F Road Ethiopia Standard Vehicle GPS Speed Limiter Device In Ethiopia
Product Description

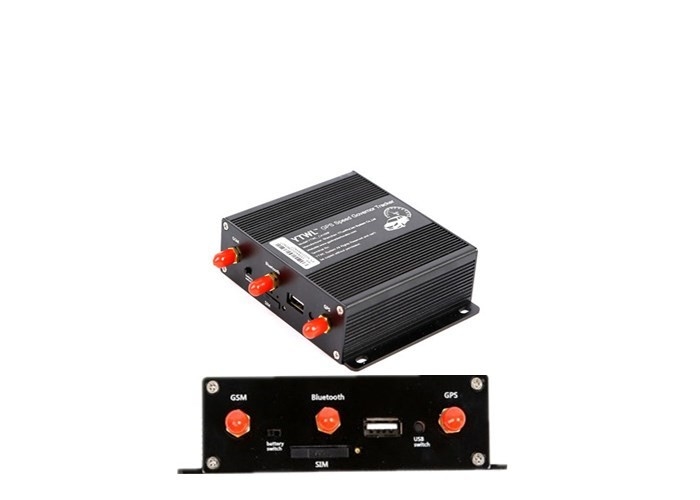

Vehicle speed limiter CA100F is intelligent terminal equipment that can realize precise speed limits for vehicles. It is not only a speed limiter but also a GPS Tracker.
The retrieved data shall be in a format that the motor vehicle inspection officer will be able to understand without requiring the services of a speed limiter specialist.
The speed limiting device shall be so designed, constructed, and assembled so as to resist vibrations, corrosion, dust, humidity, petrochemicals, and aging phenomena to which it may be exposed.
No malfunction or unauthorized interference shall result in an increase in engine power above the demanded by the position of the driver's accelerator. The malfunction of the speed limiter devices shall not affect the normal vehicular performance;
2. Technical Parameter:
| Content | Specs. |
| Dim. | 117*92*31 (mm) |
| Weight | 280g |
| Network | GSM/GPRS/GPS |
| Band | 850/900/1800/1900MHz |
| GPS chip | U-blox |
| GSM/GPRS Module | SIM800C |
| Bluetooth Module | BT360I |
| CPU | STM32F105RBT6 |
| Power IC | TD1509-ADJ |
| Anti-jamming | Strengthened Anti-jamming |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5 m |
| Time To First Fix |
Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
| Work Voltage | DC 9V－36V |
| Battery | Rechargeable 3.7V / 1000mAh Li-ion battery (Customizable) |
| Standby work current | < 40mA |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
YTWL_CA100F Road Ethiopia Standard Vehicle GPS Speed Limiter Device In Ethiopia
3. Installation:

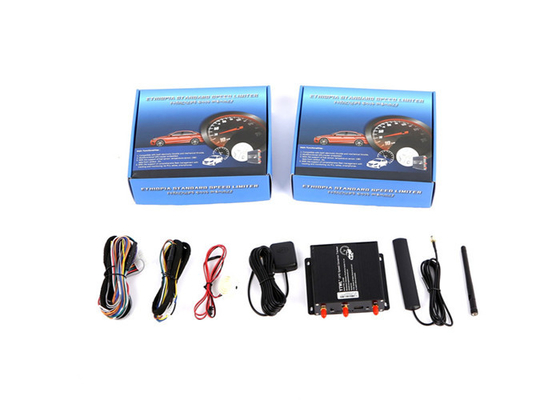

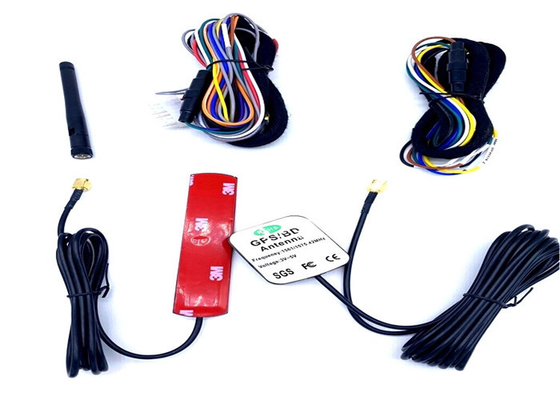

1) Product Accessory:
① Power wire
② Executor wire
③ Extension wire
④ Speaker
⑤ GPS Antenna
⑥ GSM Antenna
⑦ SIM Card Slot
⑧ User Manual
The following lines are indispensable in the installation:
6: Brown line
8: Orange line, the line of the buzzer
9: Grayline, pick up the pulse line of the original car, connect the pulse line speed limiter, the speed limit function will not have too much delay, use GPS signal speed limit, there will be a delay of about 2 seconds
10: ACC line
11: Power ground
12: Positive power supply
Bluetooth Printing
GPS speed limiter supports work with wireless Bluetooth printer. Click the SOS button on the speed limiter, GPS speed limiter shall automatically connect with the speed limiter and start print the last 1 hr data with over speed data included.
USB Disk Downloading
Users can connect to the device USB port with a FAT32 format USB disk and download the last 72 hr driving data stored in GPS speed limiter memory. Beep sound when USB is inserted, Long beep sound when data is all downloaded.
