Product Name: | Gps Speed Limiter | Function: | Variable Speed Control |
---|---|---|---|
Network: | GPS/GPRS/GSM | Oversize: | 10.5*8.3*3.1 CM |
Net Weight: | 0.24kg | Voltage: | DC 9V-36V |
Operating Humidity: | 20%-90% | Speed Limit Scope: | 40-120KM/H |
Frequency: | 850/900/1800/1900Mhz | Beneficiary Country: | Ethiopia |
High Light: | Ethiopian Road Speed Limiter,20KM/H Road Speed Limiter,YTWL_CA100F |
YTWL_CA100F Road Ethiopia GPS Integrated Speed Limiter - For Ethiopia
Supply and Installation of Speed Limiter with the integrated GPS system on 200 units of vehicles
Reference: ITB/2020/13893
Beneficiary Country: Ethiopia
Registration level: Basic
Ethiopia has provisionally agreed on new rules that state speed limiters will become mandatory for all vehicles sold throughout the country.
Road Speed Limiters were developed to improve safety and the environment by controlling the speed of vehicles, thus reducing serious accidents and pollution. The basic function of the system is to limit the maximum speed of a vehicle to a pre-set level without affecting any of the performance of the vehicle.
Technical Parameter:
Content | Specs. |
Dim. | 117*92*31 (mm) |
Weight | 280g |
Network | GSM/GPRS/GPS |
Band | 850/900/1800/1900MHz |
GPS chip | U-blox |
GSM/GPRS Module | SIM800C |
Bluetooth Module | BT360I |
CPU | STM32F105RBT6 |
Power IC | TD1509-ADJ |
Anti-jamming | Strengthened Anti-jamming |
GPS sensitivity | -159dBm |
GPS accuracy | 5 m |
Time To First Fix |
Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
Work Voltage | DC 9V-36V |
Battery | Rechargeable 3.7V / 1000mAh Li-ion battery (Customizable) |
Standby work current | < 40mA |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +70°C |
Humidity | 5%--95% non-condensing |
YTWL_CA100F Road Ethiopia GPS Integrated Speed Limiter - For Ethiopia
2. Application Field:
Fixed Speed Control
The customized fixed maximum top speed limit increases the safety and fuel economy of your fleet.
Reverse Speed Control
Limits a vehicle's top speed in reverse. Limiting reverse top speed increases safety during a statistically high-risk category of operation.
Acceleration Control
Controls the rate at which the vehicle is able to accelerate. Inhibiting aggressive driving behaviors, increasing safety, and greatly improving fuel economy.
Upgradeable to ISA
Upgrade your VMS from fixed top speed limiting to variable top speed limiting at any time with our optional SpeedIQ kit. The upgrade offers even override Mode
Configurable overrides by a variety of input methods. This capability is especially useful for Emergency Services and others who require access to full speed and acceleration at times.
Designed for the Ethiopia market, the YTWL-100F Vehicle speed limiter is intelligent terminal equipment that can realize precise speed limits for vehicles. It is not only a speed limiter but also a Professional Multifunctional Vehicle GPS Tracker.
YTWL_CA100F Road Ethiopia GPS Integrated Speed Limiter - For Ethiopia

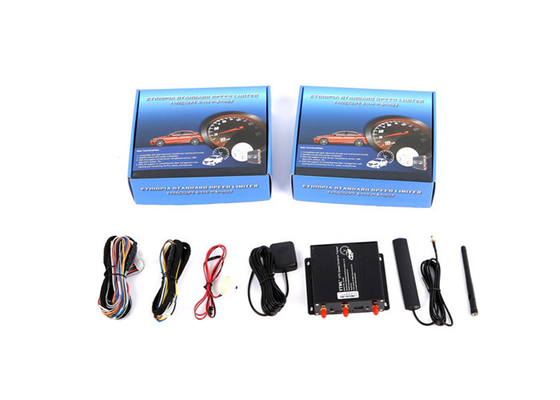

Product Accessories:
① Power wire
② Executor wire
③ Buzzer
④ GPS Antenna
⑤ GSM Antenna
⑥ SIM Card Slot
⑦ Bluetooth printer ( Optional )
⑧ Bluetooth antenna
4. Installation:
The following lines are indispensable in the installation:
6: Brown line
8: Orange line, the line of the buzzer
9: Grayline, pick up the pulse line of the original car, connect the pulse line speed limiter, the speed limit function will not have too much delay, use GPS signal speed limit, there will be a delay of about 2 seconds
10: ACC line
11: Power ground
12: Positive power supply
Q&A about GPS Speed Limiter for Ethiopia:
0. Is your GPS Speed Limiter well approved, testified, and recognized by the Ethiopian market?
Yes, as one of the very first several companies who invented GPS Speed Limiters for the Ethiopia market according to the standard of the Ethiopian government our GPS Speed Limiters have been well approved, testified, and recognized by the Ethiopia market. And we have been exporting quite a number of GPS Speed Limiters to Ethiopia every month.
1. What mechanism will the device use to limit the speed of mechanical vehicles and the additional device it uses?
Our speed limiter is an electronic type. For the vehicles which are mechanical type, an extra relay can be used as an adapter at its cost. Together with the relay, the speed limiting can be carried out while a Solenoid valve shall be needed for accurate speed limiting.
2. What mechanism will the device use to limit the speed of electronic throttle vehicles and the additional device it uses?
Our speed limiter is an electronic type that works with electronic throttle vehicles without requiring additional accessories.
How can I buy it?
We accept T/T, Western Union, and Paypal after payment cleared. then we will send goods to you.
What is your WhatsApp?
My WhatsApp is +86 18673367060
