Product Details:
Payment & Shipping Terms:
|
Product Name: | Gps Speed Limiter | Function: | Variable Speed Control |
---|---|---|---|
Network: | GPS/GPRS/GSM | Oversize: | 10.5*8.3*3.1 CM |
Net Weight: | 0.24kg | Voltage: | DC 9V-36V |
Certification: | CE ROHS | Operating Humidity: | 20%-90% |
Speed Limit Scope: | 40-120KM/H | Frequency: | 850/900/1800/1900Mhz |
High Light: | Vehicle GPS Speed Limiter Ethiopia,ES6413 Vehicle GPS Speed Limiter,1800Mhz Gps Speed Governor |
YTWL_CA100F Road Ethiopia Standard Vehicle GPS Speed Limiter ES6413/2019 Speed Restrict
Supply and Installation of Speed Limiter with the integrated GPS system on 200 units of vehicles
Reference: ITB/2020/13893
Beneficiary Country: Ethiopia
Registration level: Basic
Ethiopia has provisionally agreed on new rules that state speed limiters will become mandatory for all vehicles sold throughout the country.
Road Speed Limiters were developed to improve safety and the environment by controlling the speed of vehicles, thus reducing serious accidents and pollution. The basic function of the system is to limit the maximum speed of a vehicle to a pre-set level without affecting any of the performance of the vehicle.
Product Description

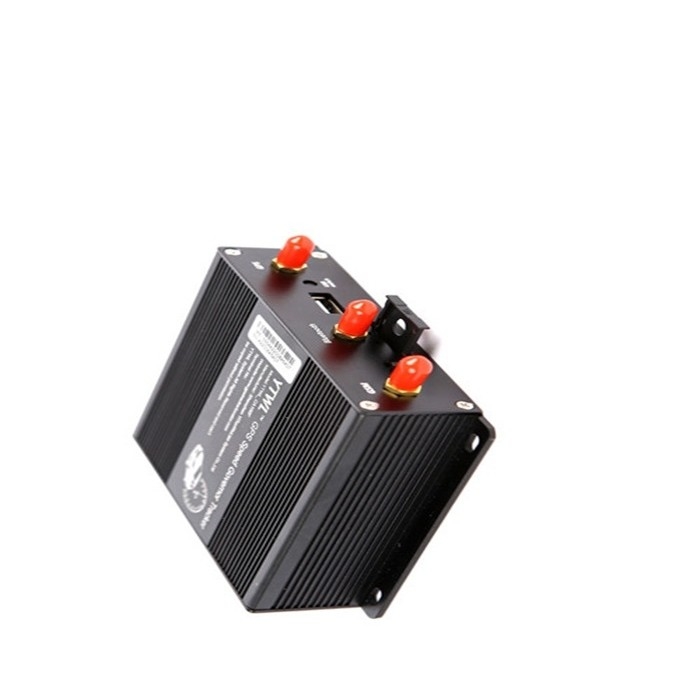

Vehicle speed limiter CA100F is intelligent terminal equipment that can realize precise speed limits for vehicles. It is not only a speed limiter but also a GPS Tracker.
The retrieved data shall be in a format that the motor vehicle inspection officer will be able to understand without requiring the services of a speed limiter specialist.
The speed limiting device shall be so designed, constructed, and assembled so as to resist vibrations, corrosion, dust, humidity, petrochemicals, and aging phenomena to which it may be exposed.
No malfunction or unauthorized interference shall result in an increase in engine power above the demanded by the position of the driver's accelerator. The malfunction of the speed limiter devices shall not affect the normal vehicular performance;
Product Function:
Limiting Mode | Limiting Function Introduction |
extension functions | 1) Mainly used in Kenya to control vehicle speed and further expand the market for auto speed limiters in Ethiopia. |
2) Vehicle speed pulse detection; it is a speed limiter and also a GPS tracker, surpassing the traditional GPS tracker. | |
3) One channel high input detection, one channel low input detection; | |
4) One channel power-off control output, one channel oil-off control output; | |
5) Three channels of analog input. One is used for fuel consumption data detection, another is used for the ordinary analog voltage detection, the third one is for standby; | |
6) One channel RS232 defining interface; | |
7) One channel RS232/RS458 compatible interface; | |
8) The (G-SENSOR) acceleration sensor interface reserved, can open for some customer need. | |
Differentiate Road Section Intelligent Speed Limiting | Limit the highest vehicle speed according to the current road speed limit value. Such as: if the current road speed limit value is 80 Km/h, the product can control the highest vehicle speed is within 0 ~ 80 Km/h. If the road limit value is 100 Km/h, the product can control the vehicle speed keep within 100 Km/h. |
Differentiate Time Intelligent Speed Limiting | Limit the highest vehicle speed according to the different time periods. Such as: if you set the highest driving speed as 50Km/h from 2.00-5:00, and 80Km/h for the other time period. So this product can control the vehicle's highest speed as 50Km/h from 2.00-5:00, and 80Km/h for the other time period as your order. |
Differentiate Vehicle Type Intelligent Speed Limiting | Limit the highest vehicle speed according to different vehicle types. |
Such as: for a high-speed compact car , limit within 120Km/h; for a large vehicle, limit within 100Km/h; for dangerous goods transporter, limit within 60Km/h. | |
Differentiate Road Type Intelligent Speed Limiting | Limit the highest vehicle speed according to different road types. |
Such as: on a high-speed road, the speed limit within 120 100Km/h; for fast road, the speed limit within 100 Km/h, State Road 60Km/h, county road limit 50Km/h, this product according to the road speed limit. | |
Fixed Highest Speed Limiting | Can set only one or two highest driving speed value for the vehicle. Such as: According to the government regulations, some vehicle should not driving over 100Km/h(or any other appointed speed), the product can control the vehicle keep driving within 100Km/h(or any other appointed speed) |
2. Application Field:
Fixed Speed Control
The customized fixed maximum top speed limit increases the safety and fuel economy of your fleet.
Reverse Speed Control
Limits a vehicle's top speed in reverse. Limiting reverse top speed increases safety during a statistically high-risk category of operation.
Acceleration Control
Controls the rate at which the vehicle is able to accelerate. Inhibiting aggressive driving behaviors, increasing safety, and greatly improving fuel economy.
Upgradeable to ISA
Upgrade your VMS from fixed top speed limiting to variable top speed limiting at any time with our optional SpeedIQ kit. The upgrade offers even override Mode
Configurable overrides by a variety of input methods. This capability is especially useful for Emergency Services and other who require access to full speed and acceleration at times.

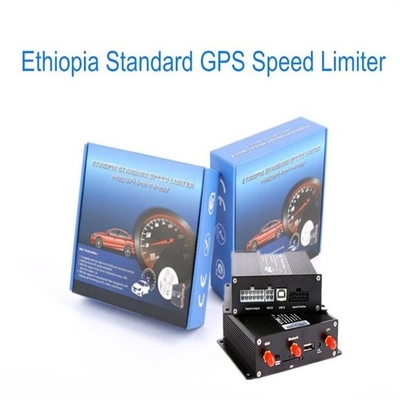

YTWL_CA100F Road Ethiopia Standard Vehicle GPS Speed Limiter ES6413/2019 Speed Restrict
3. Technical Parameter:
Content | Specs. |
Dim. | 117*92*31 (mm) |
Weight | 280g |
Network | GSM/GPRS/GPS |
Band | 850/900/1800/1900MHz |
GPS chip | U-blox |
GSM/GPRS Module | SIM800C |
Bluetooth Module | BT360I |
CPU | STM32F105RBT6 |
Power IC | TD1509-ADJ |
Anti-jamming | Strengthened Anti-jamming |
GPS sensitivity | -159dBm |
GPS accuracy | 5 m |
Time To First Fix |
Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
Work Voltage | DC 9V-36V |
Battery | Rechargeable 3.7V / 1000mAh Li-ion battery (Customizable) |
Standby work current | < 40mA |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +70°C |
Humidity | 5%--95% non-condensing |
YTWL_CA100F Road Ethiopia Standard Vehicle GPS Speed Limiter ES6413/2019 Speed Restrict
3. Including
Analysis of the content of TCP reply:
(TP121.201.110.106P7000DD000019171223244F0000S0014R0000ON30OFF60VJun 12 2020A:CMNET,p450,s80,c15, 0.360V, 0.720V,12.43V,a0,G00,-59 dbm)
TP121.201.110.106 P7000: IP and port
DD000019171223244: device ID number
F0000S0014: upload data fail 0 times, successful 14 times
R0000: memory data is 0
ON30OFF60: interval of acc on is 30 seconds, and acc off is 60 seconds
VJun 12 2020: firmware of the devices is JUN 12 2020
A:CMNET: the APN is CMNET
p450: Pulse coefficient is 450 (If the pulse coefficient is larger, the speed will be smaller)
s80: speed limiter max =80km/h
c15: For mechanical throttle, the time to disconnect the fuel line is 15 seconds
0.360V, 0.720V: Two throttle voltage values for electronic throttle vehicles
12.43V: vehicle voltage values
a0: a0 is acc off, a1 is acc on
G00: G00 means GPS not fixed, G10 means 10 satellites found
-59 dbm: GSM signal
4. Installation:

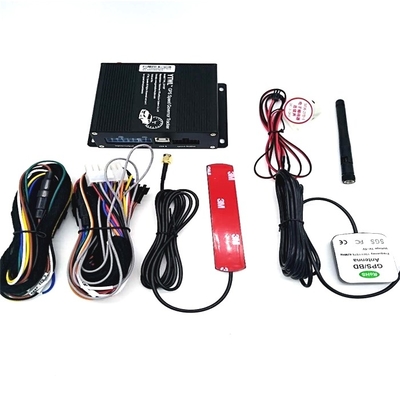

1) Product Accessory:
① Power wire
② Executor wire
③ Extension wire
④ Speaker
⑤ GPS Antenna
⑥ GSM Antenna
⑦ SIM Card Slot
⑧ User Manual
The following lines are indispensable in the installation:
6: Brown line
8: Orange line, the line of the buzzer
9: Grayline, pick up the pulse line of the original car, connect the pulse line speed limiter, the speed limit function will not have too much delay, use GPS signal speed limit, there will be a delay of about 2 seconds
10: ACC line
11: Power ground
12: Positive power supply
5. ADD GPS device to the platform
About platform
1. Load the GPS platform: www.gps-go.com
User:XXXX password:123456
Note: XXXX is the platform account, need to contact a salesman to get this account name and password
For APP, search gps-go in google store or download from this QR:
2. The platform functions and report
3. Track: you can see the real-time location of the vehicle
