Product Description

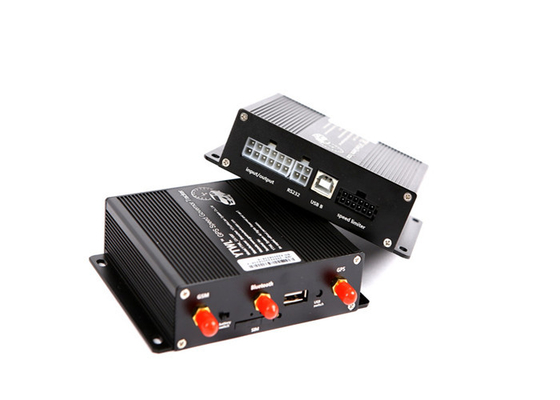

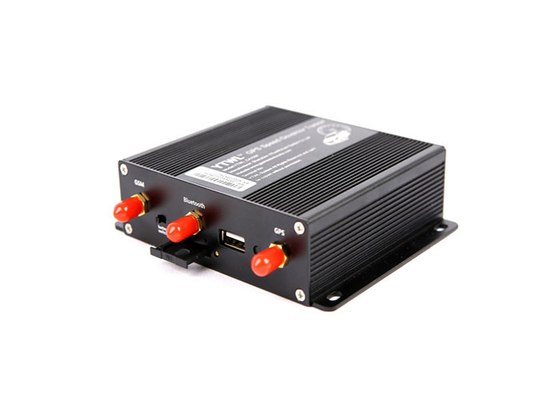

Vehicle speed limiter CA100F is a intelligent terminal equipment which can realize precise speed limiting for vehicles. It is not only a speed limiter but also a GPS Tracker.

The retrieved data shall be in a format that the motor vehicle inspection officer will be able to understand without requiring the services of a speed limiter specialist.

The speed limiting device shall be so designed, constructed and assembled so as to resist vibrations, corrosion, dust, humidity, petrochemicals and aging phenomena to which it may be exposed.

No malfunction or unauthorized interference shall result in an increase in engine power above the demanded by the position of the driver's accelerator. The malfunction of the speed limiter devices shall not affect the normal vehicular performance;

1. Product Function:

2. Application Field:


Fixed Speed Control
Customized fixed maximum top speed limit that increases the safety and fuel economy of your fleet.

Reverse Speed Control
Limits a vehicle's top speed in reverse. Limiting reverse top speed increases safety during a statistically high-risk category of operation.

Acceleration Control
Controls the rate at which the vehicle is able to accelerate. Inhibiting aggressive driving behaviors, increasing safety, and greatly improving fuel economy.

Upgradeable to ISA
Upgrade your VMS from fixed top speed limiting to variable top speed limiting at any time with our optional SpeedIQ kit. The upgrade offers even goverride Mode
Configurable overrides by a variety of input methods. This capability is especially useful for Emergency Services and other who require access to full speed and acceleration at times.

Normative references
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ES IEC 60068-2-1, Environmental testing - Part 2-1: Tests - Test A: Cold stability
ES IEC 60068-2-2, Environmental testing - Part 2-2: Test - Test B: Dry heat stability
ES IEC 60068-2-38, Environmental testing - Part 2-38: - Test - Test ZlAD: Composite

Ethiopia Standard Gps Speed Limiter/Speed Governor Aye Speed Camera Limit

3. Technical Parameter:

Wroking Principle:

The GPS Antenna will get the real-time current speed and show it on the device screen.
When over speeding, the device will cut the fuel pump power to limit the car speed.
If you want to limit the speed smoothly, we can help you with a Actuator- Pedal controller, to make the limiting speed safer.

Ethiopia Standard Gps Speed Limiter/Speed Governor Aye Speed Camera Limit

3. Including

features of GPS Speed Limiter

GPS Speed Limiter. User can setup top speed to limit vehicle speed either by SMS or computer based tool.

Geo fence based Speed Limit. The device support 3 fences to setup different speed limit per fences.

USB flash data downloaded. Vehicle travelling data could be retrieved by using a computer or a USB flash or a wireless Bluetooth printer.

Data could be stored for at least 72 working hours for future reference, including date, time, speed, car plate number, owner name, fitting center, installer name, installed date, longitude, latitude, etc.

Tamperproof. UniGuard vehicle speed limiters are specially designed for none drivers or any other unauthorized people can tamper with the installed devices. Once device is tampered, it shall go to limp mode- vehicle speed is restricted to 40KM/H or 30KM/H. (Per Kenya or Ethiopia Standard)

Prewarn if 95% of set speed limit is reached, beep sound will be produced continuously.

In installation UniGuard speed governor could be hidden in a place not accessible by unauthorized people.

The speed limiter recorder could communicate with computer by use of USB flash.

6 to 36V working Voltage. Wide applicable for trucks, cars, school buses, taxi and other commercial vehicles.

Wireless Data Printing. Support connection with wireless portable Bluetooth printer and print the past 24 hr driving data.


4. Installation:

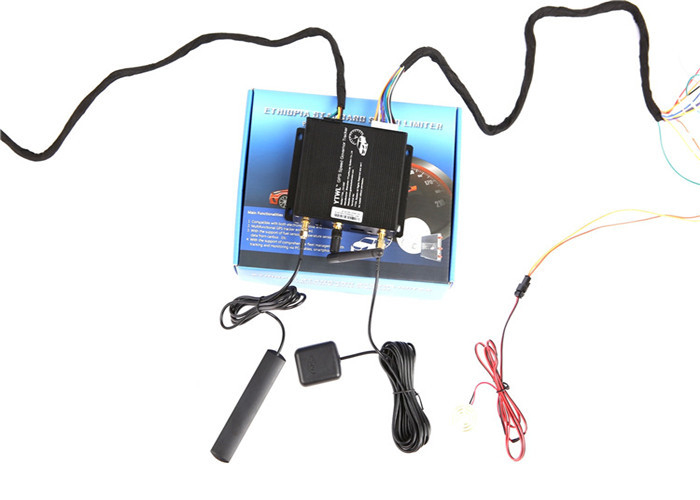

1) Product Accessory:

①　Power wire

②　Executor wire

③　Extension wire

④　Speaker

⑤　GPS Antenna

⑥　GSM Antenna

⑦　SIM Card Slot

⑧　User Manual

Following lines are indispensable in installation:

6: Brown line

8: Orange line, the line of the buzzer

9: Gray line, pick up the pulse line of the original car, connect the pulse line speed limiter, the speed limit function will not have too much delay, use GPS signal speed limit, there will be a delay of about 2 seconds

10: ACC line

11: Power ground

12: Positive power supply

5. ADD GPS device to the platform

  About platform

1. Load the GPS platform: www.gps-go.com

User:xxxx password:123456

Note: xxxx is the platform account, need to contact with salesman to get this account name and password

For APP, search gps-go in google store or download from this QR:

2. The platform functions and report

3. Track : you can see the real-time location of the vehicle

Technical specifications for Goods

· Speed Limiter Device with Integrated GPS: As per standard set by Ethiopian Standard Agency Standard Road Vehicle-GPS integrated Speed limiter Devices Requirements

· To provide Warranty for two years for any problem that arise due to the device internal problem but this doesn’t include for damage due to external force , extreme heat, fire or voltage of electricity or when the devise is opened by any other person other than the company’s technician

· Speed Limit Equipment competency Verification Certificate is approved by the Ethiopian Road Authority to supply and install Speed Limiter with integrated GPS system.

· Committed to comply with Human rights and labour issues (e.g. fundamental principles and rights at work, occupational health and safety, fairly traded goods, etc)

 After-sale service:

Warranty statement:

The specification are subject to modification without notice.

If the appearance and color of the product is changed, please take the actual product as the standard.

This warranty card is only applicable to the following listed IMEI/ID machine.

Please keep this warranty card, and please present this card and the original purchase receipts when repair service.

This is the basic certificate of warranty, please fill in this card carefully and keep it well.
