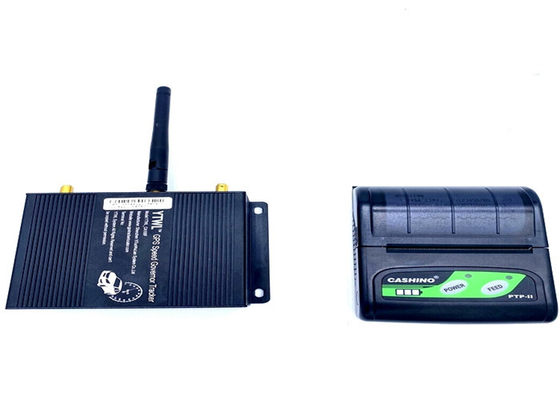

M6 Ethiopia 120KM/H GSM GPRS Gps Speed Limiter With Trailer
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Gps Speed Limiter | Network: | GPS/GPRS/GSM |
|---|---|---|---|
| Oversize: | 10.5*8.3*3.1 CM | Net Weight: | 0.24kg |
| Voltage: | DC 9V-36V | Certification: | CE ROHS |
| Speed Limit Scope: | 40-120KM/H | Color: | Black |
| Battery: | Rechargable | Accessory: | 8 Sets |
| High Light: | GPRS Gps Speed Limiter,120KM/H Gps Speed Limiter,GSM Car Speed Governor |
||
M6 Ethiopia Certificate CE Gps Speed Limiter Speed Limit 25/30 With Trailer
Speed governor or speed limiter is a device designed to limit the speed of vehicle like truck, schools bus, car forklift and so on. Most of the speed governors are fitted because of the government regulations.
Currently Kenya and Ethiopia in Africa has published standards, respectively KS 2295-1:2018 in Kenya and ES 6413:2019 in Ethiopia.
Difference between Kenya and Ethiopia standard:
In Kenya, wired portable printer is required.
In Ethiopia, wireless portable printer is required.
1. Product Function:
| Limiting Mode | Limiting Function Introduction |
| Differentiate Road Section Intelligent Speed Limiting | Limit the highest vehicle speed according to the current road speed limit value.Such as: if the current road speed limit value is 80 Km/h,the product can control the highest vehicle speed is within 0 ~ 80 Km/h. If the road limit value is 100 Km/h,the product can control the vehicle speed keep within 100 Km/h. |
| Differentiate Time Intelligent Speed Limiting | Limit the highest vehicle speed according to different time period . Such as: if you set the highest driving speed as 50Km/h from 2.00-5:00, and 80Km/h for the other time period. So this product can control the vehicle highest speed as 50Km/h from 2.00-5:00, and 80Km/h for the other time period as your order. |
| Differentiate Vehicle Type Intelligent Speed Limiting |
Limit the highest vehicle speed according to different vehicle type. |
| Differentiate Road Type Intelligent Speed Limiting |
Limit the highest vehicle speed according to different road type. |
| Fixed Highest Speed Limiting | Can set only one or two highest driving speed value for the vehicle. Such as: According to the government regulations, some vehicle should not driving over 100Km/h(or any other appointed speed), the product can control the vehicle keep driving within 100Km/h(or any other appointed speed) |
| Note | All the intelligent speed limit function need platform support, it means your platform must have a database contains the speed limit value of each road ,if not , we can only supply the fixed highest speed limiter for you, it means that we can only set one or two high speed limit vale in this product. |
|
Other extension functions |
8) The (G-SENSOR) acceleration sensor interface reserved, can open for some customer need. |
2. Application Field:
1.Vehicle Commanding and Dispatching System;
2.Heavy Construction Vehicles Tracking Device;
3.Dangerous goods transportation;
M6 Ethiopia Certificate CE Gps Speed Limiter Speed Limit 25/30 With Trailer
3. Technical Parameter:
| Content | Specs. |
| Dim. | 117*92*31 (mm) |
| Weight | 280g |
| Network | GSM/GPRS/GPS |
| Band | 850/900/1800/1900MHz |
| GPS chip | U-blox |
| GSM/GPRS Module | SIM800C |
| Bluetooth Module | BT360I |
| CPU | STM32F105RBT6 |
| Power IC | TD1509-ADJ |
| Anti-jamming | Strengthened Anti-jamming |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5 m |
| Time To First Fix |
Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
| Work Voltage | DC 9V－36V |
| Battery | Rechargeable 3.7V / 1000mAh Li-ion battery (Customizable) |
| Standby work current | < 40mA |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
M6 Ethiopia Certificate CE Gps Speed Limiter Speed Limit 25/30 With Trailer
3. Including
| Fixed Speed Control |
| Reverse Speed Control |
| Acceleration Control |
| Variable Top Speed Control |
| Location Based Control |
| Over the Air Updates |
| Real Time Vehicle Tracking |
| Real Time Vehicle Health |
| Driver Behavior Analysis |
Analysis of the content of tcp reply:
(TP121.201.110.106P7000DD000019171223244F0000S0014R0000ON30OFF60VJun 12 2020A:CMNET,p450,s80,c15, 0.360V, 0.720V,12.43V,a0,G00,-59 dbm)
TP121.201.110.106 P7000: IP and port
DD000019171223244: device ID number
F0000S0014: upload data fail 0 times, successful 14 times
R0000: memory data is 0
ON30OFF60: interval of acc on is 30 seconds, and acc off is 60 seconds
VJun 12 2020: firmware of the devices is JUN 12 2020
A:CMNET: the APN is CMNET
p450: Pulse coefficient is 450 (If the pulse coefficient is larger, the speed will be smaller)
s80: speed limiter max =80km/h
c15: For mechanical throttle, the time to disconnect the fuel line is 15 seconds
0.360V, 0.720V: Two throttle voltage values for electronic throttle vehicles
12.43V: vehicle voltage values
a0: a0 is acc off, a1 is acc on
G00: G00 means GPS not fixed, G10 means 10 satellites found
-59 dbm: GSM signal
4. Installation:

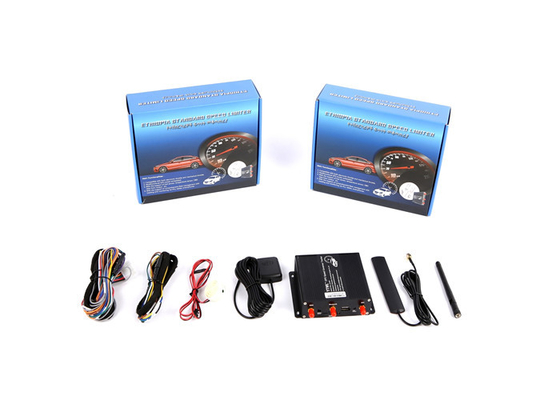

1) Product Accessory:
① Power wire
② Executor wire
③ Extension wire
④ Speaker
⑤ GPS Antenna
⑥ GSM Antenna
⑦ SIM Card Slot
⑧ User Manual
5. ADD GPS device to the platform
About platform
1. Load the GPS platform: www.gps-go.com
User:xxxx password:123456
Note: xxxx is the platform account, need to contact with salesman to get this account name and password
For APP, search gps-go in google store or download from this QR:
2. The platform functions and report
3. Track : you can see the real-time location of the vehicle
Technical specifications for Goods
· Speed Limiter Device with Integrated GPS: As per standard set by Ethiopian Standard Agency Standard Road Vehicle-GPS integrated Speed limiter Devices Requirements
· To provide Warranty for two years for any problem that arise due to the device internal problem but this doesn’t include for damage due to external force , extreme heat, fire or voltage of electricity or when the devise is opened by any other person other than the company’s technician
· Speed Limit Equipment competency Verification Certificate is approved by the Ethiopian Road Authority to supply and install Speed Limiter with integrated GPS system.
· Committed to comply with Human rights and labour issues (e.g. fundamental principles and rights at work, occupational health and safety, fairly traded goods, etc)
