Application: | All Cars | Speed Limiting Deviation: | ±5Km/H |
---|---|---|---|
Yellow Line A+: | Input(close To The Accelerator Pedal ) | Green Line A-: | Input(close To The Accelerator Pedal ) |
Brown Line B+: | Output(close To The ECU) | Working Current: | <200mA |
White Line B-: | Output(close To The ECU) | Net Weight: | 0.24kg |
Color: | Black | ||
High Light: | Ethiopia Car Speed Limiter,10W Car Speed Limiter,200mA Vehicle speed limiter |

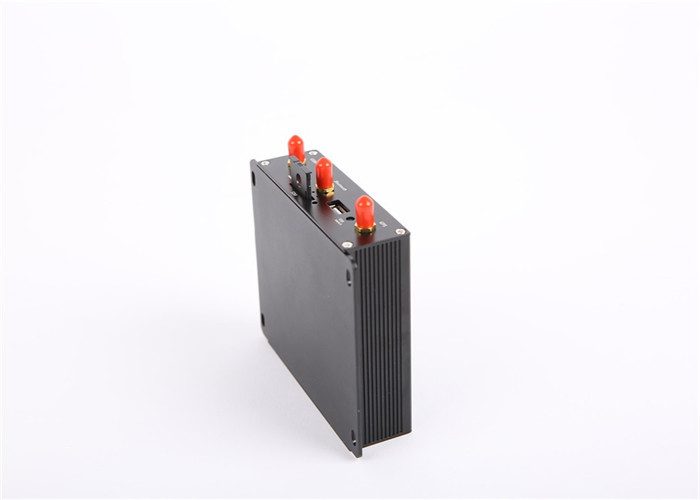

CA100 10W 200mA M25 Ethiopia Car GPS Speed Limiter/ Speed Cotroller
1. Product Brief:
Vehicle speed limiter CA100F is a intelligent terminal equipment which can realize precise speed limiting for vehicles. It is not only a speed limiter but also a GPS Tracker.
The product adopts ARM intelligent chip, speed control precision is very high , and the performance is reliable. It will not affect the big throttle start nor the power torque, stable and reliable; Only limit the maximum speed, the vehicle will not stall during speed limiting, and ensure the throttle pedal free movement in the right speed range.
2.CA100F reserves a wealth of interface, can work together with a variety of external equipment, with high compatibility and performance.
Technical Parameter
Item | Parameter |
Overall Size | 11.8*9.2*3.1 CM |
Net Weight | 0.24 KG |
Communication Module | GSM/GPRS |
Processing Chip | ARM |
Speed limit Scope | 10-120KM/H |
Speed Limit Deviation | ±5KM/H |
Working Voltage | DC 9V—36V |
Rated Power Consumption | 10W |
Working Current | <200mA |
Working Temperature | -40°C to +85°C |
Operating Humidity | 20%--90% |
Car Speed Limiter On A Road M25 Ethiopia Standard Gps Speed Limiter
SMS command:
1 | FACTORY*123456 | Setting back to factory default |
2 | CHANGEPW*123456*138138 | New Password:138138 |
3 | SPEED*123456*080 | Set Speed OK: 80 |
4 | RESET*123456 | Cancel all alarm setting and re-power on |
5 | INTERVAL*123456*030 | Set Interval 30 s OK |
6 | IP*123456*112.33.44.211,2332 | IP SET OK |
7 | NUMBER*123456*13612345678 | NEW ID: 13612345678 |
8 | APN*123456*CMNET | APN: CMNET |
9 | USERNAME*123456*username*userpass | USERNAME:username, PASSWORD: userpass |
10 | TIMEZONE*123456*+08 | TIMEZONE: +08 |
11 | UPGRADE*123456*12.13.14.25,6660 | Upgrade Main Starting!!! |
12 | ACCON*123456*30 | Set Acc On Interval 30s OK |
13 | ACCOFF*123456*60 | Set Acc Off Interval 60s OK |
14 | AT30SUM0 | Set Auto track 30s OK |
15 | ANGLE*123456*60 | Set Angle 60 OK |
16 | TCP | Device Info |
17 | PLUSE*123456*450 | Set pluse parameter 450 OK |
18 | STARTIDLE*123456 | Start Idle Voltage OK: 0.360, 0.720 |

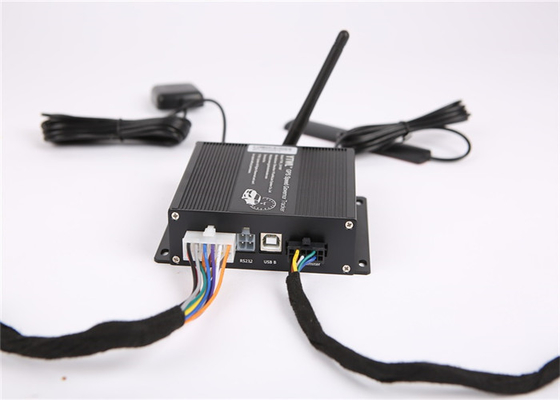

3.Product Accessory:
① Power wire
② Executor wire
③ Buzzer (optional part )
④ GPS Antenna
⑤ GSM Antenna
⑥ SIM Card Slot
⑦ Bluetooth printer
⑧ Bluetooth antenna

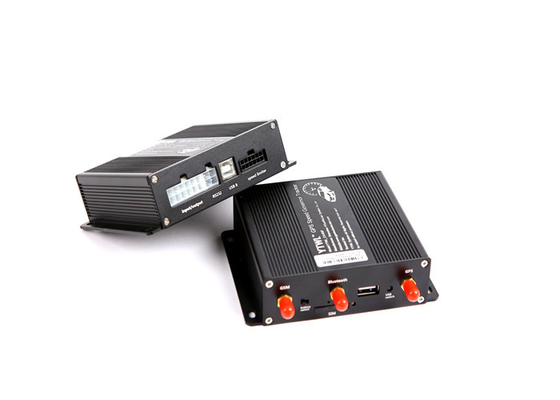

CA100 10W 200mA M25 Ethiopia Car GPS Speed Limiter/ Speed Cotroller

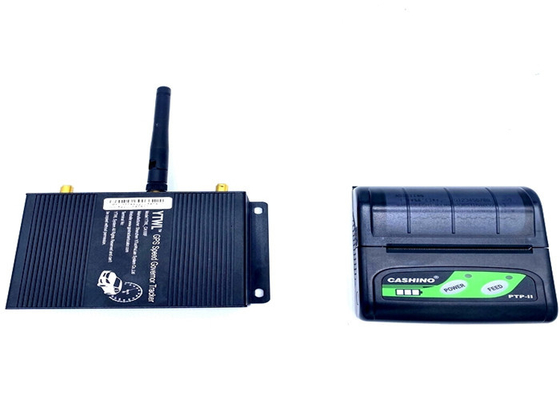

4.. Bluetooth printer:
Printer power light--Blue light if it is steady light indicates Bluetooth connection is normal, if blue light is off, Bluetooth is not connected
Fixed Speed Control
Customized fixed maximum top speed limit that increases the safety and fuel economy of your fleet.
Reverse Speed Control
Limits a vehicle's top speed in reverse. Limiting reverse top speed increases safety during a statistically high-risk category of operation.
Acceleration Control
Controls the rate at which the vehicle is able to accelerate. Inhibiting aggressive driving behaviors, increasing safety, and greatly improving fuel economy.
Upgradeable to ISA
Upgrade your VMS from fixed top speed limiting to variable top speed limiting at any time with our optional SpeedIQ kit. The upgrade offers even gOverride Mode
Configurable overrides by a variety of input methods. This capability is especially useful for Emergency Services and other who require access to full speed and acceleration at times
1 |
|
2 |
|
3 |
|
6. After-sale service:
Warranty statement:
The specification are subject to modification without notice.
If the appearance and color of the product is changed, please take the actual product as the standard.
This warranty card is only applicable to the following listed IMEI/ID machine.
Please keep this warranty card, and please present this card and the original purchase receipts when repair service.
This is the basic certificate of warranty, please fill in this card carefully and keep it well.
7. Installation steps:
This product is applicable for the widely used EFI vehicles and the old cable-drawing type oil injection vehicles .
For the old cable-drawing oil injection vehicles,we need add a actuator to realize the speed limit function. We connect the steel cable of the actuator to the vehicle throttle drawing cable from the opposite side, to form a counter force. When the vehicle is over speed, the the steel cable of the actuator will draw the vehicle throttle drawing cable from the opposite side, thus the throttle valve mouth will get smaller, to realize the compulsive speed limit function.
For EFI vehicle, the limiter will simulate the voltage value of the throttle sensor, when the vehicle is over speed, The limiter will give ECU a idle voltage value, ECU will control the throttle according to this voltage value. When the vehicle is over speed, The limiter will give ECU a idle voltage value, ECU will control the throttle according to this voltage value. When the vehicle is in normal driving state(not over speed), the throttle sensor will give ECU normal driving voltage, let the vehicle keeping normal driving.
