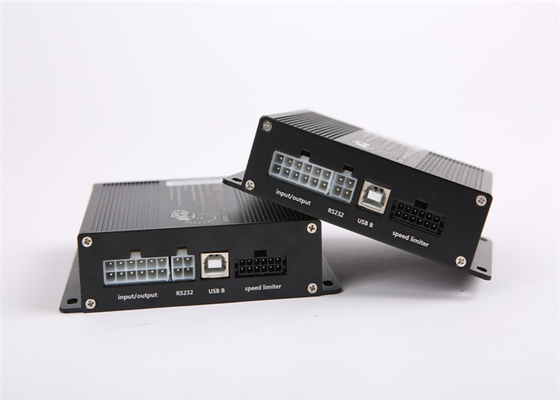

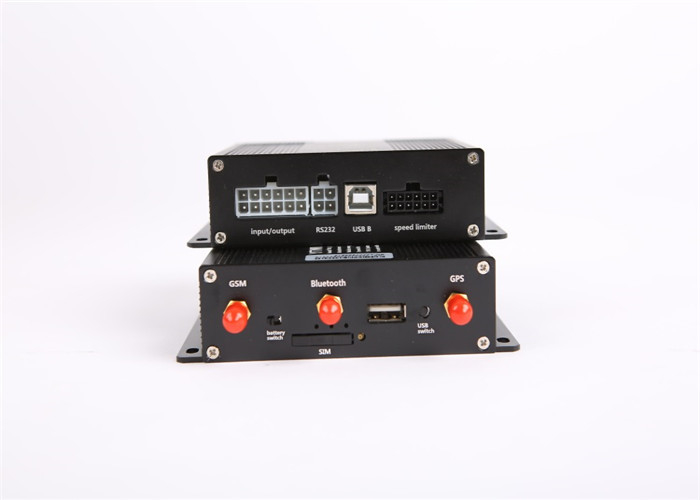

YTWL_CA100F ARM 10W 200mA 5KM/H Gps Speed Limiter
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

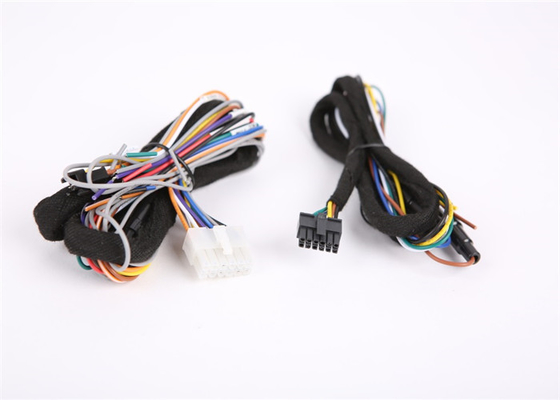

| Product Name: | Gps Speed Limiter | Product Accessory:: | Extension Wire |
|---|---|---|---|
| Net Weight: | 0.24kg | Speed Range: | 200km/h |
| Material: | Steel | Emergency Alarm: | Support |
| Speed Limter Devition: | ±5KM/H | Transportation: | Air Transportation,Air Sea Express |
| Anti-theft Alarm: | Compatible | ||
| High Light: | 200mA Gps Speed Limiter,5KM/H Gps Speed Limiter,10W ARM Speed Limiter |
||
YTWL_CA100F Gps Speed Limit night speed limit CE certificate DC 9V-36V
1. Product Brief:
intelligent vehicle speed limiter CA100A-2G is an independent R&D patent product. It is a vehicle terminal equipment which integrates cloud computing, cloud services, local maps and other technologies to realize precise intelligent vehicle speed control. It combines the Internet, the platform server, the vehicle terminal system perfectly, to reduce the accident rate by the flexible speed limit mode , and provides a nice use experience for the drivers.
The product send the vehicle speed and position information to the platform server by GPS. The platform will make comprehensive operating and send the speed limiting order to the product according to the local map data base. The product will execute this order to realize this function.
The product adopts ARM intelligent chip, speed control precision is very high , and the performance is reliable. It will not affect the big throttle start nor the power torque, stable and reliable; Only limit the maximum speed, the vehicle will not stall during speed limiting, and ensure the the throttle pedal free movement in the right speed range.
CA100A-2G reserves a wealth of interface, can work together with a variety of external equipment, with high compatibility and performance.
2. Product Function:
| Limiting Mode | Limiting Function Introduction |
| Differentiate Road Section Intelligent Speed Limiting | Limit the highest vehicle speed according to the current road speed limit value.Such as: if the current road speed limit value is 80 Km/h,the product can control the highest vehicle speed is within 0 ~ 80 Km/h. If the road limit value is 100 Km/h,the product can control the vehicle speed keep within 100 Km/h. |
| Differentiate Time Intelligent Speed Limiting | Limit the highest vehicle speed according to different time period . Such as: if you set the highest driving speed as 50Km/h from 2.00-5:00, and 80Km/h for the other time period. So this product can control the vehicle highest speed as 50Km/h from 2.00-5:00, and 80Km/h for the other time period as your order. |
| Differentiate Vehicle Type Intelligent Speed Limiting |
Limit the highest vehicle speed according to different vehicle type. Such as: for high speed compact car ,limit within 120Km/h; for large vehicle, limit within 100Km/h; for dangerous goods transporter, limit within 60Km/h. |
| Differentiate Road Type Intelligent Speed Limiting |
Limit the highest vehicle speed according to different road type. Such as: on high-speed road, speed limit within 120 100Km/h; for fast road, speed limit within 100 Km/h, State Road 60Km/h, county road limit 50Km/h, this product according to road speed limit. |
| Fixed Highest Speed Limiting | Can set only one or two highest driving speed value for the vehicle. Such as: According to the government regulations, some vehicle should not driving over 100Km/h(or any other appointed speed), the product can control the vehicle keep driving within 100Km/h(or any other appointed speed) |
| Note | All the intelligent speed limit function need platform support, it means your platform must have a database contains the speed limit value of each road ,if not , we can only supply the fixed highest speed limiter for you, it means that we can only set one or two high speed limit vale in this product. |
|
Other extension functions |
|
YTWL_CA100F Gps Speed Limit night speed limit CE certificate DC 9V-36V
3.Speed Limiter Requirements
Technical Parameter
| Item | Parameter |
| Overall Size | 10.5*8.3*3.1 CM |
| Net Weight | 0.24 KG |
| Communication Module | GSM |
| Processing Chip | ARM |
| Speed limit Scope | 40-120KM/H |
| Speed Limit Deviation | ±5KM/H |
| Mechanical Bearing Capacity | 400N |
| Working Voltage | DC 9V—36V |
| Rated Power Consumption | 10W |
| Working Current | <200mA |
| Working Temperature | -40°C to +85°C |
| Operating Humidity | 20%--90% |
YTWL_CA100F Gps Speed Limit night speed limit CE certificate DC 9V-36V
- The road speed limiting device shall have in built features that allow functionality checks and shall have special inspection devices for this purpose to facilitate the checking when the vehicle is not in motion ;
- The speed limiter function shall be independent of the condition or soundness of the speedometer ;
- When the vehicle, running at its set speed and with the driver's accelerator at its position of maximum travel, is subject to an accelerating force due to a down gradient,the limiter shall control speed by restricting the engine power to the limiter's minimum
engine power control setting; - Road speed limiting device shall have a users and technical's manual, both written in English/Amharic.
- The device should provide functional check facility by which the set speed and functioning can be checked by the field and other concerned authorities;
- The input speed signal shall be obtained from global navigating system (GNS) or speedometer vehicle speed signal or a converted speed signal from vehicle gearbox or from other separately installed sensor as deemed appropriate.
5. Technical Parameters:
| Item | Parameters |
| Overall Size | 2 0.0 X 9.2 X 4.5 CM |
| Host Net Weight | 0.4 KG |
| Processing chip | STC |
| Speed Limiting Zone | 20-200 Km/H |
| Speed Limiting Deviation | ±5Km/H |
| Mechanical Bearing Capacity | 400N |
| Working Voltage | -36 V |
| Rated Power Consumption | <0.3 W |
| Working Current | 200 mA |
Vehicle speed limiters & GPS trackers
Ethiopia has provisionally agreed new rules that state speed limiters will become mandatory for all vehicles sold throughout the country.
