ARM 10w 120km/h 200mA Ethiopia Car Gps Governor
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Net Weight: | 0.24kg | Communication Module: | GSM |
|---|---|---|---|
| Support: | ARM | Speed Limit Scope: | 40-120km/h |
| Mechanical Bearing Capacity: | 400n | Rated Power Consumption: | 10w |
| Function: | Speed Control | Working Current: | <200mA |
| High Light: | 200mA Car Gps Governor,Ethiopia Car Gps Governor,120km/h Auto Speed Limiter |
||
Ethiopia Car Accessary Gps Governor 200mA Car And Trailer Speed Auto Speed Limiter
Production details:

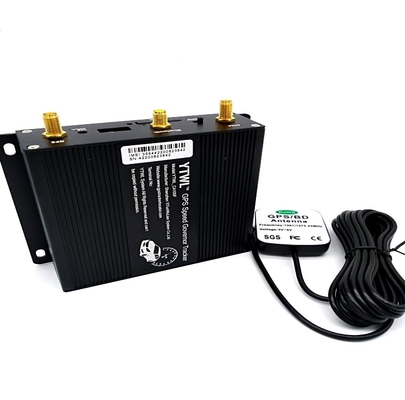

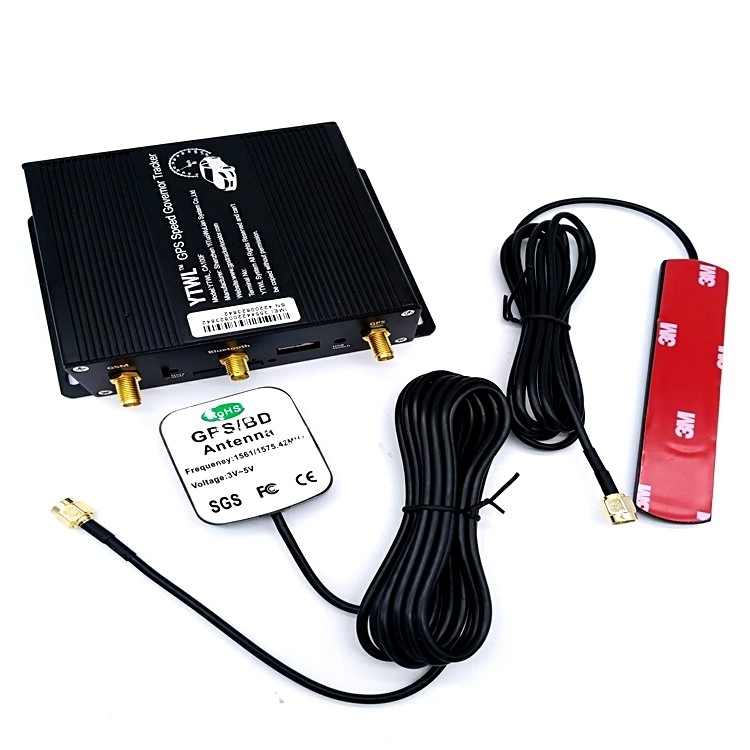

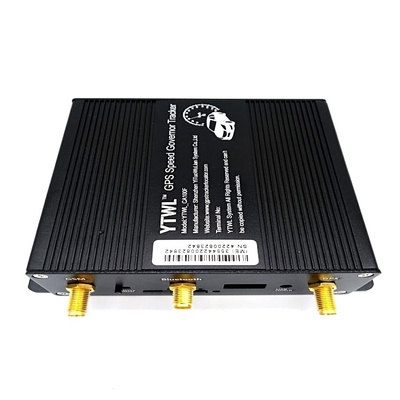

GPS vehicle speed limiter CA100F is a intelligent terminal equipment which can realize precise speed limiting for vehicles. It is not only a speed limiter but also a GPS Tracker.
No malfunction or unauthorized interference shall result in an increase in engine power above the demanded by the position of the driver's accelerator. The malfunction of the speed limiter devices shall not affect the normal vehicular performance;
Normative references
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ES IEC 60068-2-1, Environmental testing - Part 2-1: Tests - Test A: Cold stability
ES IEC 60068-2-2, Environmental testing - Part 2-2: Test - Test B: Dry heat stability
ES IEC 60068-2-38, Environmental testing - Part 2-38: - Test - Test ZlAD: Composite temperature / humidity
Cyclic test stability
ES ISO 7637-1, Road vehicles - Electrical disturbances from conduction and coupling -
Part 1: Definitions and
general considerations
ES ISO 7637-2, Road vehicles - Electrical disturbances from conduction and coupling -
Part 2: Electrical
transient conduction along supply lines only.
ES IEC 60068-2-14 "Basic Environmental Testing Procedures for Electronic and
Electrical Items Damp Heat
(Cyclic) Test"
Ethiopia Car Accessary Gps Governor 200mA Car And Trailer Speed Auto Speed Limiter
Product Function:
| Limiting Mode | Limiting Function Introduction |
| extension functions | 1) Mainly used in Kenya to control vehicle speed and further expand the market for auto speed limiters in Ethiopia. |
| 2) Vehicle speed pulse detection; it is a speed limiter and also a GPS tracker, surpassing the traditional GPS tracker. | |
| 3) One channel high input detection, one channel low input detection; | |
| 4) One channel power-off control output, one channel oil-off control output; | |
| 5) Three channels of analog input. One is used for fuel consumption data detection, another is used for the ordinary analog voltage detection, the third one is for standby; | |
| 6) One channel RS232 defining interface; | |
| 7) One channel RS232/RS458 compatible interface; | |
| 8) The (G-SENSOR) acceleration sensor interface reserved, can open for some customer need. | |
| Differentiate Road Section Intelligent Speed Limiting | Limit the highest vehicle speed according to the current road speed limit value.Such as: if the current road speed limit value is 80 Km/h,the product can control the highest vehicle speed is within 0 ~ 80 Km/h. If the road limit value is 100 Km/h,the product can control the vehicle speed keep within 100 Km/h. |
| Differentiate Time Intelligent Speed Limiting | Limit the highest vehicle speed according to different time period . Such as: if you set the highest driving speed as 50Km/h from 2.00-5:00, and 80Km/h for the other time period. So this product can control the vehicle highest speed as 50Km/h from 2.00-5:00, and 80Km/h for the other time period as your order. |
| Differentiate Vehicle Type Intelligent Speed Limiting | Limit the highest vehicle speed according to different vehicle type. |
| Such as: for high speed compact car ,limit within 120Km/h; for large vehicle, limit within 100Km/h; for dangerous goods transporter, limit within 60Km/h. | |
| Differentiate Road Type Intelligent Speed Limiting | Limit the highest vehicle speed according to different road type. |
| Such as: on high-speed road, speed limit within 120 100Km/h; for fast road, speed limit within 100 Km/h, State Road 60Km/h, county road limit 50Km/h, this product according to road speed limit. | |
| Fixed Highest Speed Limiting | Can set only one or two highest driving speed value for the vehicle. Such as: According to the government regulations, some vehicle should not driving over 100Km/h(or any other appointed speed), the product can control the vehicle keep driving within 100Km/h(or any other appointed speed) |
| Note | All the intelligent speed limit function need platform support, it means your platform must have a database contains the speed limit value of each road ,if not , we can only supply the fixed highest speed limiter for you, it means that we can only set one or two high speed limit vale in this product. |
Ethiopia Car Accessary Gps Governor 200mA Car And Trailer Speed Auto Speed Limiter
| Technical Parameter | |
| Item | Parameter |
| Overall Size | 10.5*8.3*3.1 CM |
| Net Weight | 0.24 KG |
| Communication Module | GSM |
| Processing Chip | ARM |
| Speed limit Scope | 40-120KM/H |
| Speed Limit Deviation | ±5KM/H |
| Mechanical Bearing Capacity | 400N |
| Working Voltage | DC 9V—36V |
| Rated Power Consumption | 10W |
| Working Current | <200mA |
| Working Temperature | -40°C to +85°C |
| Operating Humidity | 20%--90% |
When the vehicle, running at its set speed and with the driver's accelerator at its position of maximum travel, is subject to an accelerating force due to a down gradient, the limiter shall control speed by restricting the engine power to the limiter's minimum engine power control setting.The speed limiting device shall be so designed, constructed and assembled so as to resist vibrations, corrosion, dust, humidity, petrochemicals and aging phenomena to which it may be exposed.
| Features |
| Fixed Speed Control |
| Reverse Speed Control |
| Acceleration Control |
| Variable Top Speed Control |
| Location Based Control |
| Over the Air Updates |
| Real Time Vehicle Tracking |
| Real Time Vehicle Health |
| Driver Behavior Analysis |
