Vehicle Auto Speed Limiter With Relay For Ethiopia Mechanical Throttle Model Car

Vehicle Auto Speed Limiter with Relay for Ethiopia Mechanical Throttle Model Car

1 Speed Limiter GPS Product Specifications

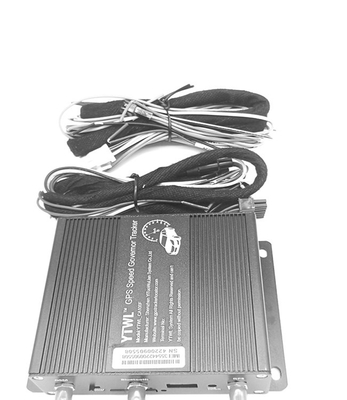

    Vehicle speed limiter CA100F is an intelligent terminal equipment which can realize precise speed limiting for vehicles. It is not only a speed limiter but also a GPS Tracker.Speed control precision is very high and the performance is reliable. It will not affect the big throttle start nor the power torque, stable and reliable. It only limits the maximum speed and the vehicle will not stall during speed limiting, and ensure the throttle pedal free movement in the right speed range.

2. Speed Limiter Requirement

Vehicle Auto Speed Limiter with Relay for Ethiopia Mechanical Throttle Model Car

1. Speed limiter device shall be so designed, constructed and assembled and fitted to the vehicle to make it maximum tamper proof and fail safe, against various factors such as disconnection / failure of various components e.g. power supply, speed sensor,
   mechanical actuator system, linkages etc. or any unauthorized modification and adjustment to the system;
2. Speed limiter devices shall be so constructed that the vehicle may not be accelerated by the operation of the acceleration devices, such as the accelerator pedal,when the vehicle is running at its set speed.
3. The device shall support hand held portable printer (Bluetooth, WiFi, etc) enabled;
4. The speed limiter device system shall be able to be verified. Authenticated and tested whilst the vehicle is "on" the road.
5. The road speed limiter device shall allow normal acceleration and full engine power up to the set maximum speed limit when the limitation function comes to play.
6. The speed limiting function shall not cause engine back firing.

• How to connect the relay?

          Answer:Relay have 4 lines:87A and 30PIN are respectively connected to the two ends of the cut oil pump line;86 connects 12V or 24V power line in series;85PIN connects to the white line of the GPS speed limiter.Note: Control the speed of the speed limiter with above way, the delay of the speed limit will be relatively large. For example, if the speed limit is set to 40km/h, the car can also run up to 50km/h during acceleration. So, find the car pulse speed line and calibrate the pulse speed, the delay will be much smaller.For vehicles with mechanical throttle, if want to limit the speed without delay, need connect a solenoid valve and use a relay to control the solenoid valve to achieve the purpose of real-time speed limit.

• Does the speed limiter have the managment fleet platform?
