Ethiopia Car Speed Limiter Town Speed Limit Tools Vehicle Accelerator Pedal Line
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | CA100F Speed Limiter | Processing Chip: | ARM |
|---|---|---|---|
| Network: | GSM/GPRS/GPS | Anti-jamming: | Strengthened Anti-jamming |
| GPS Sensitivity: | -159dBm | Speed Limiting: | 30kM/H |
| Mechanical Throttle: | Connect Solenoid Valve | Vehicles: | Need Add The Relay |
| Printer: | Bluetooth | ||
| High Light: | ARM Car Speed Limiter,30KM/H Car Speed Limiter,GSM Vehicle Speed Limiter |
||
Ethiopia Car Speed Limiter Town Speed Limit Tools Vehicle Accelerator Pedal Line
1 Speed Limiter GPS Product Specifications

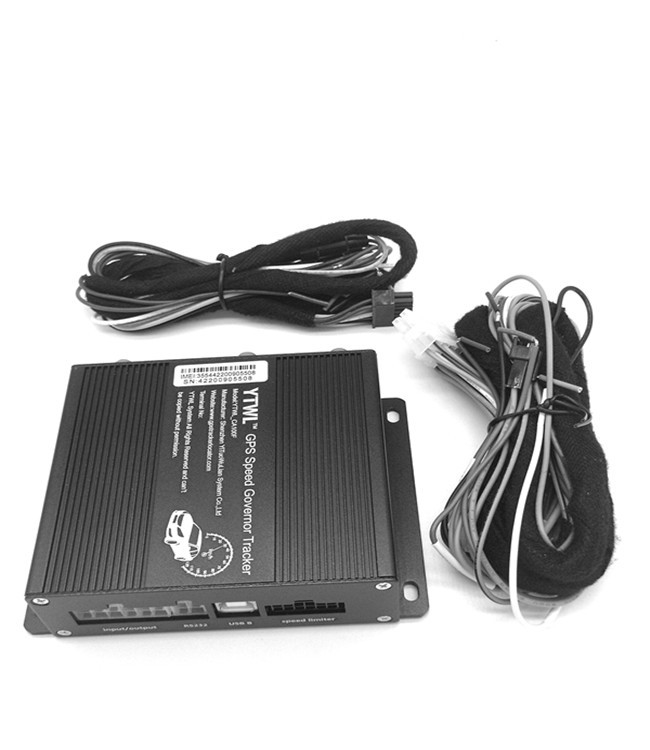

Vehicle speed limiter CA100F is an intelligent terminal equipment which can realize precise speed limiting for vehicles. It is not only a speed limiter but also a GPS Tracker.Speed control precision is very high and the performance is reliable. It will not affect the big throttle start nor the power torque, stable and reliable. It only limits the maximum speed and the vehicle will not stall during speed limiting, and ensure the throttle pedal free movement in the right speed range.
2.Speed Limiter LED indicator
- The red light is the power indicator. If it is steady, it indicates that the main power is on, and the off indicates that the main power is off.
- Blue is the GPS indicator, always on indicates GPS positioning, and off means that GPS is not positioned.
- Green is the system indicator. If it is steady, it indicates that the GSM network is not registered. Flashing indicates that the GSM network has been registered. Flashing twice indicates that GPRS is connected.
3. Speed Limiter Requirement
Ethiopia Car Speed Limiter Town Speed Limit Tools Vehicle Accelerator Pedal Line
- The speed limiting function shall be performed progressively in such a mariner that excessive juddering or discomfort is not caused;
- No malfunction or unauthorized interference shall result in an increase in engine power above the demanded by the position of the driver's accelerator. The malfunction of the speed limiter devices shall not affect the normal vehicular performance.
- The device should provide functional check facility by which the set speed and functioning can be checked by the field and other concerned authorities;
- Road speed limiting device shall have a users and technical's manual, both written in English/Amharic.
- All speed limiter device system shall able to be checked for accuracy and functionality.
- The speed limiter device system shall be able to be verified. Authenticated and tested whilst the vehicle is "on" the road.
3.Speed Limiter With Document requirement:
Ethiopia Car Speed Limiter Town Speed Limit Tools Vehicle Accelerator Pedal Line
- At minimum name of the manufacturer; serial number. month and year of manufacture details shall be marked on each speed limiter device.
- The manual shall include at minimum the following information.
i. The expected behavior of a vehicle where a road speed limiter has been fitted. '
ii. Driving tips for a vehicle where road speed limiter has been installed
iii. What should not be done to the installed road speed limiters
iv. What should be done in case of malfunction
v. The liability of the owner or driver of vehicle for tampering with the road speed limiters. - Technicians manual shall include at minimum the following information.
i. Principles of operation covering details of how the road speed limiter works.
ii. Fitting Instructions.
iii. Calibration or programming instructions.
iv. Inspection and functionality checks.
v. Maintenance and troubleshooting instructions.
vi. Parts list.
vii. Manufacturers name and authorized trade mark.
viii. Model.
4.Speed Limiter FAQ
- How to connect the relay?
Answer:Relay have 4 lines:87A and 30PIN are respectively connected to the two ends of the cut oil pump line;86 connects 12V or 24V power line in series;85PIN connects to the white line of the GPS speed limiter.Note: Control the speed of the speed limiter with above way, the delay of the speed limit will be relatively large. For example, if the speed limit is set to 40km/h, the car can also run up to 50km/h during acceleration. So, find the car pulse speed line and calibrate the pulse speed, the delay will be much smaller.For vehicles with mechanical throttle, if want to limit the speed without delay, need connect a solenoid valve and use a relay to control the solenoid valve to achieve the purpose of real-time speed limit.
- can the pulse speed be showed on platform?
Answer:Yes,From platform, you can see the speed limit value and the pulse speed value
- Does the speed limiter have IMEI and ID number?
Answer:Yes,our speed limiter has IMEI and ID number.
5 The speed limiter SMS comand
| 1 | FACTORY*123456 | Setting back to factory default |
| 2 | CHANGEPW*123456*138138 | New Password:138138 |
| 3 | SPEED*123456*080 | Set Speed OK: 80 |
| 4 | RESET*123456 | Cancel all alarm setting and re-power on |
| 5 | UPGRADE *123456*39.108.130.237,2332 | Upgrade Main Starting!!! |
| 6 | TCP | Device Info |
| 7 | PULSE*123456*450 | Set PULSE parameter 450 OK |
| 8 | oiltime*123456*5 | change the cut off fuel time to 5 seconds (only for the mechanical throttle car ) |
| 9 | Cutoil*123456 | Cut off the fuel remotely |
| 10 | Supplyoil*123456 | Supply fuel remotely |
