Speed Limiter With GPS GPRS GSM Wireless Antenna Ethiopia Car

I'm Online Chat Now
Certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

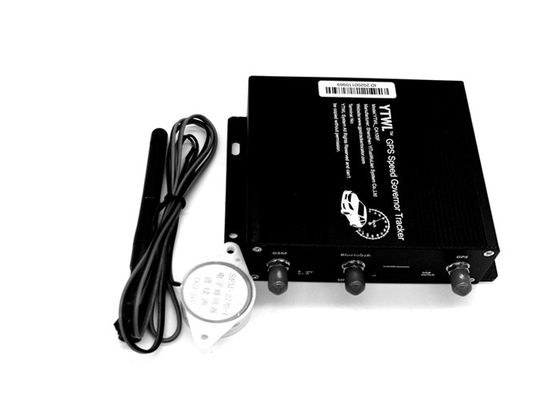

Speed Limiter With GPS GPRS GSM Wireless Antenna Ethiopia Car

Speed Limiter With GPS GPRS GSM Wireless Antenna Ethiopia Car
Speed Limiter With GPS GPRS GSM Wireless Antenna Ethiopia Car Speed Limiter With GPS GPRS GSM Wireless Antenna Ethiopia Car Speed Limiter With GPS GPRS GSM Wireless Antenna Ethiopia Car

Large Image :  Speed Limiter With GPS GPRS GSM Wireless Antenna Ethiopia Car Get Best Price

Product Details:

Place of Origin: China
Brand Name: cartrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA100F

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 100,000pcs per month
Detailed Product Description
Product Name: CA100F Speed Limiter Processing Chip: ARM
GPRS: Class12, TCP/IP Network: GSM GPRS 3G 4G WCDMA LTE
Product Accessory:: Extension Wire Engine Cut Off: Control Engine Remotely
OEM: Accept GPS Precision: 10m(2D RM)
Working Voltage: 9V-36V Working Current: <200mA
High Light:

vehicle gps tracking device

,

car gps tracker device



Speed Limiter With GPS GPRS GSM Wireless Antenna Ethiopia Car



1 Speed Limiter GPS Product Specifications



Color Black Application free android and IOS app
Input Fuse 5A CPU TI:MSP430F5419(100MHz)
Battery Lithium battery :400mA( working time is about 3.5 hours) Warranty 2 years
Item Name Top selling shine Function camera gps fleet tracker
Working Temperature Anna Shi MOQ 10 Pieces
GSM Module GSM Module:SIM5320
Band:850/900/1800/1900/2100MHz,
Tally with: GSM phase 2/2+
-Class 4 (2W @ 850/900MHz)
-Class 1 (1W @ 1800/1900MHz)
Max RF Output: 33.0dBm±2dBm
Dynamic Input Range: -15 ~ -102dBm
Receiving delicacy: Class RBER≤2%(-102dBm)
Frequency Stability: > 2.5ppm
Max Frequency Deviation: ±0.1ppm
RMS Deviation: ≤5deg
GPS Module GPS chip set: SiRF Star III
Frequency: L1, 1575.42 MHz
Number of Channel: 20
Reacquisition: 0.1 sec, average
Hot boot: 2 sec., average
Warm boot: 38 sec., average
Cold boot: 44 sec., average
Altitude limit: 18000 m
Velocity limit: 515 m/s
GPS SMS Command list
  1. Check Device Status :STATUS#
  2. Check Device parameters :PARAM#
  3. Check GPRS Parameters :GPRSSET#
  4. Check Device Lat. And Log. :WHERE#
  5. Check Server parameters :SERVER#
  6. Reset Device :RESET#
  7. Add SOS Number :SOS,A, Number 1,Number 2,Number 3#
Input I/O 8 I/O input/output Port
1 main power check
1 port use to check the engine ( ACC check)
1 port use to SOS
1 analog Input port( Fuel sensor)
1 Output port ( Car engine control )
3 Extend ports ( Input/Output control by software)



























2. Speed Limiter Requirement

Speed Limiter With GPS GPRS GSM Wireless Antenna Ethiopia Car



  1. The road speed limiting device shall be designed and constructed in such a way that it can be fitted in a place not easily accessible;
  2. The road speed limiting device shall have in built features that allow functionality checks and shall have special inspection devices for this purpose to facilitate the checking when the vehicle is not in motion;
  3. The actuation force of the controls should not have a detrimental effect on the driver's efficiency or impose fatigue on the driver;
  4. Speed limiter devices shall be so constructed that the vehicle may not be accelerated by the operation of the acceleration devices, such as the accelerator pedal, when the vehicle is running at its set speed;
  5. The speed limiting device shall be so designed, constructed and assembled so as to resist vibrations, corrosion, dust, humidity, petrochemicals and aging phenomena to which it may be exposed.;
  6. When the vehicle, running at its set speed and with the driver's accelerator at its position of maximum travel, is subject to an accelerating force due to a down gradient,the limiter shall control speed by restricting the engine power to the limiter's minimum
    engine power control setting.
  7. No malfunction or unauthorized interference shall result in an increase in engine power above the demanded by the position of the driver's accelerator. The malfunction of the speed limiter devices shall not affect the normal vehicular performance

3.Speed Limiter status indicators



Speed Limiter With GPS GPRS GSM Wireless Antenna Ethiopia Car​

  1. Connect DC 9-100V power supply and the red LED will light continuously.The red LED is the power signal,it is always on when the external DC is connected.
  2. The blue LED is the GSM signal indicator.
    It is always on when there is no GSM;
    it flashes when GSM is normal;
    it flashes quickly when transmitting data.
  3. The yellow LED is the GPS signal indicator:
    it is always on when there is no positioning;
    it flashes after positioning.
4.Speed Limiter GPS GPRS GSM Main functions
  1. Positioning and Tracking: Through the on-line Positioning Platform or the cell phone to locates at times, and get the working status. You can choose the Positioning Platform by yourself.
  2. Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to all authorized numbers when it breaches the district
  3. Remote Monitoring: In anywhere and anytime, call the phone number in the unit, when it connects, you can monitor the sound around 5 meter.
  4. Movement Alert: Send SMS to the unit to start the movement alert function. When the vehicle is moving, the unit will send the movement alert to all authorized numbers.
  5. Mileage statistics; ACC checking; cutting off power and alarm.



5  Application Field:

  1. For School Bus ;
  2. For tour bus and passenger car management ;
  3. For logistics vehicle monitoring and management ;
  4. For tank truck monitoring and management.
  5. For limit the speed of vehicles

Speed Limiter With GPS GPRS GSM Wireless Antenna Ethiopia Car 0Speed Limiter With GPS GPRS GSM Wireless Antenna Ethiopia Car 1
