Ethiopia Level Car Speed Limiter Support Bluetooth Print Function and GPRS Tracking

Certification
Good quality Motorcycle GPS Tracker for sales
Good quality Motorcycle GPS Tracker for sales
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

I'm Online Chat Now

Ethiopia Level Car Speed Limiter Support Bluetooth Print Function and GPRS Tracking

China Ethiopia Level Car Speed Limiter Support Bluetooth Print Function and GPRS Tracking supplier
Ethiopia Level Car Speed Limiter Support Bluetooth Print Function and GPRS Tracking supplier Ethiopia Level Car Speed Limiter Support Bluetooth Print Function and GPRS Tracking supplier Ethiopia Level Car Speed Limiter Support Bluetooth Print Function and GPRS Tracking supplier

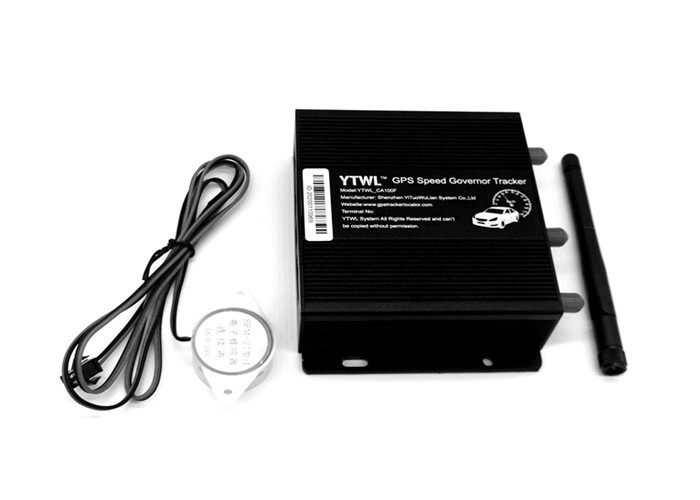

Large Image :  Ethiopia Level Car Speed Limiter Support Bluetooth Print Function and GPRS Tracking

Product Details:

Place of Origin: China
Brand Name: cartrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA100F

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 100,000pcs per month
Contact Now
Detailed Product Description
Product Name: Vehicle Speed Limiter Processing Chip: ARM
Product Accessory:: Extension Wire Original: China
Control Oil: Yes Material: Steel
Geo-fence: Support Warranty Time: 2 Years
Transportation: Air Transportation,Air Sea Express



Ethiopia Level Car Speed Limiter Support Bluetooth Print Function and GPRS Tracking



1. Speed limiter  Endurance Tests

      Endurance tests on speed limiter device should be carried out as per the following procedure and conditions specified. The device shall work satisfactorily during the tests and shall meet the performance requirements as given in 8.3. after the test.However, if any breaking down of the device occurs during one of the endurance tests, a second device can be submitted to the considered endurance tests at the manufacturer's request. The speed limiter device should be mounted on a test bench simulating the attitude and movement to simulate the vehicle conditions.
Note - For speed limiting function as inbuilt feature in the engine ECU shall be submitted to the endurance test prescribed below. However, this may be omitted if the applicant demonstrates resistance to those effects.Here "demonstration" means - Declaration by manufacturer in a format (Annex A) or Submission of relevant test reports.

2.Performance Tests on the Device as Fitted on the Vehicle



  • speed limiter device as installed on specified vehicle type can be approved as per choice of supplier by either of the following methods
  • The general requirements mentioned in clause 4 pertaining as fitted on the vehicle should be examined during the test

3 Product Specifications



Color Black Application free android and IOS app
Input Fuse 5A CPU TI:MSP430F5419(100MHz)
Battery Lithium battery :400mA( working time is about 3.5 hours) Warranty 2 years
Item Name Top selling shine Function camera gps fleet tracker
Working Temperature Anna Shi MOQ 5 Pieces
Recording and tracking
  • The recorder shall incorporate a combination of an onboard and off-board mechanism for recording and storing the speed of the vehicle.
  • The speed shall be recorded in Km/h at not more than five seconds interval.
  • The retrieved data shall clearly and in an unambiguous manner display the date (dd Imm Iyyyy) of recording.
  • Each entry shall be time related (either 24 hour or 12 hour format).
  • Each entry shall capture global position coordinates.
  • The recorded data shall be in the same format for both the onboard and off board storage Systems.
  • Memory capacity of the speed limiter device shall have a minimum capacity of saving 5,000 blind data
GPS Module GPS chip set: SiRF Star III
Frequency: L1, 1575.42 MHz
Number of Channel: 20
Reacquisition: 0.1 sec, average
Hot boot: 2 sec., average
Warm boot: 38 sec., average
Cold boot: 44 sec., average
Altitude limit: 18000 m
Velocity limit: 515 m/s
General requirements
  • Speed limiter devices shall have a built in / integrated GPS
  • Speed limiter devices shall be designed, constructed, assembled and fitted to the vehicle that it will perform satisfactorily, despite the vibrations and temperature to which it may be subjected.
  • Speed limiter devices shall be calibrated and maintained in a good working order;and capable to limit the speed of a vehicle at the set speed as stipulated by the regulatory body.
  • The speed limiter function or road speed limiter shall be EMCcompatible or shall have Anti-Jammer mechanism
Input I/O 8 I/O input/output Port
1 main power check
1 port use to check the engine ( ACC check)
1 port use to SOS
1 analog Input port( Fuel sensor)
1 Output port ( Car engine control )
3 Extend ports ( Input/Output control by software)



























3. Speed Limiter Requirements

Ethiopia Level Car Speed Limiter Support Bluetooth Print Function and GPRS Tracking



  1. The speed limiting device shall be so designed, constructed and assembled so as to resist vibrations, corrosion, dust, humidity, petrochemicals and aging phenomena to which it may be exposed;
  2. When the vehicle, running at its set speed and with the driver's accelerator at its position of maximum travel, is subject to an accelerating force due to a down gradient,the limiter shall control speed by restricting the engine power to the limiter's minimum
    engine power control setting;
  3. The road speed limiting device shall be designed and constructed in such a way that it can be fitted in a place not easily accessible
  4. The actuation force of the controls should not have a detrimental effect on the driver's efficiency or impose fatigue on the driver;
  5. Speed limiter device shall have geo-fence management feature;
  6. Speed limiter device shall remotely communicate through telecom infrastructure

4. Safety requirement

Ethiopia Level Car Speed Limiter Support Bluetooth Print Function and GPRS Tracking

  1. All cable or harness connectors in the speedometer circuit shall be wired and sealed. All connections shall be soldered and insulated with a flame proof insulation tape of adequate length of such a color as to blend well with the rest of the vehicle wiring;
  2. The speed limiter function or the Speed limiter device shall operate satisfactorily in its electromagnetic environment without unacceptable electromagnetic disturbance for any other device in the environment.
  3. The speed limiter device shall pre-warn the driver, by way of a high frequency buzzer, optionally flashing light signal can be used that the set speed is being reached.This warming shall occur at 5% prior to the set speed and shall continue buzzing once the set speed is achieved/ exceeded;
  4. When the set speed is reached, the speed limiter device shall temporarily cause the engine to lose power.Engine power shall be reinstated at a speed not less than the pre-warning switch point,which is 5% below the set speed





5. Technical Parameters:

Ethiopia Level Car Speed Limiter Support Bluetooth Print Function and GPRS Tracking



Item Parameters
Overall Size 20.0 X 9.2 X 4.5 CM
Host Net Weight 0.4 KG
Processing chip STC
Speed Limiting Zone 20-200 Km/H
Speed Limiting Deviation ±5Km/H
Mechanical Bearing Capacity 400N
Working Voltage 9-36 V
Rated Power Consumption <0.3 W
Working Current <60 mA




Set Speed Limiter GPRS user name and password



    Some country must be set GPRS user name and password for GPRS communication. The format of set GPRS user name and password is “user + space + GPRS user name + space + GPRS password”. For example, “user name 123456”, “user” is command, “name” is GPRS user name,“123456” is GPRS password. After send SMS, tracker will reply “Set GPRS User and Password ok . ” .

Ethiopia Level Car Speed Limiter Support Bluetooth Print Function and GPRS TrackingEthiopia Level Car Speed Limiter Support Bluetooth Print Function and GPRS Tracking
