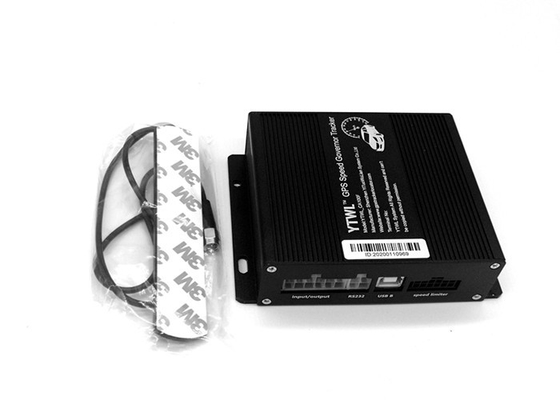

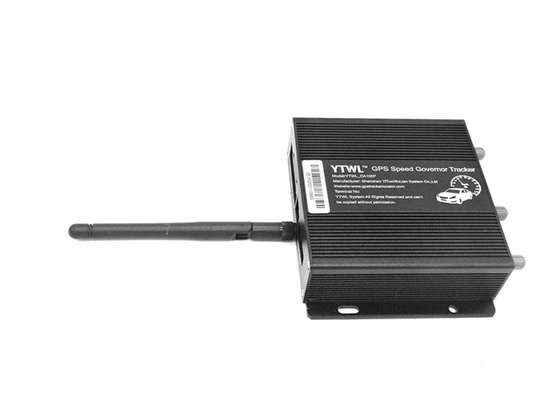

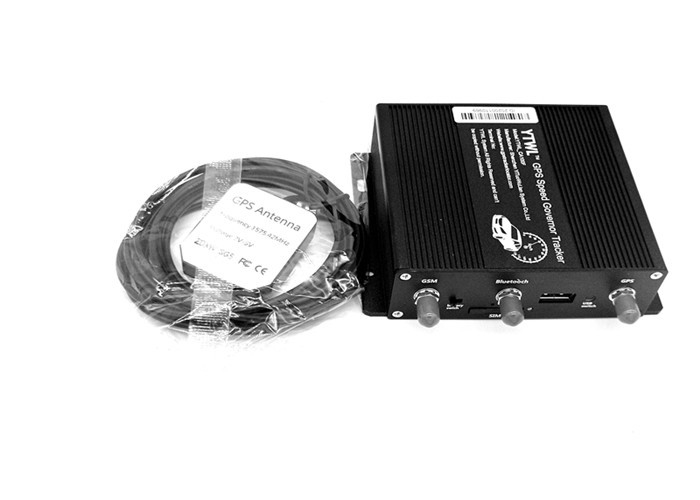

YTWL_CA100F Ethiopia Standard Road Speed Limiter with GPS Tracking Fuel System

Name: YTWL_CA100F Ethiopia Standard Road Speed Limiter with GPS Tracking Fuel System
Brand: cartrack
SKU: CA100F
Price: 1.00 USD
Availability: InStock
Rating: 5 (143 reviews)

Large Image : YTWL_CA100F Ethiopia Standard Road Speed Limiter with GPS Tracking Fuel System Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	cartrack
Certification:	CE/ROHS/FCC/SGS
Model Number:	CA100F

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	negotiation
Packaging Details:	Packed in carton firstly
Delivery Time:	1-10 working days after received your payment
Payment Terms:	T/T or western Union or paypal
Supply Ability:	100,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Vehicle Speed Limiter	Processing Chip:	ARM
Product Accessory::	Extension Wire	Original:	China
Speed Range:	1 To 200km/h	Material:	Steel
OEM:	Accept	Warranty Time:	2 Years
Transportation:	Air Transportation,Air Sea Express	Business Type:	Manufacturer
High Light:	vehicle gps tracking device , car gps tracker device

YTWL_CA100F Ethiopia Standard Road Speed Limiter with GPS Tracking Fuel System

1. Speed limiter/governor Device

a device whose primary function is to control feed to the engine in order to limit the vehicle speed to the specified value. The purpose of the Speed limiter device is to limit the maximum road speed for vehicles to a specified value without affecting the other performance parameters of the vehicle in any manner.

2.Speed limiter/governor Function

a function to control feed of the vehicle or engine management in order to limit the vehicle speed to a fixed maximum value.

3 Product Specifications

Color	Black	Application	free android and IOS app
Input Fuse	5A	CPU	TI:MSP430F5419(100MHz)
Battery	Lithium battery :400mA( working time is about 3.5 hours)	Warranty	2 years
Item Name	Top selling shine	Function	camera gps fleet tracker
Working Temperature	Anna Shi	MOQ	5 Pieces
Recording and tracking	The recorder shall incorporate a combination of an onboard and off-board mechanism for recording and storing the speed of the vehicle. The speed shall be recorded in Km/h at not more than five seconds interval. The retrieved data shall clearly and in an unambiguous manner display the date (dd Imm Iyyyy) of recording. Each entry shall be time related (either 24 hour or 12 hour format). Each entry shall capture global position coordinates. The recorded data shall be in the same format for both the onboard and off board storage Systems. Memory capacity of the speed limiter device shall have a minimum capacity of saving 5,000 blind data	GPS Module	GPS chip set: SiRF Star III Frequency: L1, 1575.42 MHz Number of Channel: 20 Reacquisition: 0.1 sec, average Hot boot: 2 sec., average Warm boot: 38 sec., average Cold boot: 44 sec., average Altitude limit: 18000 m Velocity limit: 515 m/s
General requirements	Speed limiter devices shall have a built in / integrated GPS Speed limiter devices shall be designed, constructed, assembled and fitted to the vehicle that it will perform satisfactorily, despite the vibrations and temperature to which it may be subjected. Speed limiter devices shall be calibrated and maintained in a good working order;and capable to limit the speed of a vehicle at the set speed as stipulated by the regulatory body. The speed limiter function or road speed limiter shall be EMCcompatible or shall have Anti-Jammer mechanism	Input I/O	8 I/O input/output Port 1 main power check 1 port use to check the engine ( ACC check) 1 port use to SOS 1 analog Input port( Fuel sensor) 1 Output port ( Car engine control ) 3 Extend ports ( Input/Output control by software)

3. Speed Limiter Requirements

YTWL_CA100F Ethiopia Standard Road Speed Limiter with GPS Tracking Fuel System

The speed limiter function or the speed limiter device shall allow normal accelerator control for the purpose of gear changing;
The road speed limiter device shall allow normal acceleration and full engine power up to the set maximum speed limit when the limitation function comes to play;
The speed limiter function or the road speed limiter shall not cause uncontrolled engine power;
No malfunction or unauthorized interference shall result in an increase in engine power above the demanded by the position of the driver's accelerator. The malfunction of the speed limiter devices shall not affect the normal vehicular performance;
The speed limiter function shall be obtained once the vehicle speed reaches the set maximum speed regardless of the position action on the accelerator a driver may apply;
The speed limiter function shall be independent of the condition or soundness of the speedometer.

YTWL_CA100F Ethiopia Standard Road Speed Limiter with GPS Tracking Fuel System

The road speed limiting device shall have in built features that allow functionality checks and shall have special inspection devices for this purpose to facilitate the checking when the vehicle is not in motion ;
The speed limiter function shall be independent of the condition or soundness of the speedometer ;
When the vehicle, running at its set speed and with the driver's accelerator at its position of maximum travel, is subject to an accelerating force due to a down gradient,the limiter shall control speed by restricting the engine power to the limiter's minimum
engine power control setting;
Road speed limiting device shall have a users and technical's manual, both written in English/Amharic.

4. Technical Parameters:

YTWL_CA100F Ethiopia Standard Road Speed Limiter with GPS Tracking Fuel System

Item	Parameters
Overall Size	20.0 X 9.2 X 4.5 CM
Host Net Weight	0.4 KG
Processing chip	STC
Speed Limiting Zone	20-200 Km/H
Speed Limiting Deviation	±5Km/H
Mechanical Bearing Capacity	400N
Working Voltage	9-36 V
Rated Power Consumption	<0.3 W
Working Current	<60 mA
