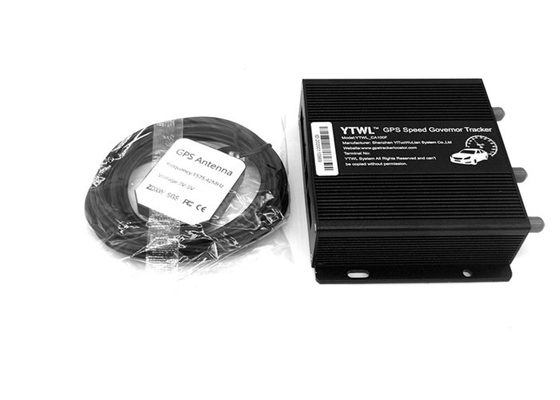

Truck Speed Limiter Car Electronic Engine Governor With Free GPS Tracking System
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Processing Chip: | ARM | Network: | GSM GPRS 3G 4G WCDMA LTE |
|---|---|---|---|
| Engine Cut Off: | Control Engine Remotely | OEM: | Accept |
| Function: | Controlling Speed, Vehicle Speed Limiter | Product Name: | Overspeed Governor |
| Applicable: | General | Business Type: | Manufacturer |
| High Light: | vehicle gps tracking device,car gps tracker device |
||
Ethiopia Standard Truck Speed Limiter Car Governor with Free GPS Tracking System
1 Product Specifications
| Dim. | 117*92*31 (mm) |
| Weight | 280g |
| Network | GSM/GPRS/GPS |
| Band | 850/900/1800/1900MHz |
| GPS chip | U-blox |
| GSM/GPRS Module | SIM800C |
| Bluetooth Module | BT360I |
| CPU | STM32F105RBT6 |
| Power IC | TD1509-ADJ |
| Anti-jamming | Strengthened Anti-jamming |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5 m |
| The manual |
|
2. Speed Limiter General Requirements
Ethiopia Standard Truck Speed Limiter Car Governor with Free GPS Tracking System
- The speed limiting function shall be performed progressively in such a mariner that excessive juddering or discomfort is not caused;
- All components necessary for full function of the speed limiter or the Speed limiter device shall be energized whenever the vehicle is being driven;
- . For the purpose of anti-tampering of the setting of the "set speed" of a speed limiter device, the connection points on a speed limiter device for adjustment of "set speed" shall be properly sealed and protected from unauthorized adjustment;
- Speed limiter device shall be so designed, constructed and assembled and fitted to the vehicle to make it maximum tamper proof and fail safe, against various factors such as disconnection / failure of various components e.g. power supply, speed sensor, mechanical actuator system, linkages etc. or any unauthorized modification and adjustment to the system;
- All speed limiter device system shall able to be checked for accuracy and functionality;
- The speed limiter device system shall be able to be verified. Authenticated and tested whilst the vehicle is "on" the road.
- Speed limiter devices shall be calibrated and maintained in a good working order; and capable to limit the speed of a vehicle at the set speed as stipulated by the regulatory body.
Ethiopia Standard Truck Speed Limiter Car Governor with Free GPS Tracking System
- Road speed limiting device shall have a users and technical's manual, both written in English/Amharic ;
- The recorder shall incorporate a combination of an onboard and off-board mechanism for recording and storing the speed of the vehicle;
- The speed shall be recorded in Km/h at not more than five seconds interval;
- The retrieved data shall clearly and in an unambiguous manner display the date (dd Imm Iyyyy) of recording.
3 Application Field:
- For School Bus ;
- For tour bus and passenger car management ;
- For logistics vehicle monitoring and management ;
- For tank truck monitoring and management.
- For limit the speed of vehicles
4 Parts list:
Power wire
Executor wire
Buzzer (optional)
GPS Antenna
GSM Antenna
SIM Card Slot
Bluetooth printer
Bluetooth antenna
