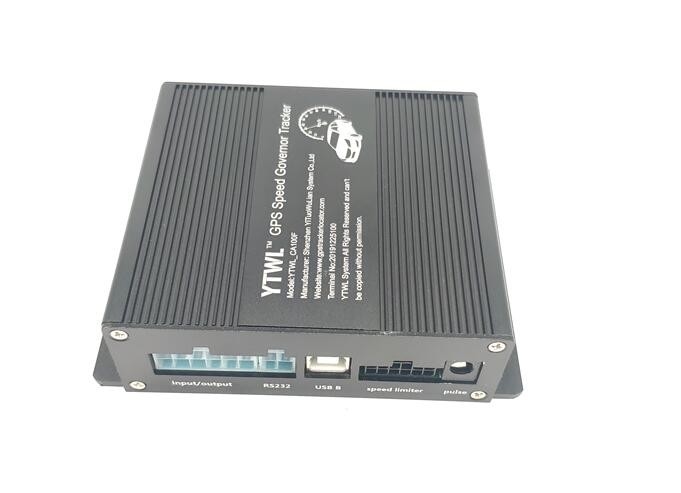

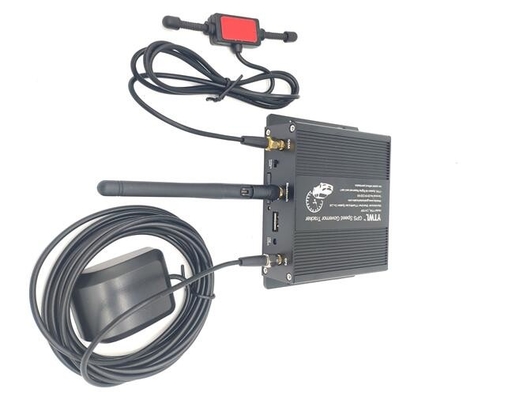

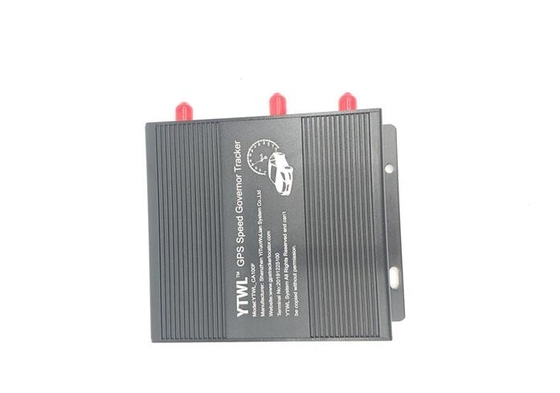

Steel Electronic Speed Governor GSM GPS Vehicle Speed Limiter ARM Processing Chip

Steel Electronic Speed Governor GSM GPS Vehicle Speed Limiter ARM Processing Chip
Steel Electronic Speed Governor GSM GPS Vehicle Speed Limiter ARM Processing Chip Steel Electronic Speed Governor GSM GPS Vehicle Speed Limiter ARM Processing Chip Steel Electronic Speed Governor GSM GPS Vehicle Speed Limiter ARM Processing Chip

Large Image :  Steel Electronic Speed Governor GSM GPS Vehicle Speed Limiter ARM Processing Chip Get Best Price

Product Details:
Place of Origin: China
Brand Name: cartrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA100F
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 100,000pcs per month
Detailed Product Description
Product Name: CA100F Speed Limiter Processing Chip: ARM
Alert: Overspeed Alert Operating Humidity: 20%--90%
Product Accessory:: Extension Wire Material: Steel
Function: Controlling Speed, Vehicle Speed Limiter Net Weight: 0.24 KG
High Light:

vehicle gps tracking device

,

car gps tracker device



Ethiopia Standard Electronic Speed Governor GSM GPS Vehicle Speed Limiter



1. Performance Tests

All the four samples shall be tested for performance as prescribed in clauses below.

  1. The speed limiter shall be visually examined for workmanship, finish, marking and general requirements mentioned in clause 4 pertaining to the components alone.
  2. The speed limiter shall be connected to the rated voltage. The speed limiter device shall be coupled to a suitable test rig and tested for its function viz. limiting the speed at the set value. The maximum current consumption is noted. The maximum
    current of each type of speed limiter device shall not exceed the values specified by the manufacturer.
  3. The speed limiter shall operate satisfactorily over the following voltage:
Rated voltage of speed limit of voltage limiter performance limit of voltage
maximum minimum
24 32 22
12 16 11
6 10 4



2 Product Specifications



Color Black Application free android and IOS app
Input Fuse 5A CPU TI:MSP430F5419(100MHz)
Battery Lithium battery :400mA( working time is about 3.5 hours) Warranty 2 years
Item Name Top selling shine Function camera gps fleet tracker
Working Temperature Anna Shi MOQ 5 Pieces
GSM Module GSM Module:SIM5320
Band:850/900/1800/1900/2100MHz,
Tally with: GSM phase 2/2+
-Class 4 (2W @ 850/900MHz)
-Class 1 (1W @ 1800/1900MHz)
Max RF Output: 33.0dBm±2dBm
Dynamic Input Range: -15 ~ -102dBm
Receiving delicacy: Class RBER≤2%(-102dBm)
Frequency Stability: > 2.5ppm
Max Frequency Deviation: ±0.1ppm
RMS Deviation: ≤5deg
GPS Module GPS chip set: SiRF Star III
Frequency: L1, 1575.42 MHz
Number of Channel: 20
Reacquisition: 0.1 sec, average
Hot boot: 2 sec., average
Warm boot: 38 sec., average
Cold boot: 44 sec., average
Altitude limit: 18000 m
Velocity limit: 515 m/s
Current Not working Current 16mA
working Current:60~150mA
Current of opening infrared of Camera at night :100~200mA
Charging current: Max<500mA
Input I/O 8 I/O input/output Port
1 main power check
1 port use to check the engine ( ACC check)
1 port use to SOS
1 analog Input port( Fuel sensor)
1 Output port ( Car engine control )
3 Extend ports ( Input/Output control by software)



























3. Speed Limiter GPRS requirement

Ethiopia Standard Electronic Speed Governor GSM GPS Vehicle Speed Limiter



  1. The device shall support hand held portable printer (Bluetooth, WiFi, etc) enabled;
  2. The speed limiter function or road speed limiter shall not interfere with the brake system of the vehicle;
  3. The speed limiter function or road speed limiter shall be EMCcompatible or shall have Anti-Jammer mechanism;
  4. Speed limiter devices shall be so constructed that the vehicle may not be accelerated by the operation of the acceleration devices, such as the accelerator pedal, when the vehicle is running at its set speed;
  5. The speed limiter function or the speed limiter device shall allow normal accelerator control for the purpose of gear changing;
  6. The road speed limiter device shall allow normal acceleration and full engine power up to the set maximum speed limit when the limitation function comes to play.



Ethiopia Standard Electronic Speed Governor GSM GPS Vehicle Speed Limiter

  1. Fixed maximum speed limiting: Set a maximum speed according to the actual needs of vehicles. For example: if you require the vehicle speed does not exceed 60Km/h (or other appointed speed), the product will strictly control the vehicle speed does not exceed 60 Km/h (or other appointed speed) ;
  2. GPS speed data collection data collection ;
  3. Vehicle pulse speed ;
  4. Digital display controller adjustment.





4. Technical Parameters:

Ethiopia Standard Electronic Speed Governor GSM GPS Vehicle Speed Limiter



Item Parameters
Overall Size 20.0 X 9.2 X 4.5 CM
Host Net Weight 0.4 KG
Processing chip STC
Speed Limiting Zone 20-200 Km/H
Speed Limiting Deviation ±5Km/H
Mechanical Bearing Capacity 400N
Working Voltage 9-36 V
Rated Power Consumption <0.3 W
Working Current <60 mA




5  Application Field:

  1. For large vehicle management and dispatching system ;
  2. For tour bus and passenger car management ;
  3. For logistics vehicle monitoring and management ;
  4. For tank truck monitoring and management.
  5. For limit the speed of vehicles

Steel Electronic Speed Governor GSM GPS Vehicle Speed Limiter ARM Processing Chip 0Steel Electronic Speed Governor GSM GPS Vehicle Speed Limiter ARM Processing Chip 1
