Product Name: CA100F Speed Limiter Application: Buses Trucks Forklifts
Alert: Overspeed Alert Speed Limiting Zone: 20-200 Km/H
Speed Limiting Deviation: ±5Km/H Yellow Line A+: Input(close To The Accelerator Pedal )
Green Line A-: Input(close To The Accelerator Pedal ) Brown Line B+: Output(close To The ECU)
White Line B-: Output(close To The ECU)

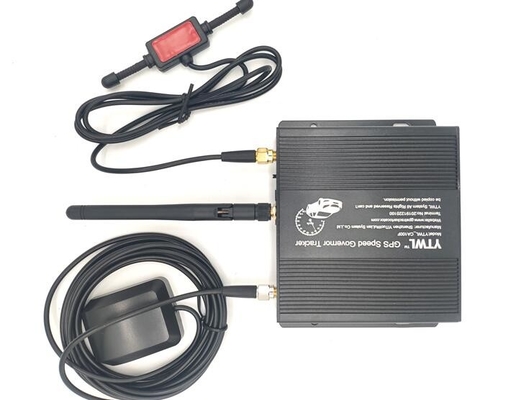

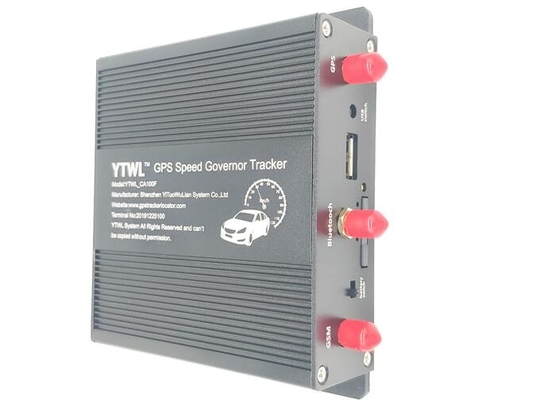

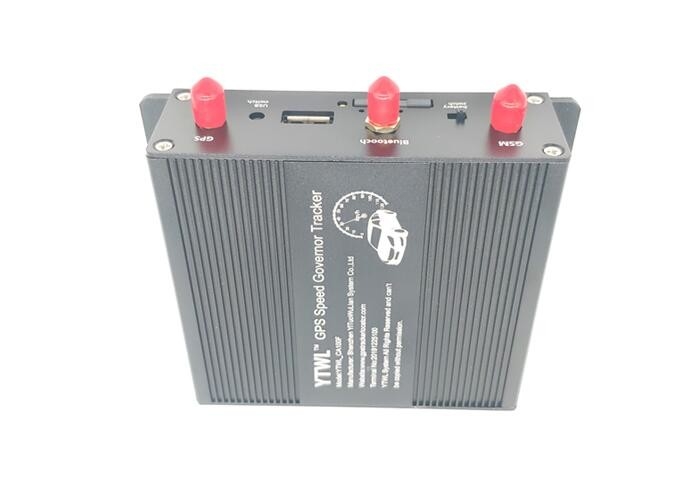

Speed Limiter With Ethiopia Standard GPS Tracking Device Three In One Auto Track





1 Product Function:

  1. Suitable for electronic and mechanical throttle speed limit.
  2. Tachometer signal is real-time measurement through GPS signal, accurate speed.
  3. Two levels of overspeed setting. Over different levels of speed will have different voice prompts.
  4. Remote control function. Use remote controller to set parameters within 1 meter.
  5. Voice alarm function.
  6. 8 volume ranges.

Electronic Throttle Vehicle Speed Limiter


2. Technical Parameters:

Speed Limiter In Kenya With GPS Tracking Device Three In One Auto Track



  1. Functions Vehicle speed limiter without GPS Vehicle Speed Limiter with GPS

    Speed parameter setting (use remote controller)



    Automatically learning(automatically get the pulse number of vehicle driving 10 meters from the start point to the end point)

    GPS speed detection

    No need to do this step

    Manually learning(use remote controller to enter the pulse number)
    Speed parameter setting (use remote controller) First level: overspeed alarm prompt
    Second level: voice alarm+speed limit
    Speed limit function Electronic speed limit: when the current speed is over the 2nd level of speed preset, and over 1 second, it will be in speed limit status until less than the 2nd level speed.
    Mechanical speed limit: when the current speed is over the 2nd level of speed preset, and over 1 second, at this time, system will force to limit speed, throttle controller will pull the throttle position to the start position in reverse. Then the driver cannot accelerate until the speed is less than the 2nd level speed.
    Reverse alarm/ Left turn/ Right turn voice prompt Remind you to be careful when backing up or turn left or turn right(connect high/low l level signal, setting by remote controller )
    Restore factory settings Use remote controller to set



3  The Mechanical Actuator



For the Electronic throttle ( EFI ) vehicles , no need add mechanical actuator, the limiter will simulate the voltage value of the vehicle throttle sensor, when the vehicle is over speed, The limiter will give ECU a idle voltage value, ECU will control the throttle according to this voltage value. When the vehicle is in normal driving state(not over speed), the speed limiter will not interfere the vehicle speed. The throttle sensor will give ECU normal driving voltage, let the vehicle keeping normal driving.





Speed Limiter With Ethiopia Standard GPS Tracking Device Three In One Auto Track



4  At first, we adjust the voltage value of the brown wire to the low value we measured form the accelerator pedal signal wire. ( The value of the actual measured voltage prevail. ) Then we adjust the voltage value of the white wire to the high value we get form the accelerator pedal signal wire. ( The value of the actual measured voltage prevail. )

Then , we can dot a little red glue onto the adjustable knobs to fix it, in order to prevent the adjustable knobs may appear small rotation in the long vehicle driving.

① Then , we connect the yellow, brown, green ,white wires to the original signal wire of the vehicle.

At first, we cut off the low voltage accelerator pedal signal wire. Connect the wire end which is close to the accelerator pedal to the yellow wire of the speed limiter . Connect the rest wire end to the brown wire of the speed limiter. Now it is turn to the other high voltage accelerator pedal signal wire, we also cut it off, Connect the wire end which is close to the accelerator pedal to the green wire of the speed limiter. Connect the rest wire end to the white wire of the speed limiter.



② We place the speed limiter into the steering room.

③ Find the ACC wire of the vehicle ( it is in the key head, power on when open the key , power off without the key. ) We connect the ACC wire ( green line with black strips ) of the limiter host to the vehicle ACC wire.

④ Find the signal wire of Left-turn indicator and right-turn indicator. Connect the blue wire of the limiter to the signal wire of Left-turn indicator. Connect the orange wire of the limiter to the signal wire of right-turn indicator.

⑤ If the vehicle has it own speed sensor , we find the signal wire of this original vehicle speed sensor ( normally it is behind the the mile-meter), and connect the gray wire of the limiter to this vehicle original speed signal wire.

If the vehicle dose not have its own speed sensor, we add a speed sensor for it, and connect the gray wire of the limiter to the speed signal wire of this speed sensor. Please note that most of the vehicles have the original speed sensor, only a few old vehicles do not have it.

⑥ Connect the red wire with fuse of the speed limiter to the vehicle long power supply in the steering room.

⑦ Connect the black wire with fuse of the speed limiter to any steel part of the vehicle( Ground Treatment).

⑧ Now all the wires have been connected well , Please check all the circuits and fix well.

⑨ Recover all parts , close the dash board , Done!



4  Connection Diagram for Mechanical throttle



Speed Limiter With Ethiopia Standard GPS Tracking Device Three In One Auto Track



The Specific install Steps:

① Place the limiter host.

The limiter host can be installed in steering room ,a place will not not affect the driver operating. Please pay attention to fix it well, make the lines routing as hidden as possible.

② Install the limiter actuator and connect its drawing cable to vehicle throttle cable.

At first, we connect the actuator power line well, turn on the power, the actuator will spit its steel cable automatically , turn off the power until the cable completely spit out.

Then please step the accelerator pedal to the end state. Make the pull head of the actuator cable pass through the engine throttle control lever. Then cut off the excess portion, fixed the cable head well, make the drawing direction of the limiter steel cable and vehicle throttle cable negative, then fix the limiter well, there is a mounting bracket on the limiter body. Please install it in a appropriate position onto the vehicle with screws.





3) The Installation Test Method:

① Start the vehicle normally, stepped on the accelerator pedal, to check if the refueling is in normal state.If OK ,it means installation well,otherwise failure.

② In the refueling process, slide the switch (which is on the PCBA board) to the “close” end, then step on the accelerator pedal, if fueling is failure, it means the installation is successful, otherwise failure.

③ Wait about 3-4 seconds, then slide the switch (which is on the PCBA board) to the “broke” end, then step on the accelerator pedal, if you find refueling is in normal state, it means the installation is successful, otherwise failure.

Note: the above test process should not appear the phenomenon of stalling or automatic fueling. If appears, it means some problems exist.

if the test situation are the same with the above description, we preliminary estimate the connection and the adjusted idle voltage is right. To ensure the 100% right installation, we suggest that the driver take actual road driving test.



1. We provide web tracking system, Android APP and IOS App free
2. Our device can send data to your own server, we will provide SDK and API for integrate (sample source code:C/C++,Java,C#)
3. we will install the tracking system into your server if you have the own server
4. We provide OEM and ODM services, it is free if you only add logo and company name
5. Warranty: 24-month



Speed Limiter With Ethiopia Standard GPS Tracking Device Three In One Auto Track



6  Application Field:

  1. Applied in bus speed limit (taxi, driver-training car, coach, school bus, city bus, inter-city bus, logistics carrier vehicle, etc.), engineering vehicles, factory transport vehicle speed limit (truck, lorry, oil tank truck, road roller, dump truck, excavator, dangerous goods transport vehicle, mixer truck, etc.).
