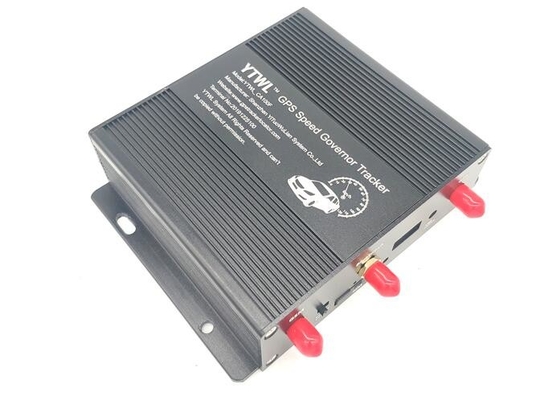

Ethiopia Standard YTWL_CA100F GPS Speed Limiter For Trucks klifts And All Cars

China Ethiopia Standard YTWL_CA100F GPS Speed Limiter For Trucks klifts And All Cars supplier
Ethiopia Standard YTWL_CA100F GPS Speed Limiter For Trucks klifts And All Cars supplier Ethiopia Standard YTWL_CA100F GPS Speed Limiter For Trucks klifts And All Cars supplier Ethiopia Standard YTWL_CA100F GPS Speed Limiter For Trucks klifts And All Cars supplier

Large Image :  Ethiopia Standard YTWL_CA100F GPS Speed Limiter For Trucks klifts And All Cars

Product Details:

Place of Origin: China
Brand Name: caxtrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA100F

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 100,000pcs per month
Contact Now
Detailed Product Description
Product Name: CA100F Speed Limiter Application: Buses Trucks Forklifts
Alert: Overspeed Alert Processing Chip: STC
Operating Humidity: 20%--90% Product Accessory:: Extension Wire
Warranty Time: One Year Transportation: Air Transportation
Original: China Color: Blacking
Item Name: Elevator Speed Governor



Ethiopia Standard YTWL_CA100F GPS Speed Limiter For Trucks klifts And All Cars



1. Specific requirement

The system shall function normally when connected to a power supply in the range (6/12/24V)OC.

The power of speed limiter device shall full fill the requirement specified in table 1

Table 1.Power requirement

s.no Description requirement
1 input voltage 6-24v
2 working voltage 6-36v
3 back up battery hour minimum 4 hour
4 rated power dissipation up to 2W
Color Black Application free android and IOS app
Input Fuse 5A CPU TI:MSP430F5419(100MHz)
Battery Lithium battery :400mA( working time is about 3.5 hours) Warranty 2 years
Item Name Top selling shine Function camera gps fleet tracker
Working Temperature Anna Shi MOQ 5 Pieces
GSM Module GSM Module:SIM5320
Band:850/900/1800/1900/2100MHz,
Tally with: GSM phase 2/2+
-Class 4 (2W @ 850/900MHz)
-Class 1 (1W @ 1800/1900MHz)
Max RF Output: 33.0dBm±2dBm
Dynamic Input Range: -15 ~ -102dBm
Receiving delicacy: Class RBER≤2%(-102dBm)
Frequency Stability: > 2.5ppm
Max Frequency Deviation: ±0.1ppm
RMS Deviation: ≤5deg
GPS Module GPS chip set: SiRF Star III
Frequency: L1, 1575.42 MHz
Number of Channel: 20
Reacquisition: 0.1 sec, average
Hot boot: 2 sec., average
Warm boot: 38 sec., average
Cold boot: 44 sec., average
Altitude limit: 18000 m
Velocity limit: 515 m/s
Current Not working Current 16mA
working Current:60~150mA
Current of opening infrared of Camera at night :100~200mA
Charging current: Max<500mA
Input I/O 8 I/O input/output Port
1 main power check
1 port use to check the engine ( ACC check)
1 port use to SOS
1 analog Input port( Fuel sensor)
1 Output port ( Car engine control )
3 Extend ports ( Input/Output control by software)



























2 Recording and tracking

2.1. The recorder shall incorporate a combination of an onboard and off-board mechanism for recording and storing the speed of the vehicle.

2.2. The speed shall be recorded in Km/h at not more than five seconds interval.

2.3. The retrieved data shall clearly and in an unambiguous manner display the date

(dd Imm Iyyyy) of recording.

2.4. Each entry shall be time related (either 24 hour or 12 hour format).

2.5. Each entry shall capture global position coordinates.

2.6. The recorded data shall be in the same format for both the onboard and off board storage Systems

2.7. The minimum information of the data to be recorded and transmitted shall include the following:

a.Real-time online tracking on Fleet Management System (FMS) platform via GPRS and via Google Map link

b. Update position online by time interval and distance

c. History data recording including: Speed, License No., Odometer, Date & Time, Driver identification, physical address, telephone

d. Alarm for external power cut, low battery alarm, overspeed alarm, geo-fence alarm and out of operation time interval alarm

e. Speed limiter device report: Distance travelled, Last Position, Satellite photo, trip report, status report, tamper report, driving or operation time interval report

5.2.8. Memory capacity of the speed limiter device shall have a minimum capacity of saving 5,000 blind data.

5.2.9. The speed limiting system shall incorporate a mechanism for recording the speed of the vehicle of the last 24 hours, which speed shall be date (day, month and year) and time related.

5.2.10. Speed limiter device shall provide at minimum date (day, month and year) and time related, location and speed information

5.2.11. The speed limiting system shall store the data in a non erasable memory for at least 72 hours even if the power supply is disconnected.

5.2.12. Speed limiting system shall ensure data retrieve mechanism (without loss of data) at the point of inspection without using specialized equipment.

5.2.13. The retrieved data shall be in a format that the motor vehicle inspection officer will be able to understand without requiring the services of a speed limiter specialist.

5.2.14. Speed limiter device shall have ± 5km/hr speed accuracy tolerance.

5.2.15. The speed limiting system shall upload the data at not more than 60 seconds interval.

5.3. Speed Limiter GPRS requirement

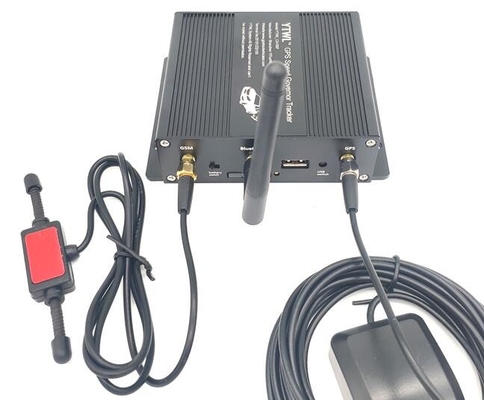

Ethiopia Standard YTWL_CA100F GPS Speed Limiter For Trucks klifts And All Cars



5.3.1. GPRS Of speed limiter shall have a minimum of Multi-slot Class 8 (4Rx, 1Tx, 5 slot Max.)

5.3.2. GPRS Of speed limiter shall Support at minimum four coding schemes (CS-1, CS 2, CS-3 and CS-4) download speed at least speed 85.6kbps upload speed is at least 21.4kbps

5.4. Positioning Accuracy of GPS shall be Less than 5 meters at 20 RMS

5.4.1. GSM Frequency of the speed limiter GPS shall be based on national telecommunication requirement.

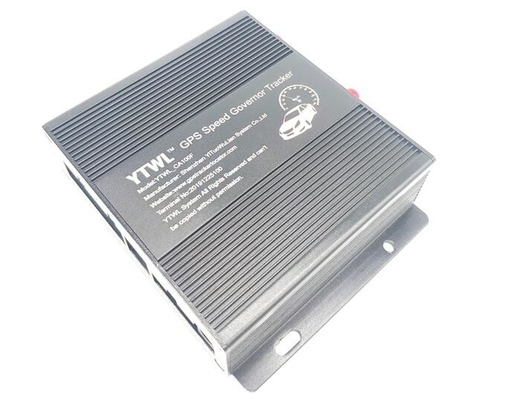

Ethiopia Standard YTWL_CA100F GPS Speed Limiter For Trucks klifts And All Cars

  1. Fixed maximum speed limiting: Set a maximum speed according to the actual needs of vehicles. For example: if you require the vehicle speed does not exceed 60Km/h (or other appointed speed), the product will strictly control the vehicle speed does not exceed 60 Km/h (or other appointed speed) ;
  2. GPS speed data collection data collection ;
  3. Vehicle pulse speed ;
  4. Digital display controller adjustment.



Ethiopia Standard YTWL_CA100F GPS Speed Limiter For Trucks klifts And All Cars





3. Technical Parameters:



Kenya Speed Limiter With GPS GPRS Functions For Trucks Forklifts

Item Parameters
Overall Size 20.0 X 9.2 X 4.5 CM
Host Net Weight 0.4 KG
Processing chip STC
Speed Limiting Zone 20-200 Km/H
Speed Limiting Deviation ±5Km/H
Mechanical Bearing Capacity 400N
Working Voltage 9-36 V
Rated Power Consumption <0.3 W
Working Current <60 mA


4  The Mechanical Actuator





For the Electronic throttle ( EFI ) vehicles , no need add mechanical actuator, the limiter will simulate the voltage value of the vehicle throttle sensor, when the vehicle is over speed, The limiter will give ECU a idle voltage value, ECU will control the throttle according to this voltage value. When the vehicle is in normal driving state(not over speed), the speed limiter will not interfere the vehicle speed. The throttle sensor will give ECU normal driving voltage, let the vehicle keeping normal driving.


We can find two adjusting knobs on the PCBA board. We take a screwdriver insert into the small knobs, screw it, then we can adjust the voltage of this two wires.



5  Application Field:

  1. For large vehicle management and dispatching system ;
  2. For tour bus and passenger car management ;
  3. For logistics vehicle monitoring and management ;
  4. For tank truck monitoring and management.
  5. For limit the speed of vehicles

Ethiopia Standard YTWL_CA100F GPS Speed Limiter For Trucks klifts And All Cars
