Product Details:
Payment & Shipping Terms:
|
| Product Name: | YTWL_CA100F Speed Limiter | Network: | GPRS GSM |
|---|---|---|---|
| Band: | 850/ 900/1800/1900MHz | Application: | Buses Trucks Forklifts |
| Work Voltage: | DC12V-DC36V | LED Indicator: | 4G(blue), GPS(green), Power(red) |
| Processing Chip: | STC | Speed Limiting Deviation: | ±5Km/H |
| Type: | Speed Governor | Product Name: | Elevator Speed Governor,Overspeed Governor |
| Warranty Time: | One Year | Transportation: | Air Transportation |
| Material: | Stainless Steel(Hairline/Mirror/Painted/Etching)/Rose Gold/Titanium | ||
| High Light: | vehicle gps tracking device,car gps tracker device |
||

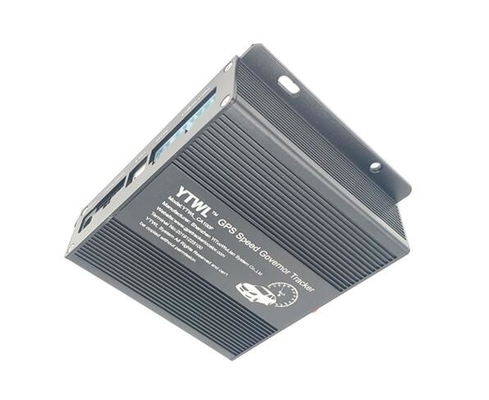

Ethiopian Standard Speed limiter With Bluetooth Printer Speed Governor ES6413:2019
1. Product Brief:
The vehicle speed limiter CA100F is a vehicle terminal device can make accurate and intelligent vehicle speed Limiting. It can judge the vehicle speed by vehicle pulse speed data and GPS speed data precisely, and control the vehicle speed by intervening the throttle valve opening size.The user can set the speed limit value through the external digital display controller .
The product adopts intelligent STC chip, with high control precision, stable and reliable, will not affect the starting throttle, not affect the dynamic torque, only limit the maximum speed of the vehicle, control the throttle valve but will not lead to stalling, can ensure the throttle pedal can move freely in the allowable speed zone. It is a powerful and efficient intelligent vehicle safety products.
2. Product Function:

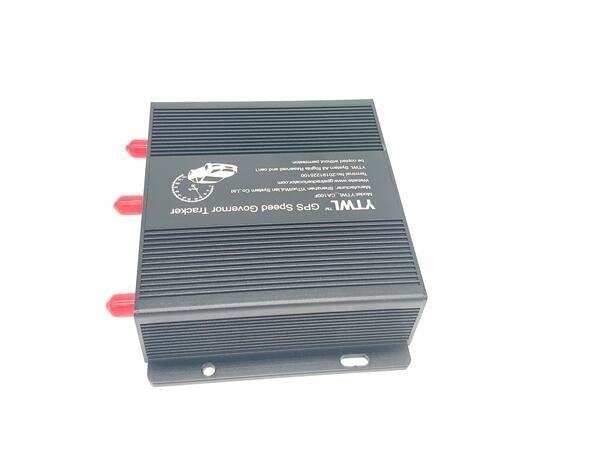

Ethiopian Standard Speed limiter With Bluetooth Printer Speed Governor ES6413:2019
3. Technical Parameters:
Ethiopian Standard Speed Governor ES6413:2019 With Bluetooth Printer GPS Speed Limiter
| Item | Parameters |
| Overall Size | 20.0 X 9.2 X 4.5 CM |
| Host Net Weight | 0.4 KG |
| Processing chip | STC |
| Speed Limiting Zone | 20-200 Km/H |
| Speed Limiting Deviation | ±5Km/H |
| Mechanical Bearing Capacity | 400N |
| Working Voltage | 9-36 V |
| Rated Power Consumption | <0.3 W |
| Working Current | <60 mA |
4 The Mechanical Actuator
For the Electronic throttle ( EFI ) vehicles , no need add mechanical actuator, the limiter will simulate the voltage value of the vehicle throttle sensor, when the vehicle is over speed, The limiter will give ECU a idle voltage value, ECU will control the throttle according to this voltage value. When the vehicle is in normal driving state(not over speed), the speed limiter will not interfere the vehicle speed. The throttle sensor will give ECU normal driving voltage, let the vehicle keeping normal driving.
5 The Electronic throttle ( EFI ) Vehicle Speed Limiter Installation Steps
Specific Installation Steps:
(Take the truck speed limiter installation as an example)
① Take apart the protective shell which is beneath vehicle steering wheel, open the dashboard with tools, the speed limiter will be placed in this steering room.
② Find the vehicle accelerator pedal wires harness at first ,then find the two signal wires from the wires with multimeter test.
There are six wires in the accelerator pedal interface , two power wires ,two ground wires, and two signal wires. Start the vehicle, step on the accelerator pedal, let the vehicle in idle state, then the signal wire voltage value will change, thus you can find the signal wires.
After find the signal wires, please record the voltage value and make marks on the two wires , It will be convenient with the next step.
(Generally, the voltage value of the accelerator pedal signal wires is about 2 times of the other wire, and the low voltage is about 0.4V, and the high voltage is about 0.7V.)
③ Next, we set the voltage value of the brown wire and the white wire of the speed limiter to the value what we test from the vehicle accelerator pedal signal wire.
How to adjust the voltage value? At first, make the speed limiter power on, then take off the case cover of the speed limiter, slide the switch on the PCBA board to the "close" end, then we use the multimeter to measure the voltage value of the brown wire and the white wire. After adjusting the voltage, we need slide the switch back to the "broke" end.
6.We can find two adjusting knobs on the PCBA board. We take a screwdriver insert into the small knobs, screw it, then we can adjust the voltage of this two wires.

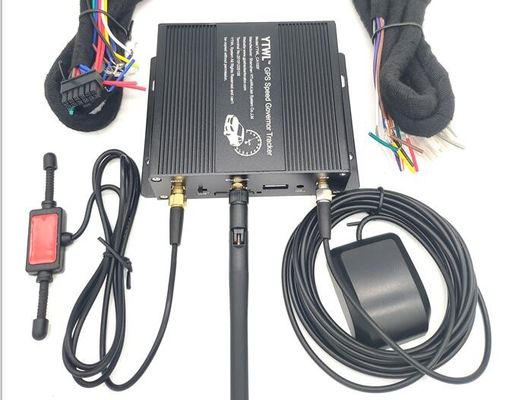

Ethiopian Standard Speed limiter With Bluetooth Printer Speed Governor ES6413:2019
7 Application Field:
